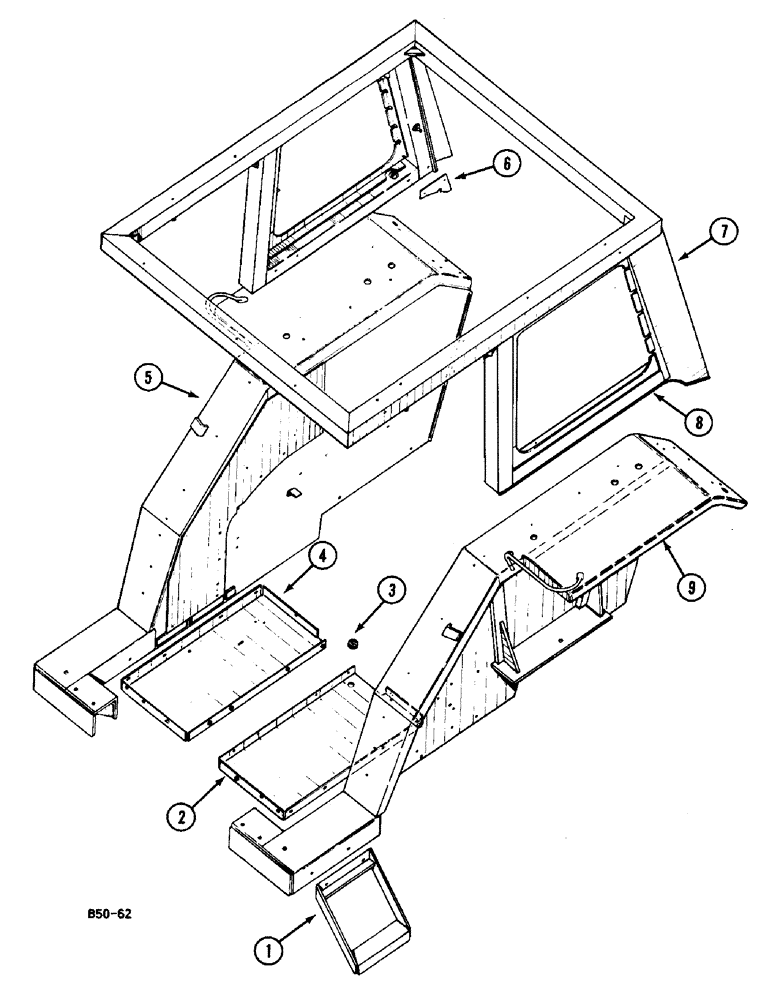

Запчасти Case IH 248 (9-880) - SAFETY FRAME, VERSION WITH CAB (09) - CHASSIS

1

3116153R2

STEP

2шт.

NLS

NO LONGER SERVICED

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

4шт.

2

3116149R3

PLATFORM

ASSEMBLY, left

1шт.

3112992R1

NUT

6шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

6шт.

120394

WASHER,3/8", SAE

6шт.

3

3116180R1

GROMMET

1шт.

4

3116150R6

PLATFORM

ASSEMBLY, right

1шт.

3112992R1

NUT

6шт.

NLS

NO LONGER SERVICED

5шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

6шт.

120394

WASHER,3/8", SAE

6шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

5

3121998R1

FENDER

FENDER ASSEMBLY, right

1шт.

6

3121996R1

FILLER

SPARE PART

2шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

optional

4шт.

7

1281848C91

FRAME

ASSEMBLY, models 258, 285, 485, 585 tractor

1шт.

24894R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

3112951R1

NUT

9шт.

7

1281848C91

FRAME

ASSEMBLY, for version with low profile roof, models 385, 485, 585 tractor

1шт.

8

1265291C1

STRIP

SEAL, bulk length

1шт.

9

3121997R1

FENDER

FENDER ASSEMBLY, left

1шт.

3125820R1

SLEEVE

not illustrated

2шт.
