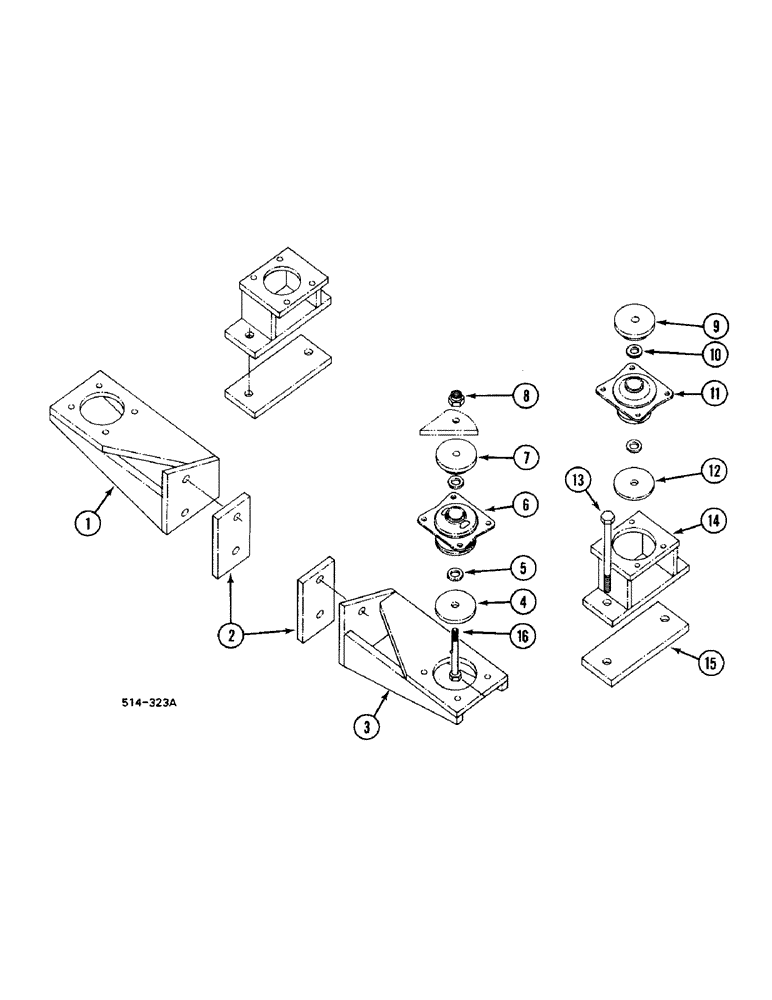

Запчасти Case IH 248 (9-878) - CAB MOUNTINGS (09) - CHASSIS

1

3116138R1

SUPPORT ASSY.

front, RH

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

2

3116145R1

PLATE

2шт.

3

3116137R1

SUPPORT ASSY.

front, LH

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

4

3116148R1

WASHER

2шт.

5

3048473R1

WASHER

4шт.

6

3116146R91

RUBBER MOUNTING

front

2шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

8шт.

3063560R1

LOCK NUT

8шт.

7

3116801R1

CUP WASHER

2шт.

8

3100765R1

NUT

5/8 inch

4шт.

9

3116801R1

CUP WASHER

2шт.

10

3048473R1

WASHER

4шт.

11

1502231C91

RUBBER MOUNTING

rear

2шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

8шт.

3063560R1

LOCK NUT

8шт.

12

3116148R1

WASHER

2шт.

13

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

BOLT, 5/8 x 8 inch

4шт.

102639

NUT,5/8"-11, G5

4шт.

103323

LOCK WASHER,1/2"

4шт.

14

91861C1

SUPPORT

rear

2шт.

15

3116143R2

PLATE

2шт.

16

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-3/4 inch

4шт.
