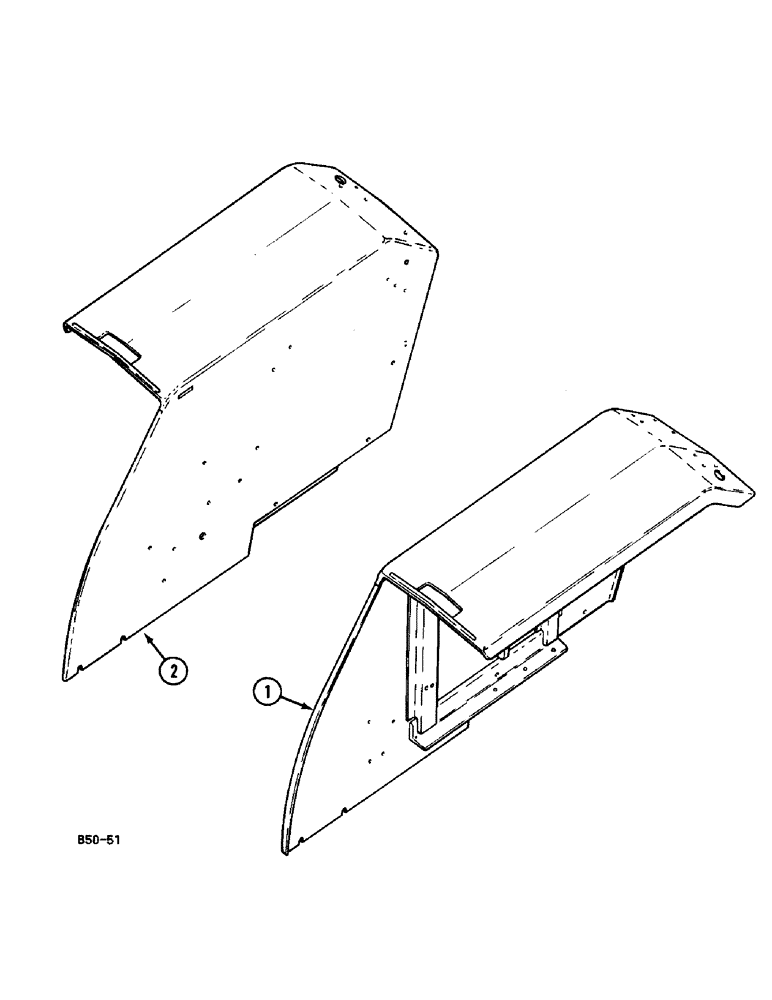

Запчасти Case IH 248 (9-858) - REAR FENDERS - FLAT TOP - (09) - CHASSIS

1

3123090R4

MUD DEFLECTOR

FENDER ASSEMBLY, models 248, 385, 485 tractor

1шт.

1

3123100R4

MUD DEFLECTOR

FENDER ASSEMBLY, left, model 258 and 585 tractor

1шт.

2

3123091R4

FENDER ASSY.

models 248, 385, 485 tractor

1шт.

2

3123101R4

MUD DEFLECTOR

FENDER ASSEMBLY, right, model 258 and 585 tractor

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

Models 248, 258, 385, 485 tractor

4шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

Model 585 tractor

6шт.

80681

LOCK WASHER,5/16"

6шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

BOLT, models 248, 258, 385, 485 tractor

2шт.

120376

NUT,5/16"-18, G5

Rear top cover, Model 585 tractor

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

Transmission housing or draft housing control

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT

4шт.

116121

LOCK WASHER,1/2"

Axle carrier

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Model 585 tractor

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

Parking brake bracket

3шт.

531625R1

GROMMET

model 585 tractor, not illustrated

2шт.

3112888R1

PLUG

blanking, plough light, 13 mm, model 585 tractor, not illustrated

1шт.

3125820R1

SLEEVE

not illustrated

8шт.

3113657R1

PLUG

blanking, model 585 tractor, not illustrated

4шт.

3113430R1

PLUG

blanking, model 585 tractor, not illustrated

5шт.

99964C1

PLUG

not illustrated

6шт.
