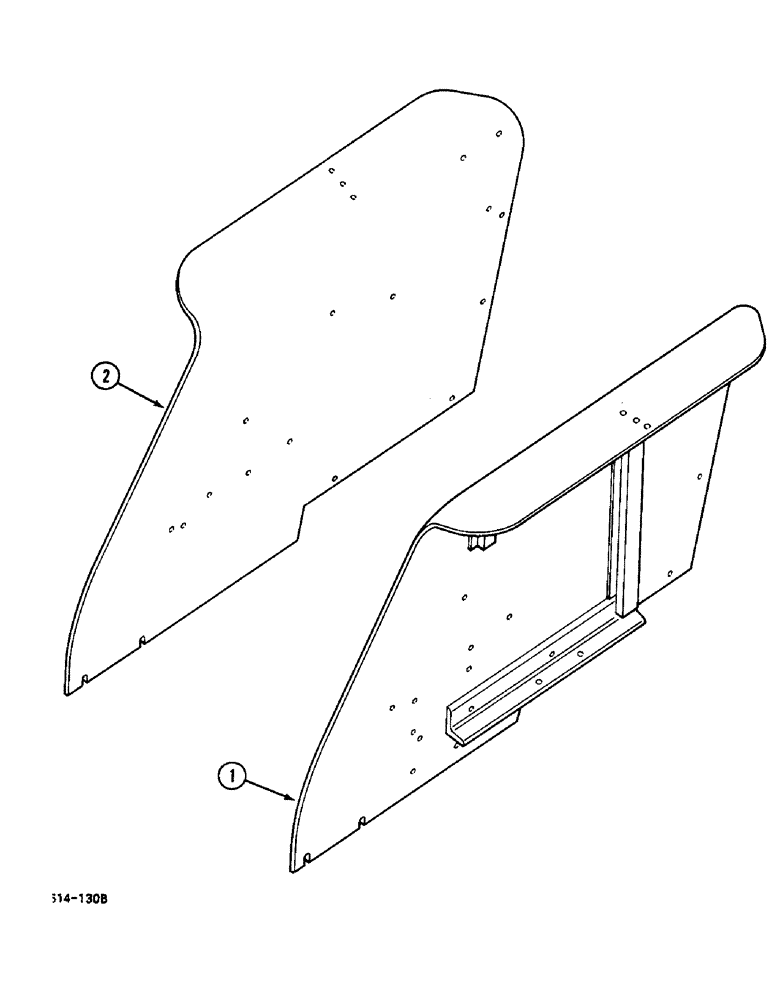

Запчасти Case IH 248 (9-854) - REAR FENDERS - CROWN TYPE, 385, 485, 585 (09) - CHASSIS

1

538639R3

FENDER ASSY.

model 385 and 485 tractor

1шт.

1

538641R4

FENDER ASSY.

left, with product graphic, model 585 tractor

1шт.

2

530002R6

FENDER ASSY.

model 385 and 485 tractor

1шт.

2

530015R8

FENDER ASSY.

right, model 585 tractor

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

Rear top cover

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

Transmission housing or draft housing control

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT

4шт.

116121

LOCK WASHER,1/2"

Axle carrier

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

Parking brake bracket

3шт.

3113657R1

PLUG

blanking, not illustrated

4шт.

3113430R1

PLUG

blanking, side, tail light, not illustrated

5шт.

3112888R1

PLUG

blanking, 13 mm, not illustrated

1шт.

531625R1

GROMMET

not illustrated

2шт.

3125820R1

SLEEVE

not illustrated

3шт.
