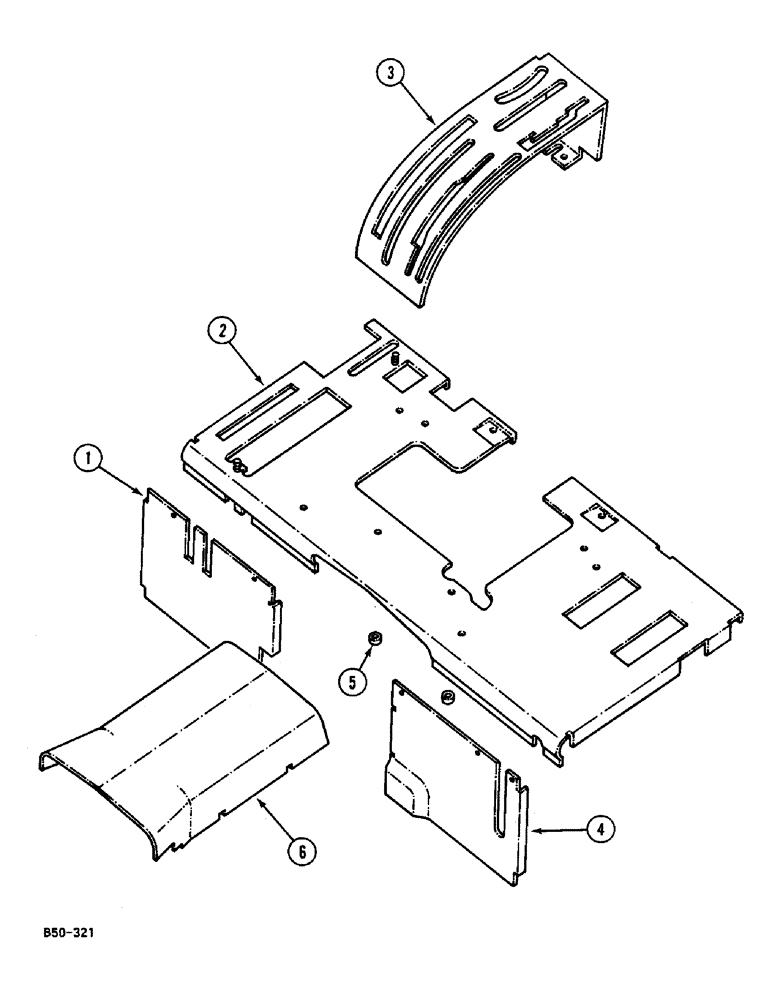

Запчасти Case IH 248 (9-844) - REAR PANELS - SYNCHROMESH -, VERSION WITHOUT CAB (09) - CHASSIS

1(a)

94161C1

PROTECTION PLATE

CHANNEL ASSEMBLY, right

1шт.

1(b)

527858R3

CHANNEL

ASSEMBLY

1шт.

3109296R1

3шт.

2(a)

99656C2

PLATFORM ASSY.

1шт.

2(b)

3129233R1

COVER ASSY

1шт.

120368

NUT,5/16"-24, G5

5шт.

80681

LOCK WASHER,5/16"

5шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

3

529457R61

COVER ASSY

1шт.

3

1331007C1

HOUSING

COVER ASSEMBLY

1шт.

3

3121558R2

COVER ASSY

for 4 wheel drive tractors

1шт.

3

1331009C1

HOUSING

SPARE PART for 4 wheel drive tractors, models 258, 485, 585 tractor

1шт.

3121579R1

SPACER

PLATE, model 258 and 585 tractor

1шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

Model 258 and 585 tractor

3шт.

131142

LOCK WASHER,3/4"

Model 258 and 585 tractor

3шт.

4

528638R2

PROTECTION PLATE

CHANNEL ASSEMBLY, left

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

5

401941R1

SPACER

2шт.

6

66290C1

COVER

ASSEMBLY

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

4шт.

3125820R1

SLEEVE

not illustrated

6шт.

1265283C1

STRIP

SPARE PART rubber, bulk length, not illustrated

1шт.
