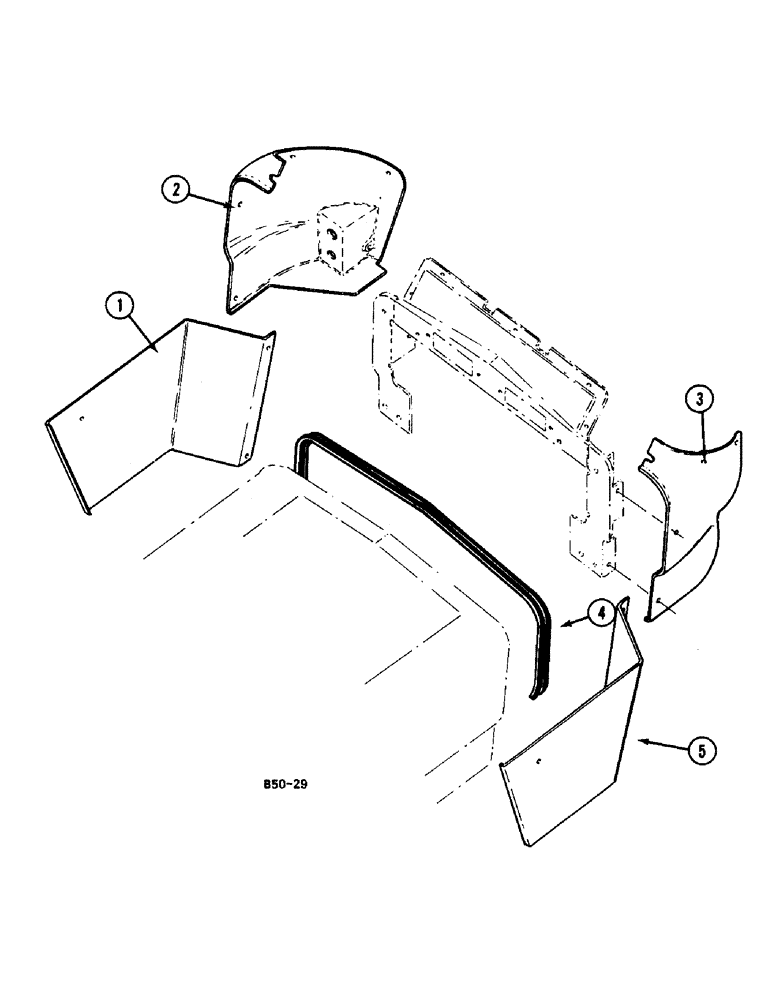

Запчасти Case IH 248 (9-838) - INSTRUMENT PANEL SIDE HOUSING, VERSION WITHOUT CAB (09) - CHASSIS

1

3121638R1

GUARD

PANEL lower, RH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

3шт.

2

3121714R3

HOUSING

model 248 and 258 tractor

1шт.

2

3121712R3

HOUSING

upper, RH, models 385, 485, 585 tractor

1шт.

3121715R1

SPRING NUT

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.

3144406R1

PLUG

1шт.

3

3121713R1

HOUSING

HOUSING, model 248 and 258 tractor

1шт.

3

3121711R3

HOUSING

upper, LH, models 385, 485, 585 tractor

1шт.

3121715R1

SPRING NUT

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.

3114406R1

PLUG

blanking

1шт.

4

3121645R1

SEALING STRIP

STRIP protection, 45 M, bulk length

1шт.

5

3121637R1

GUARD

PANEL, lower, LH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

3шт.

1135278R1

PRODUCT GRAPHIC

not illustrated

1шт.

1135279R1

PRODUCT GRAPHIC

not illustrated

1шт.

5

3112888R1

PLUG

blanking, 13 mm

1шт.
