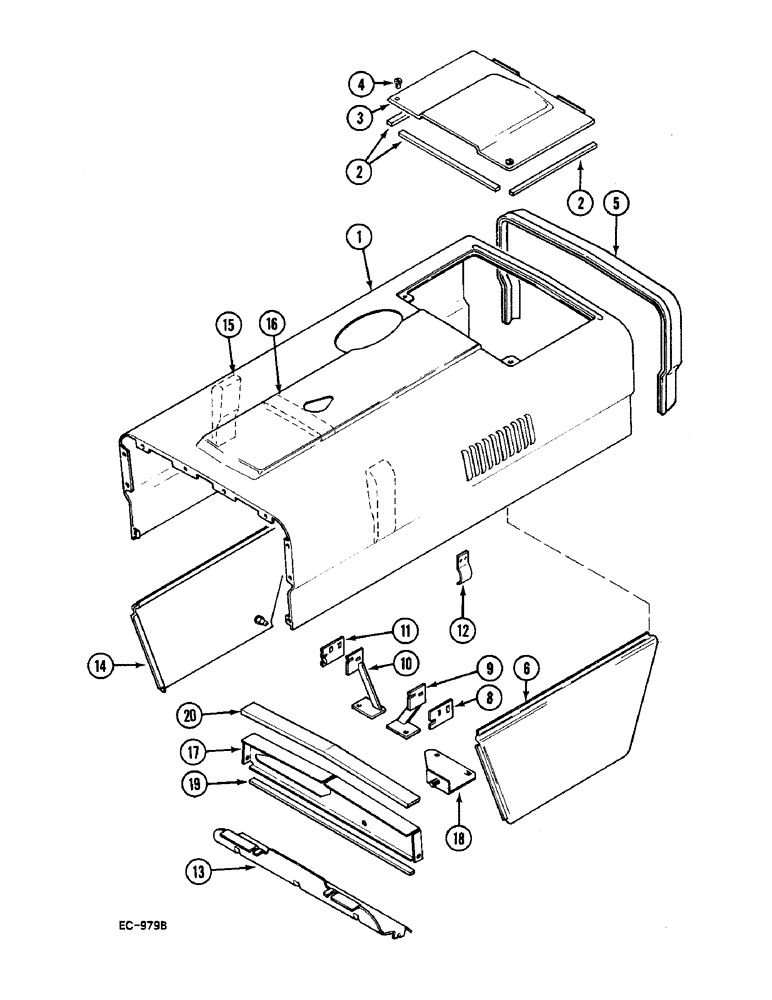

Запчасти Case IH 248 (9-832) - HOOD AND PANELS (09) - CHASSIS

1

94192C92

ENGINE HOOD

models 248, 385, 485 tractor

1шт.

1

94188C91

HOOD ASSY.

version with muffler, model 258 and 585 tractor

1шт.

1

94216C91

HOOD ASSY.

models 248, 385, 485 tractor

1шт.

1

94212C91

HOOD ASSY.

version without muffler, model 258 and 585 tractor

1шт.

1

94200C91

ENGINE HOOD

version with oil bath air cleaner, model 585 tractor

1шт.

1(a)

99621C91

HOOD ASSY.

for four wheel drive tractors, model 485 tractor

1шт.

1(a)

94190C91

HOOD ASSY.

version with muffler, for four wheel drive tractors, model 585 tractor

1шт.

1(a)

99623C91

HOOD ASSY.

version without muffler, for four wheel drive tractors, model 485 tractor

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

1502286C1

NUT

5/16 inch

2шт.

98778C1

BOLT

2шт.

98775C1

WASHER

5/16 inch

2шт.

2

1265282C1

STRIP

bulk length

1шт.

3

3121393R91

COVER ASSY

1шт.

4

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

2шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

optional

2шт.

376787R1

WASHER

2шт.

5

1265280C1

SEAL

bulk length

1шт.

6

94407C1

PANEL

left

1шт.

6(a)

99444C1

PANEL

left, for four wheel drive tractors, model 258 and 585 tractor

1шт.

7

not used

1шт.

8

99644C1

PLATE

ASSEMBLY, left

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT

2шт.

231-4144

NUT,1/4"-20, GB

2шт.

120392

WASHER,1/4", SAE

2шт.

9

99628C1

SUPPORT

left

1шт.

10

99627C1

SUPPORT

right

1шт.

11

99642C1

PLATE

ASSEMBLY, right

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT

2шт.

231-4144

NUT,1/4"-20, GB

2шт.

120392

WASHER,1/4", SAE

2шт.

12

94367C1

SPRING

RETAINER

2шт.

30267R1

NUT,M4, Cl 8

4шт.

13

3121397R2

BAFFLE

1шт.

30209R1

WASHER,M6 x 13 x 2, HT

6 mm

4шт.

103319

LOCK WASHER,1/4"

4шт.

30381R1

NUT,M6 x 1, Cl 10

M6

4шт.

14

94406C1

PANEL

right

1шт.

14(a)

99443C1

PANEL

right, for four wheel drive tractors, model 258 and 585 tractor

1шт.

15

98935C1

SEAL

STRIP filling, bulk length

2шт.

16

STRIP packing, bulk length

2шт.

17

98906C1

DEFLECTOR

BAFFLE, models 248, 258, 385, 485 tractor

1шт.

17

1332830C1

BAFFLE

model 585 tractor

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Models 248, 258, 385, 485 tractor

3шт.

492-11025

LOCK WASHER,1/4"

Models 248, 258, 385, 485 tractor

3шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Model 585 tractor

1шт.

103321

LOCK WASHER,3/8"

Model 585 tractor

1шт.

18

98911C1

BRACKET

1шт.

3118801R1

SPACER

1шт.

95-11034

WASHER,1/4"

2шт.

120376

NUT,5/16"-18, G5

1шт.

19

STRIP filling

1шт.

20

STRIP filling

1шт.
