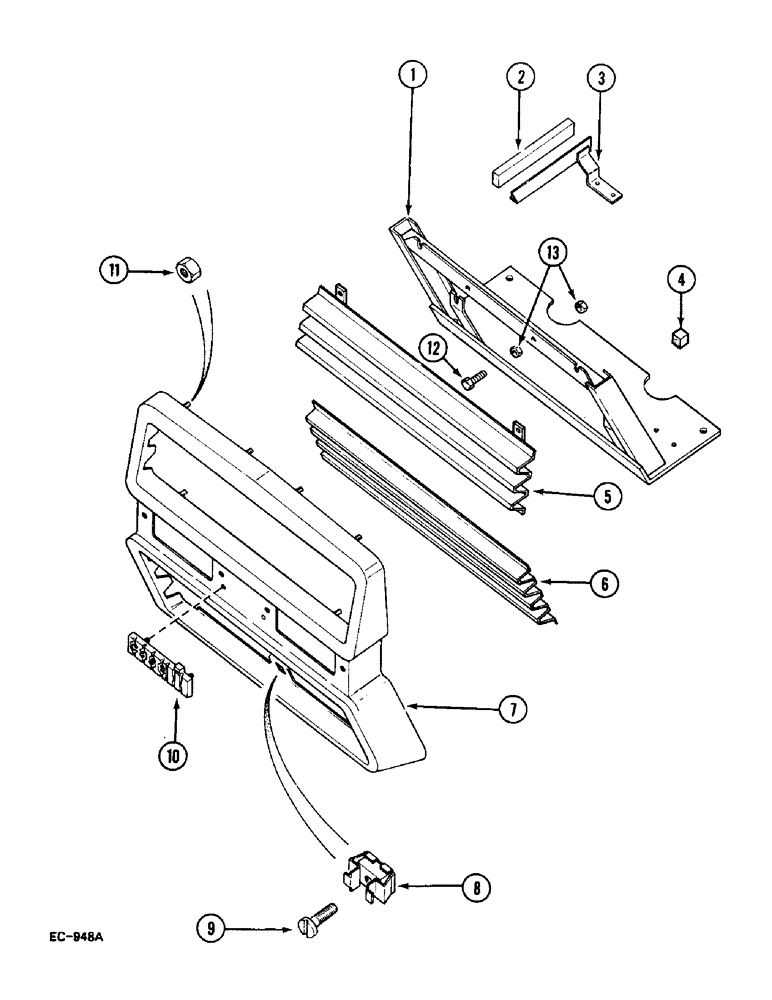

Запчасти Case IH 248 (9-828) - RADIATOR GRILLE (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
94301C1
BRACKET
ASSEMBLY
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4 inch
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
99854C1
SHIM
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
Models 248, 385, 485 tractor
4шт.
99854C1
SHIM
models 248, 385, 485 tractor
4шт.
1(a)
99440C1
BRACKET
SUPPORT ASSEMBLY, for 4 wheel drive tractors, models 258, 485, 585 tractor
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4 inch
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
99854C1
SHIM
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
Models 248, 385, 485 tractor
4шт.
99854C1
SHIM
models 248, 385, 485 tractor
4шт.
2
73228C1
GASKET
STRIP filling, bulk length
2шт.
3
1970649C1
BRACKET
SUPPORT, right
1шт.
3
1970650C1
BRACKET
SUPPORT, left
1шт.
3(b)
1970647C1
BRACKET
SUPPORT, right, for 4 wheel drive tractors
1шт.
3(b)
1970648C1
BRACKET
SUPPORT, left, for 4 wheel drive tractors
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
4
73220C1
FILLING STRIP
SEAL bulk, length
2шт.
5
94283C1
SCREEN
ASSEMBLY, upper
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
6
94285C1
SCREEN
ASSEMBLY, lower
1шт.
598798R1
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5
BOLT carriage
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
7
94229C1
GRILLE
ASSEMBLY
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
8
99424C1
NUT
RETAINER
1шт.
9
160544
SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"
1шт.
10
A181523
EMBLEM CASE/IH
CASE/IH
1шт.
131-431
PUSH-ON NUT,Self, Threading, 1/4"
2шт.
11
120375
NUT,Hex, 1/4" - 20, Gr 5
10шт.
12
180137
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
2шт.
13
120377
NUT,3/8" - 16, Gr 5
4шт.
Выбрано товаров: 41
