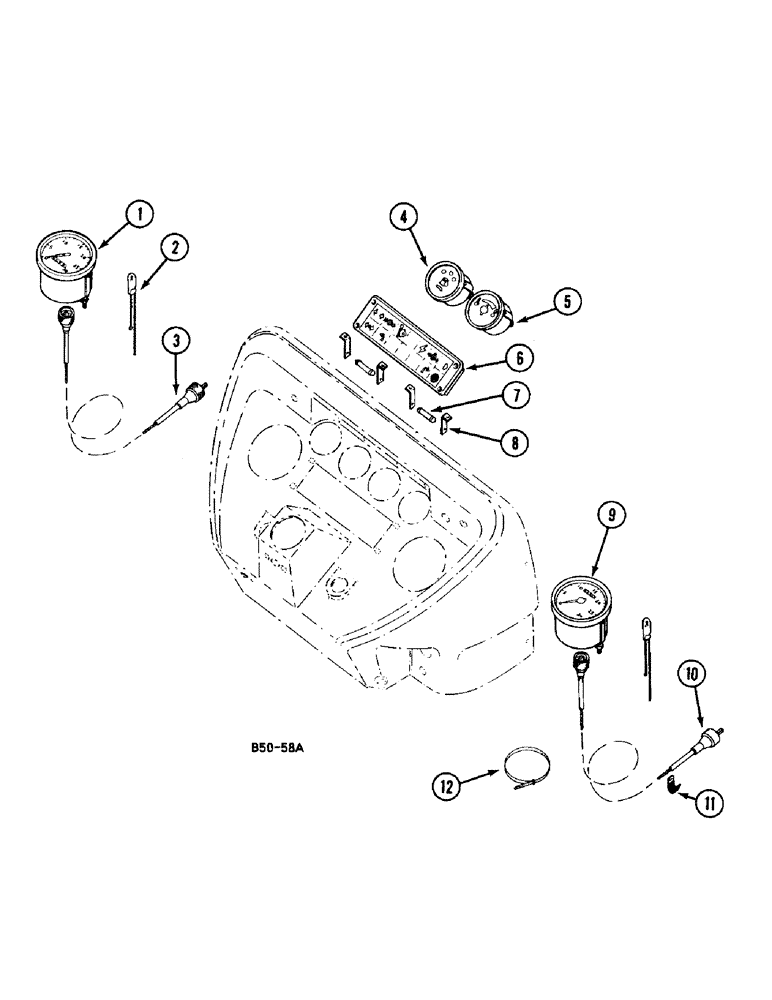

Запчасти Case IH 248 (9-820) - INSTRUMENTS, FOR 4 WHEEL DRIVE TRACTORS, FOR 2 WHEEL DRIVE TRACTORS (09) - CHASSIS

1

3125106R92

TACHOMETER

1шт.

1

3121927R91

TACHOMETER

TACHOMETER

1шт.

1

528364R92

TACHOMETER

optional, for 4 wheel drive tractors

1шт.

92034C1

DECAL

GRAPHIC product, mph, model 485 tractor

1шт.

92035C1

DECAL

GRAPHIC product, km/h, drive train 'BT', for tires 12.4R32, model 485 tractor

1шт.

1093093R1

DECAL

GRAPHIC product, mph, model 585 tractor

1шт.

1093094R1

DECAL

GRAPHIC product, km/h, drive train 'BT', for tires: 16.9R30, 18.4-30, 18.4R30, 16.9-34, 16.9R34, 12.4-36, 13.6-36, 13.6, R36, 12.4-38, 6-38, 13.6R38, 15.5-38, 15.5R38, model 585 tractor

1шт.

1093095R1

DECAL

GRAPHIC product, mph, model 585 tractor

1шт.

1288013C1

PRODUCT GRAPHIC

km/h, drive train 'DT', model 585 tractor

1шт.

1093221R1

DECAL

GRAPHIC product, mph, model 585 tractor

1шт.

1093222R1

DECAL

GRAPHIC product, km/h, drive train 'BT', for tires 12.4R36, 14.9-30, 16.9-30, model 585 tractor

1шт.

1288010C1

PRODUCT GRAPHIC

mph, model 258 and 585 tractor

1шт.

1288011C1

PRODUCT GRAPHIC

km/h, drive train 'DT', for tires 18.4-30, 16.9-34, 13.6-36, 13.6R36, 12.4-38, 13.6-38, 13.6R38, model 585 tractor

1шт.

1288012C1

PRODUCT GRAPHIC

mph, for 2 wheel drive tractors, model 585 tractor

1шт.

1093219R1

PRODUCT GRAPHIC

mph, model 585 tractor

1шт.

1093220R1

PRODUCT GRAPHIC

SPARE PART km/h, drive train 'AR', model 585 tractor

1шт.

1093213R1

PRODUCT GRAPHIC

mph, model 585 tractor

1шт.

1093214R1

PRODUCT GRAPHIC

km.h, drive train, for tires 16.9R30, 12.4-36, 13.6-36, 13.6R36, 13.6-38, model 585 tractor

1шт.

1093215R1

PRODUCT GRAPHIC

mph, model 258 and 585 tractor

1шт.

1093216R1

PRODUCT GRAPHIC

km/h, drive train 'AR', model 585 tractor

1шт.

1093217R1

PRODUCT GRAPHIC

mph, model 585 tractor

1шт.

1093218R1

PRODUCT GRAPHIC

SPARE PART km/h, drive train 'BR', for tires 14.9-28, 14.9-30, 16.9-30, model 585 tractor

1шт.

1135121R1

PRODUCT GRAPHIC

mph, model 385 and 485 tractor

1шт.

1135123R1

PRODUCT GRAPHIC

km/h, drive train 'AS' model 385 and 485 tractor

1шт.

1135288R1

PRODUCT GRAPHIC

SPARE PART km/h, model 385 and 485 tractor

1шт.

1135289R1

PRODUCT GRAPHIC

SPARE PART mph, drive train 'BR' model 385 and 485 tractor

1шт.

1135290R1

PRODUCT GRAPHIC

mph, model 385 and 485 tractor

1шт.

1135291R1

PRODUCT GRAPHIC

SPARE PART km/h, drive train 'AR', for tires 13.6-28, 14.9-28, 12.4-32, model 385 and 485 tractor

1шт.

1093205R1

DECAL

GRAPHIC product, mph, drive train 'BR', for tires 14.9-24, 12.4-28, 13.6-28, 14.9-28, 12.4-32, model 248 tractor

1шт.

1135292R1

PRODUCT GRAPHIC

mph, model 385 and 485 tractor

1шт.

1135293R1

PRODUCT GRAPHIC

SPARE PART km/h, drive train 'BR', model 385 and 485 tractor

1шт.

1135294R1

PRODUCT GRAPHIC

SPARE PART mph, model 385 and 485 tractor

1шт.

1135295R1

PRODUCT GRAPHIC

km/h, drive train 'AR', for tires 12.4-36, 13.6-36, model 385 and 485 tractor

1шт.

2

3123661R1

HOLDER

models 248, 258, 585 tractor

2шт.

2

3123661R1

HOLDER

model 385 and 485 tractor

1шт.

529233R1

LAMP

12V, 3 W, model 248 and 258 tractor

8шт.

529233R1

LAMP

12V, 3 W, models 385, 485, 585 tractor

7шт.

3

529234R1

CABLE,1480.32mm L

CABLE ASSEMBLY

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

2шт.

4

3121239R1

FUEL GAUGE

ASSEMBLY, Ac Delco

1шт.

4

3129840R1

FUEL GAUGE

ASSEMBLY, Icknield, optional, fuel

1шт.

5

3121240R1

ELECTRICAL GAUGE

ASSEMBLY, Ac Delco, used with P/N 3073787R91

1шт.

5

3127959R1

ELECTRICAL GAUGE

ASSEMBLY, Icknield, water temperature, used with P/N 3127956R1

1шт.

6

1502006C2

HOUSING

1шт.

3121718R1

SCREW

4шт.

3121717R1

LOCK NUT

4шт.

529233R1

LAMP

12V, 3W

6шт.

7

710196R1

BULB,C5W, 12V, 5W

2шт.

8

3121705R1

CONTACT HOUSING

4шт.

3121704R1

SCREW

4шт.

3121703R1

TERMINAL CONNECTOR

4шт.

9

3121968R91

SPEEDOMETER

model 248 and 258 tractor

1шт.

9

3121969R91

SPEEDOMETER

SPEEDOMETER, with drive bevel gear 12/53 T, for tires 12.4/11-32, 14.9/3-28, 16.9/13-28, optional, model 248 and 258 tractor

1шт.

9

3121966R91

SPEEDOMETER

model 258 tractor

1шт.

9

3121967R91

SPEEDOMETER

SPEEDOMETER, with drive bevel gear 12/53 T, for tires 13.6/12-36, 16.9/14-34, optional, model 258 tractor

1шт.

529233R1

LAMP

12V, 3W, model 248 and 258 tractor

1шт.

3123661R1

HOLDER

model 248 and 258 tractor

1шт.

3123431R1

CABLE

model 248 and 258 tractor

1шт.

10

1500716C1

FLEXIBLE DRIVE SHAFT

CABLE, model 248 and 258 tractor

1шт.

3229713R1

CLIP

model 248 and 258 tractor

1шт.

322861

CLIP, model 248 and 258 tractor

1шт.

11

395228R1

CABLE CLIP

model 248 and 258 tractor

1шт.

492-11025

LOCK WASHER,1/4"

Model 248 and 258 tractor

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Models 248 and 258 tractor

1шт.

12

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Model 248 and 258 tractor

1шт.
