Запчасти Case IH 248 (9-814) - INSTRUMENT PANEL (09) - CHASSIS

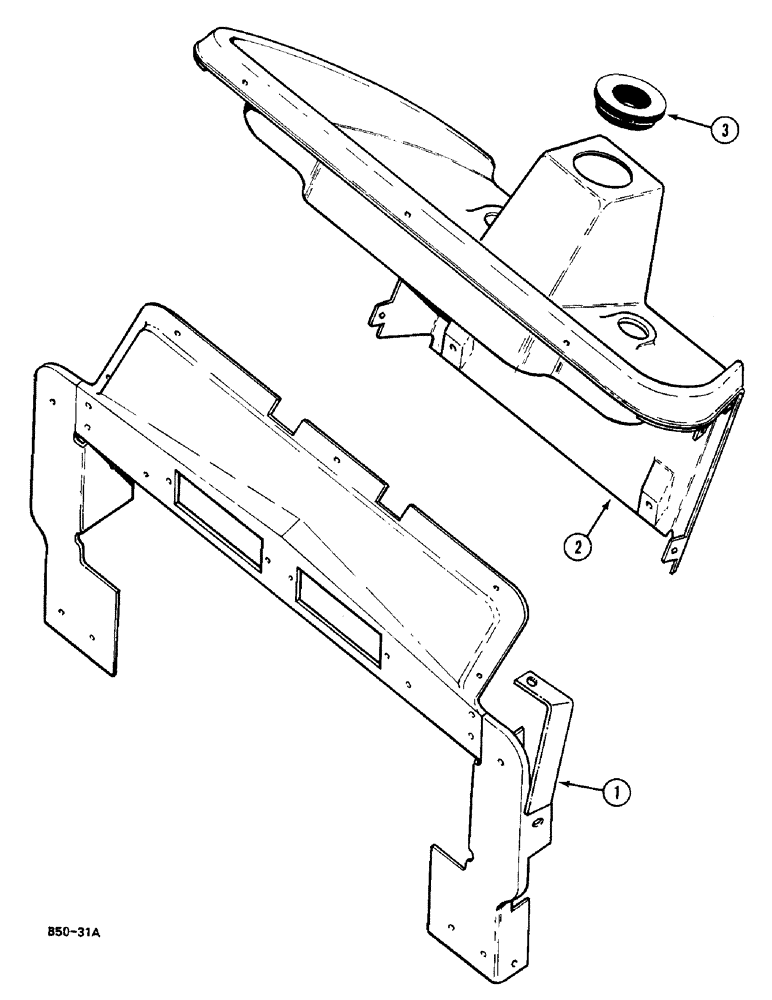

Схема запчастей Case IH 248 - (9-814) - INSTRUMENT PANEL (09) - CHASSIS
1
2
3

Артикул

Название

Примечание

Количество

1

3123667R93

PLATE ASSY.

version with cab

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

120393

BEARING WASHER,5/16", SAE

4шт.

1

3125771R92

PLATE ASSY.

version without cab

1шт.

3121684R4

PLATE

1шт.

3123171R1

NUT

7шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

4шт.

3123171R1

NUT

7шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

Back plate to battery tray

2шт.

2

1500972C3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT HOUSING, version with basic lighting, models 385, 485, 585 tractor

1шт.

2

1500973C3

HOUSING

models 258, 385, 485, 585 tractor

1шт.

2

1332703C1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT HOUSING, for 3434B only, model 248 tractor

1шт.

2

1500971C3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT HOUSING, version with deluxe lighting, model 248 and 258 tractor

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

2шт.

23994R1

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

2шт.

120391

WASHER,#10

2шт.

3123774R1

INSULATOR

version with cab

2шт.

3

3123366R1

PLUG

1шт.

3113429R1

PLUG

blanking, torque amplifier control, not illustrated

1шт.

538239R1

PLUG

blanking, horn switch, not illustrated

1шт.

538240R1

PLUG

blanking, cigar lighter, not illustrated

1шт.

3114406R1

PLUG

blanking, ignition, not illustrated

1шт.

3113429R1

PLUG

blanking, parking brake warning, not illustrated

1шт.

3112888R1

PLUG

blanking, 13 mm, head light flash switch, not illustrated

1шт.

3112888R1

PLUG

blanking, 13 mm, 2 speed powershift switch, models 385, 485, 585 tractor, not illustrated

1шт.

245918C1

LENS

PLUG blanking, 4 wheel drive switch, not illustrated

1шт.

353-404

PLUG,Dome, .500" hole, Nylon

Blanking, Not Illustrated

1шт.

Выбрано товаров: 31
