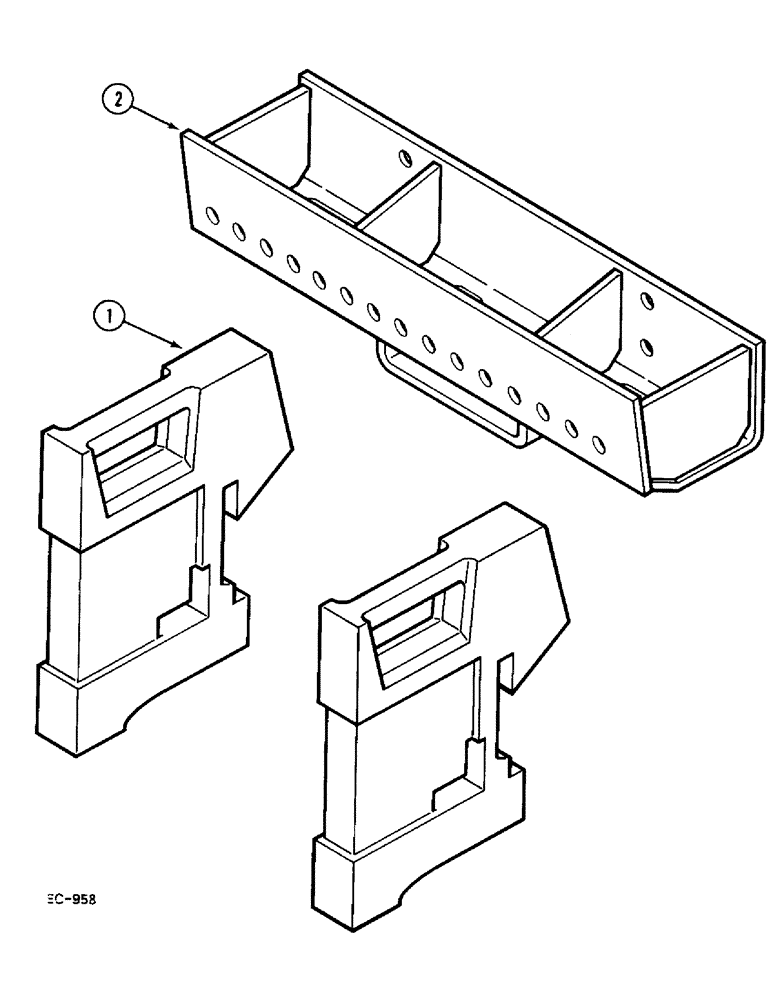

Запчасти Case IH 248 (9-810) - FRONT END WEIGHTS (09) - CHASSIS

1

383392R2

WEIGHT

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

BOLT

1шт.

125536

SQUARE NUT

1шт.

2

99517C1

BRACKET

ASSEMBLY, for 2 wheel drive tractors, machine application consists of 14 weights max., model 258 tractor

1шт.

2

99517C1

BRACKET

ASSEMBLY, for 2 wheel drive tractors, machine application consists of 14 weights max., model 585 tractor

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

Model 258 and 585 tractor

4шт.

2(a)

99522C1

SUPPORT

BRACKET ASSEMBLY, machine application consists of 10 weights max., models 258 and 585 tractor

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

Model 258 and 585 tractor

4шт.

2(a)

99522C1

SUPPORT

BRACKET ASSEMBLY, machine application consists of 6 weights, models 248, 385, 485 tractor

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

Models 248, 385, 485 tractor

4шт.

2(b)

3123572R1

BRACKET

ASSEMBLY, for 4 wheel drive tractors, machine application consists of 10 weights max., model 585 tractor

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

Model 585 tractor

4шт.
