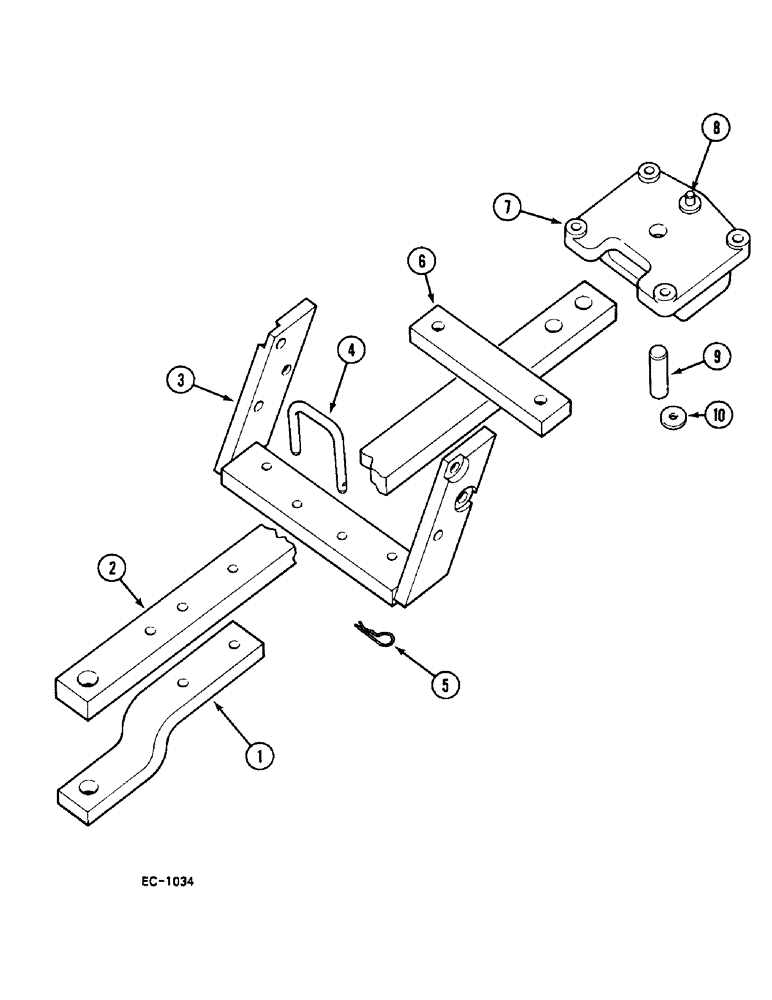

Запчасти Case IH 248 (9-806) - SWINGING DRAWBAR (09) - CHASSIS

1

3064333R1

DRAWBAR CLAMP

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

BOLT, 5/8 x 3 inch, Course Threads

2шт.

102639

NUT,5/8"-11, G5

2шт.

2(a)

82786C1

DRAWBAR, SWINGING

models 258, 485, 585 tractor

1шт.

2(a)

82785C1

DRAWBAR, SWINGING

models 248, 385, 485 tractor

1шт.

2(b)

3116100R2

DRAWBAR, SWINGING

models 248, 385, 485 tractor

1шт.

2(b)

406467R2

DRAWBAR, SWINGING

model 258 and 585 tractor

1шт.

3

3129483R1

DRAWBAR SUPPORT

1шт.

3

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

4(a)

1502071C1

COTTER PIN,14.28mm OD

1шт.

4(b)

406470R1

AXLE PIN

BOLT "U"

1шт.

4(b)

19798R1

LOCK NUT,9/16"-12, GB

1шт.

4(b)

530408R1

NUT

optional

1шт.

5(a)

720631R1

LINCH PIN

CLIP spring

1шт.

6

3121227R1

BAR

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 3 inch

2шт.

7

406468R31

SUPPORT

ASSEMBLY

1шт.

264239R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3061325R1

WASHER

4шт.

8

19846R1

DOWEL,1/2" x 1 1/4"

1/2 x 1-1/4 inch

1шт.

9

1502366C1

PIVOT PIN

1шт.

10

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 3 inch

2шт.
