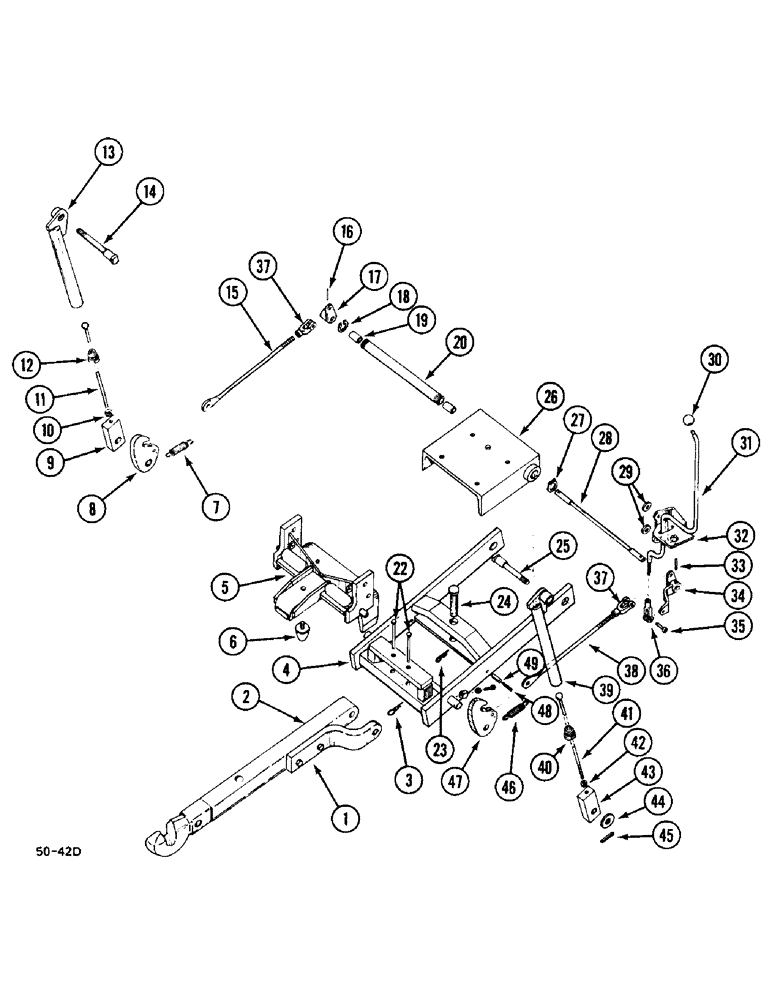

Запчасти Case IH 248 (9-786) - AUTOMATIC HITCH (09) - CHASSIS

1

3121823R1

DRAWBAR CLAMP

1шт.

NLS

NO LONGER SERVICED

5/8 x 3/4 inch

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

3121818R1

HITCH ASSY

DRAWBAR

1шт.

3

720631R1

LINCH PIN

CLIP spring

2шт.

4

1500580C3

FRAME ASSY

1шт.

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

2шт.

109084

NUT,1/4"-20, G5

2шт.

5

3125212R2

SUPPORT

RETAINER

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 inch

6шт.

6

1500608C1

SHOCK ABSORBER

STOP

1шт.

933965R1

LOCK WASHER,M10

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

M10

1шт.

7

1500607C2

SPRING

1шт.

8

1500606C1

LATCH

2шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

2шт.

9

3118824R1

BAR

1шт.

10

102639

NUT,5/8"-11, G5

1шт.

11

3121794R1

ROD

1шт.

12

3118821R1

END

1шт.

13

3121796R1

TUBE

ASSEMBLY, left

1шт.

14

3118822R2

BOLT

1шт.

752904R1

NUT

5/8 inch

1шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

1шт.

15

3121811R1

ROD

1шт.

16

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

17

3121802R1

LEVER ASSY.

1шт.

18

933082R1

SNAP RING,M32, Ext

Retaining

1шт.

19

3121792R1

BUSHING

2шт.

20

3121791R1

TUBE,15.8 mm ID, 31.8 mm OD, 336 mm Length

1шт.

21

not used

1шт.

22

3121822R1

PIN

2шт.

23

700387R1

CLIP, SPRING

1шт.

24

3121821R1

PIVOT PIN

1шт.

25

3118822R2

BOLT

1шт.

752904R1

NUT

5/8 inch

1шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

1шт.

26

3121768R1

SUPPORT

SPARE PART

1шт.

631558R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

4шт.

19846R1

DOWEL,1/2" x 1 1/4"

1/2 x 1-1/4 inch

1шт.

3061325R1

WASHER

4шт.

27

933082R1

SNAP RING,M32, Ext

Retaining

1шт.

28

3121801R1

ROD

1шт.

29

30186R1

WASHER,M16 x 34.5 x 5, HT

2шт.

30

3123663R1

BUTTON

KNOB

1шт.

31

1500767C2

LEVER

1шт.

32

1500765C1

BRACKET

ASSEMBLY

1шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-3/4 inch, Model 248 tractor

2шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-3/4 inch, Model 385 tractor

2шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-3/4 inch, Model 485 tractor

2шт.

228000

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

Model 258 tractor

2шт.

228000

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

Model 585 tractor

2шт.

33

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

34

3121805R1

LEVER ASSY.

1шт.

35

103496

CLEVIS PIN,3/8" x 1.060"

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

36

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

103026

NUT,3/8"-24, G5

1шт.

37

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

103496

CLEVIS PIN,3/8" x 1.060"

2шт.

103373

COTTER PIN,3/32" x 3/4"

2шт.

38

3121811R1

ROD

right

1шт.

39

3121797R1

TUBE

ASSEMBLY, right

1шт.

40

3118821R1

END

1шт.

41

3121794R1

ROD

1шт.

42

102639

NUT,5/8"-11, G5

1шт.

43

3118824R1

BAR

1шт.

44

557273R1

WASHER

6шт.

45

576482R1

LOCK PIN,5/16" x 2", Slotted

2шт.

46

1500607C2

SPRING

1шт.

47

1500606C1

LATCH

1шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

1шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

1шт.

48

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

PIN, COTTER

2шт.

49

19269R1

LOCK PIN,3/8" x 1", Slotted

2шт.

1135303C1

DECAL

GRAPHIC product, not illustrated

1шт.
