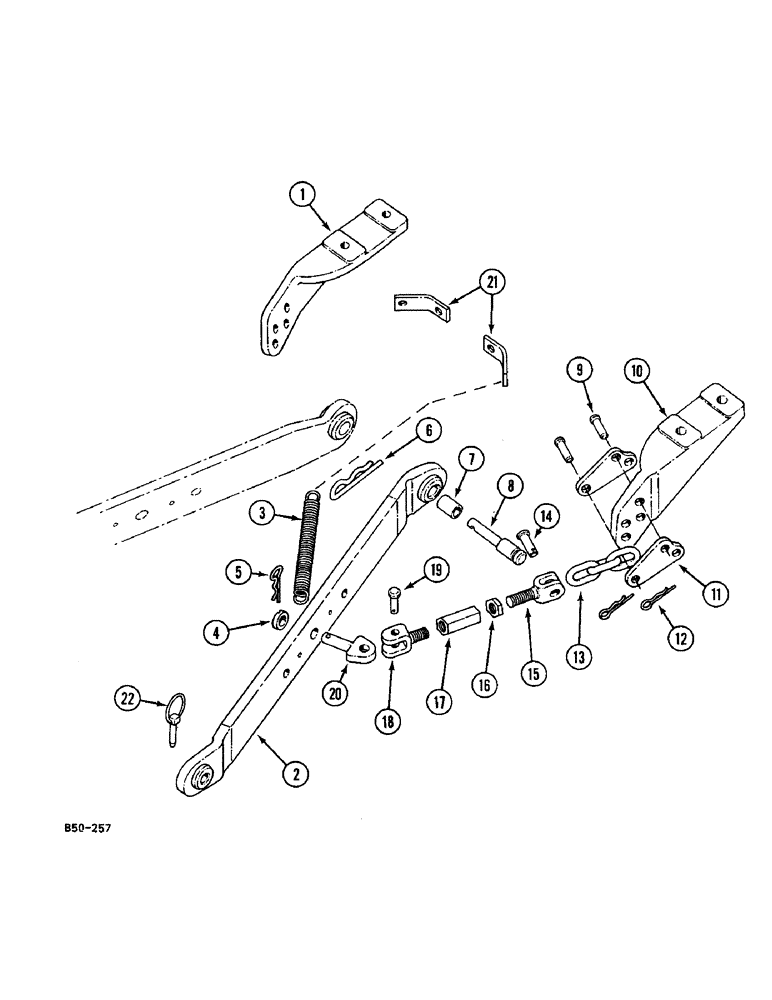

Запчасти Case IH 248 (9-776) - LOWER LINKS - THREE POINT HITCH, VERSION WITH OUTSIDE CHECK CHAINS, 248, 385, 485 (09) - CHASSIS

1

529874R1

SUPPORT

BRACKET left

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 inch

2шт.

103325

LOCK WASHER,5/8"

2шт.

2

529870R1

LOWER LINK

2шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

4шт.

3

662632R1

SPRING

2шт.

4

529894R1

WASHER

2шт.

5

529895R1

CLIP

PIN

2шт.

6

538406R1

COTTER PIN

2шт.

7

530826R1

BUSHING

2шт.

8

530825R1

PIN,31.75mm OD x 119.84mm L

2шт.

9

528112R2

PIN,15.77mm OD x 54.61mm L

4шт.

10

529875R1

SUPPORT

BRACKET right

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 inch

2шт.

103325

LOCK WASHER,5/8"

2шт.

11

3129005R1

SUPPORT

STRAP

4шт.

12

720631R1

LINCH PIN

CLIP spring

6шт.

13

3129007R1

CHAIN (AG)

2шт.

14

403037R2

PIN

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

PIN, COTTER

2шт.

15

70622C1

CLEVIS,7/8" - 14

2шт.

16

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8 inch

2шт.

17

3113596R1

NUT

2шт.

18

3118016R2

CLEVIS

LH thread

2шт.

19

528112R2

PIN,15.77mm OD x 54.61mm L

2шт.

20

3129014R1

EYEBOLT

BOLT, EYE

2шт.

21

3121228R1

BRACKET

2шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

BOLT, 5/8 x 1 inch

2шт.

22

533189R1

PIN

linch

2шт.

1092610R3

DECAL

GRAPHIC product, English, model 385 and 485 tractor

1шт.

1093303R1

DECAL

GRAPHIC product, English, model 248 tractor

1шт.

1092778R3

DECAL

GRAPHIC product, Francais, model 385 and 485 tractor

1шт.

1093304R1

DECAL

GRAPHIC product, Francais, model 248 tractor

1шт.

1092779R3

DECAL

GRAPHIC product, Espanol, model 385 and 485 tractor

1шт.

1093305R1

DECAL

GRAPHIC product, Espanol, model 248 tractor

1шт.

1092739R3

DECAL

GRAPHIC product, Deutsch, model 385 and 485 tractor

1шт.

1093306R1

DECAL

GRAPHIC product, Deutsch, model 248 tractor

1шт.

1092780R3

DECAL

GRAPHIC product, Svenskt, model 385 and 485 tractor

1шт.

1093307R1

DECAL

GRAPHIC product, Svenskt, model 248 tractor

1шт.

1092781R3

DECAL

GRAPHIC product, Suomi, model 385 and 485 tractor

1шт.

1093308R1

DECAL

GRAPHIC product, Suomi, model 248 tractor

1шт.

1092782R3

DECAL

GRAPHIC product, Dansk, model 385 and 485 tractor

1шт.

1093309R1

DECAL

GRAPHIC product, Dansk, model 248 tractor

1шт.

1092784R3

DECAL

GRAPHIC product, Norge, model 385 and 485 tractor

1шт.

1093310R1

DECAL

GRAPHIC product, Norge, model 385 and 485 tractor

1шт.
