(9-774) - LOWER LINKS - THREE POINT HITCH -, VERSION WITH INSIDE CHECK CHAINS, 248, 385, 485

Запчасти Case IH 248 (9-774) - LOWER LINKS - THREE POINT HITCH -, VERSION WITH INSIDE CHECK CHAINS, 248, 385, 485 (09) - CHASSIS

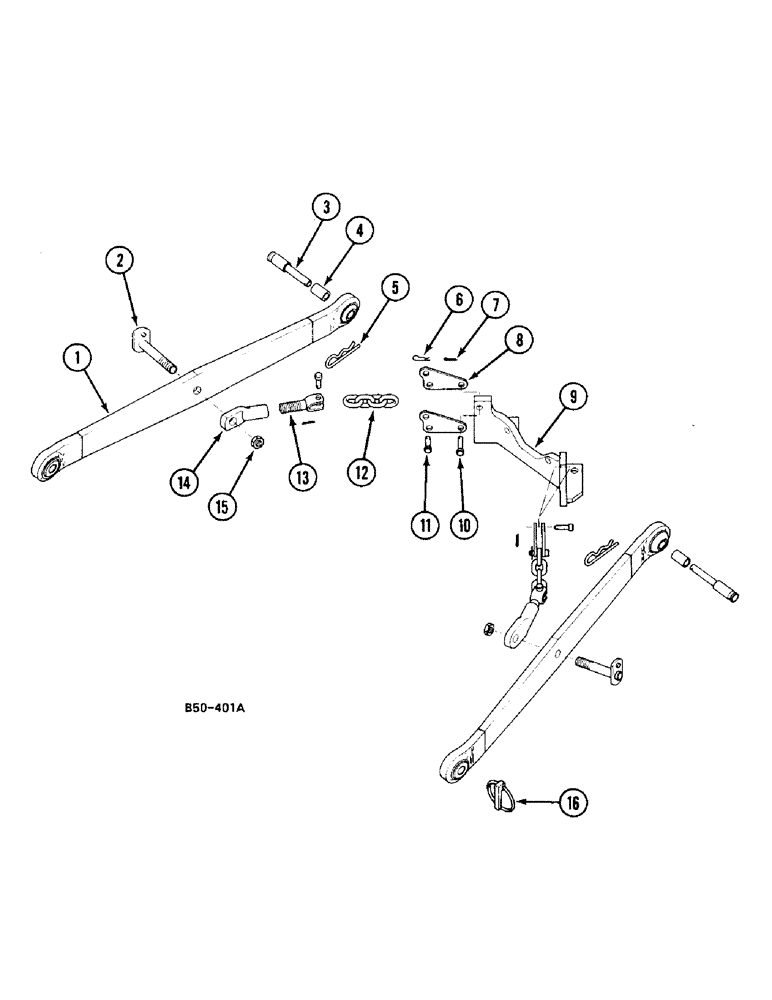

Схема запчастей Case IH 248 - (9-774) - LOWER LINKS - THREE POINT HITCH -, VERSION WITH INSIDE CHECK CHAINS, 248, 385, 485 (09) - CHASSIS
6
14
8
16
5
12
15
9
13
4
2
10
3
7
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

402648R1

LOWER LINK

2шт.

2

527981R1

PIN ASSY.

2шт.

3

530825R1

PIN,31.75mm OD x 119.84mm L

2шт.

4

530826R1

BUSHING

2шт.

5

538406R1

COTTER PIN

2шт.

6

460047R1

CLIP, SPRING

2шт.

7

108630

COTTER PIN,1/8" x 7/8"

4шт.

8

527975R1

PLATE

4шт.

9

3123734R1

SUPPORT

BRACKET

1шт.

271558R1

SCREW

4шт.

10

403043R1

PIN

2шт.

11

403031R1

PIN

4шт.

12

527974R1

CHAIN (AG)

2шт.

13

527976R1

ADJUSTABLE CLEVIS

ASSEMBLY

2шт.

14

403034R1

BRACKET

2шт.

15

231-14012

LOCK NUT,3/4"-10, GB

2шт.

16

533189R1

PIN

linch

2шт.

1092610R2

DECAL

English, model 385 tractor, not illustrated

1шт.

1092610R2

DECAL

English, model 485 tractor, not illustrated

1шт.
