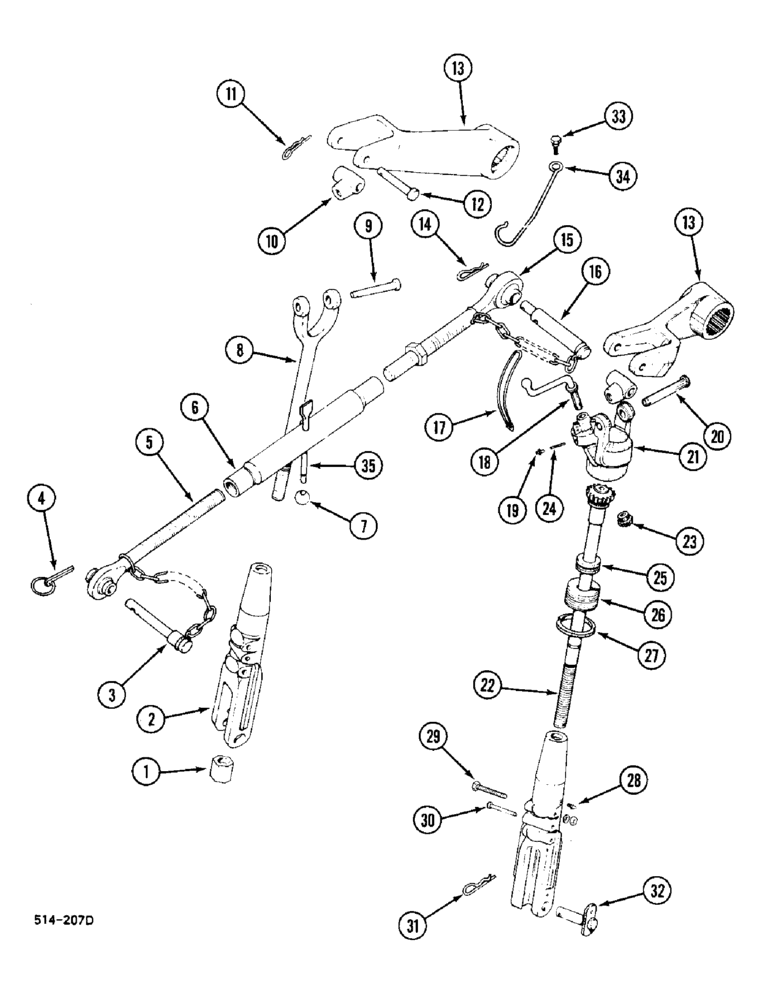

Запчасти Case IH 248 (9-762) - THREE POINT HITCH (09) - CHASSIS

1

527937R1

NUT

2шт.

2(x)

3121964R1

HOUSING

2шт.

575814R1

WASHER

models 248, 385, 485 tractor

4шт.

2(y)

3121965R1

HOUSING

models 258, 485, 585 tractor

2шт.

528085R91

UPPER LINK

models 248, 385, 485 tractor

1шт.

528085R91

UPPER LINK

model 385 and 485 tractor

1шт.

528079R91

UPPER LINK

consists of: Ref. 3E - 6E, 7, 15E, 16E and 35, models 258, 485, 585 tractor

1шт.

1328188C91

LINK

upper, model 485 tractor

1шт.

1328195C91

LINK

upper,consists of: Ref. 3E - 6F, 15F and 16F, models 248, 385, 485 tractor

1шт.

3(e)

528081R1

PIN ASSY.

category I

1шт.

3(f)

1328192C1

PIN

Assy, models 258, 485, 585 tractor

1шт.

1328193C1

CHAIN (AG)

ASSEMBLY, models 258, 485, 585 tractor

1шт.

4(e)

533189R1

PIN

linch

1шт.

4(f)

1328218C1

LINCH PIN,11mm OD

Assy, models 258, 485, 585 tractor

1шт.

5(e)

527996R1

SCREW

SCREW ASSEMBLY, models 258, 485, 585 tractor

1шт.

5(e)

528000R1

SCREW

ASSEMBLY, RH thread, models 248, 385, 485 tractor

1шт.

5(f)

1328190C1

SCREW,M27 x 3

SCREW ASSEMBLY, RH thread, models 258, 485, 585 tractor

1шт.

905709R1

THIN NUT,Thin, M27 x 3

models 258, 485, 585 tractor

1шт.

6(e)

528003R1

TURNBUCKLE

models 258, 485, 585 tractor

1шт.

6)e)

528002R1

TURNBUCKLE

models 248, 385, 485 tractor

1шт.

6(f)

1328196C1

TRUNNION,M27 x 3

TURNBUCKLE, models 258, 485, 585 tractor

1шт.

7

3048296R1

BUTTON

KNOB

1шт.

8

527948R91

CLEVIS,7/8" - 9

ASSEMBLY left, models 258, 485, 585 tractor

1шт.

8

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

8

527967R1

CLEVIS,7/8" - 9

ASSEMBLY left, models 258, 485, 585 tractor

1шт.

9

3044309R1

PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

3/4 x 1 inch

1шт.

10

539247R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL

2шт.

11(z)

720631R1

LINCH PIN

CLIP spring

2шт.

12(z)

3044309R1

PIN

2шт.

13

402634R2

ROCKER ARM

2шт.

14

530049R1

CLIP, SPRING

1шт.

15e)

527994R1

SCREW

ASSEMBLY LH thread, models 258, 485, 585 tractor

1шт.

425-1418

JAM NUT,Jam, 1 1/8"-7, G5

models 258, 485, 585 tractor

1шт.

15(e)

527998R1

SCREW

ASSEMBLY LH thread, models 248, 385, 485 tractor

1шт.

426899

NUT,Jam, 1"-8, G5

models 248, 385, 485 tractor

1шт.

15(f)

1328189C1

SCREW,M27 x 3, LH Threads

SCREW ASSEMBLY, LH thread, models 258, 485, 585 tractor

1шт.

16(e)

528084R1

HITCH PIN

ASSEMBLY

1шт.

16(f)

1328194C1

PIN

Assy, models 258, 485, 585 tractor

1шт.

1328193C1

CHAIN (AG)

ASSEMBLY category II, models 258, 485, 585 tractor

1шт.

17

3072424R1

SPRING

1шт.

18

527943R1

CRANK

HANDLE

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

P/N 219-1, which replaced P/N 109461 is now replaced by: P/N W45836

1шт.

20

3069069R1

PIN

5/8 x 3-3/4 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

3/4 x 1 inch

1шт.

21

3072422R2

HOUSING

will no longer be tapped for 1/8 NPT threads

1шт.

22

69991C91

SCREW

models 248, 385, 485 tractor

1шт.

22

69984C91

SCREW

optional, models 248, 385, 485 tractor

1шт.

22

3116725R91

SCREW

models 258, 485, 585 tractor

1шт.

22

3116726R91

SCREW

SCREW, optional, models 258, 485, 585 tractor

1шт.

23

3069063R1

GEAR

1шт.

24

142506

LATCH

3/16" x 3/4", Type A

1шт.

25

3044346R91

BALL BEARING

1шт.

25

3044347R91

THRUST BEARING

BEARING thrust

1шт.

25

3044348R91

BEARING, THRUST

1шт.

25

3068049R91

BALL BEARING

thrust, optional

1шт.

26

3069064R1

BEARING

1шт.

27

3069065R1

LOCK NUT

1шт.

28

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

2шт.

29

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

30

68804R1

PIN

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

31(x)

432-1620

COTTER PIN,1/4" x 1 1/4"

Models 258, 485, 585 tract

2шт.

31(y)

530049R1

CLIP, SPRING

models 258, 485, 585 tractor

2шт.

32(x)

402645R1

PIN

model 258 and 585 tractor

2шт.

32(y)

1502066C1

PIVOT PIN

Model 258 and 585 tractor

2шт.

33

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

1шт.

34

530050R3

CLIP,ELECTRICAL

HOOK

1шт.

23042R1

WASHER

1шт.

35

65958C2

ROD

1шт.
