(248) - CASE IH INDUSTRIAL TRACTOR (S/N 1591 & ON) (1/86-12/90)
/
(02) - ENGINE
/

(2-046) - CYLINDER HEAD - VALVES AND STUDS, 248, 385, 485

Запчасти Case IH 248 (2-046) - CYLINDER HEAD - VALVES AND STUDS, 248, 385, 485 (02) - ENGINE

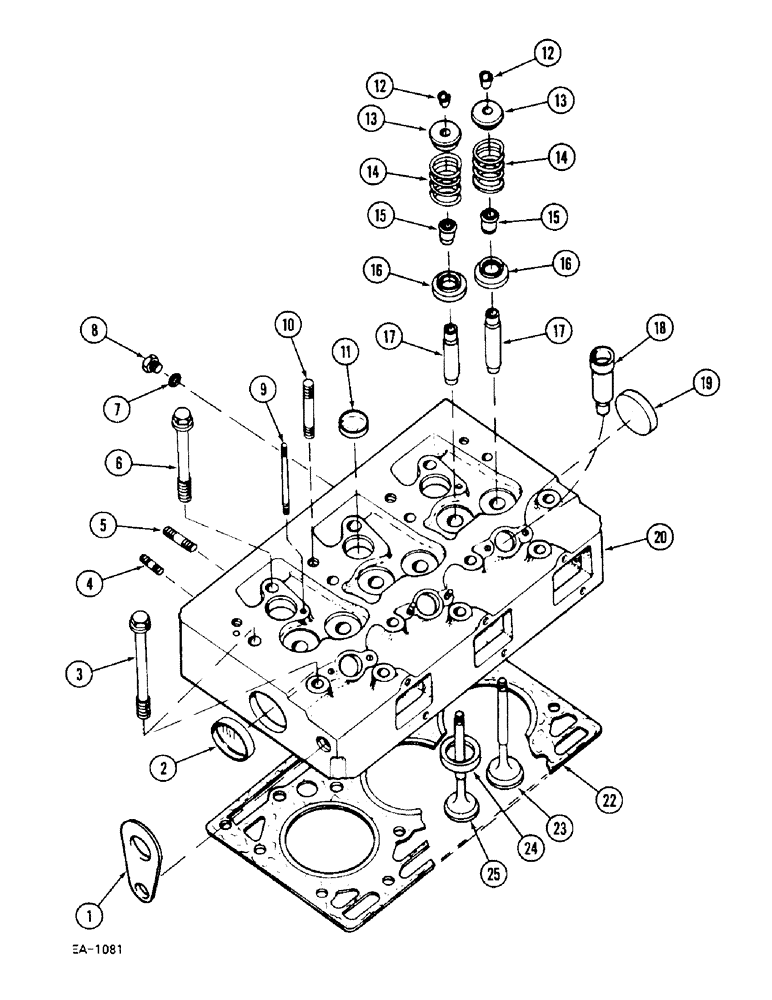

Схема запчастей Case IH 248 - (2-046) - CYLINDER HEAD - VALVES AND STUDS, 248, 385, 485 (02) - ENGINE
3
1
22
14
17
15
9
4
17
24
11
12
16
13
10
7
19
15
18
20
25
16
23
13
2
14
8
12
6
5

№

Артикул

Название

Примечание

Количество

1

3055370R1

STIRRUP

SHACKLE, models 248, 385, 485 tractor

1шт.

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

BOLT, 3/4 x 1-1/8 inch, models 248, 385, 485 tractor

1шт.

2

934003R1

PLUG,M52, Conical

models 248, 385, 485 tractor

1шт.

3

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

9/16 x 146 mm, models 248, 385, 485 tractor

8шт.

4

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Models 248, 385, 485 tractor

6шт.

5

3055663R1

STUD

3/8 x 38 mm, models 248, 385, 485 tractor

6шт.

6

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

9/16 x 123 mm, models 248, 385, 485 tractor

6шт.

7

718743R1

SEALING RING,M10 x 16 x 1

Ring , Models 248, 385, 485 tractor

1шт.

8

934259R1

PLUG,Hex, M10 x 1

Models 248, 385, 485 tractor

1шт.

9

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

Models 248, 385, 485 tractor

2шт.

10

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

Models 248, 385, 485 tractor

4шт.

11

933537R1

PLUG,M25, Conical

models 248, 385, 485 tractor

2шт.

12

3055057R1

KEY

SPARE PART ASSEMBLY, models 248, 385, 485 tractor

12шт.

13

3055058R2

SPRING CUP

CAP, models 248, 385, 485 tractor

6шт.

14

3055060R1

SPRING

models 248, 385, 485 tractor

6шт.

15

3218399R91

GASKET KIT

PACKAGE, models 248, 385, 485 tractor

1шт.

16

3055059R91

CAP

ROTATOR, models 248, 385, 485 tractor

6шт.

17

3055022R2

VALVE GUIDE

models 248, 385, 485 tractor

6шт.

18

3055344R1

SLEEVE

models 248, 385, 485 tractor

3шт.

19

934003R1

PLUG,M52, Conical

models 248, 385, 485 tractor

1шт.

20

3055366R96

HEAD (CYLINDER)

ASSEMBLY, with Ref. 2, 11, 17 and 18, models 248, 385, 485 tractor

1шт.

22

3228361R1

CYLINDER HEAD GASKET

models 248, 385, 485 tractor

1шт.

23

3055055R2

OVERSIZE INLET VALVE

models 248, 385, 485 tractor

3шт.

24

3132361R1

INSERT

insert, 0.40 mm oversize, models 248, 385, 485 tractor

3шт.

24

3132362R1

VALVE SEAT

0.15 mm oversize, models 248, 385, 485 tractor

3шт.

25

3055056R2

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE models 248, 385, 485 tractor

3шт.

Выбрано товаров: 26
