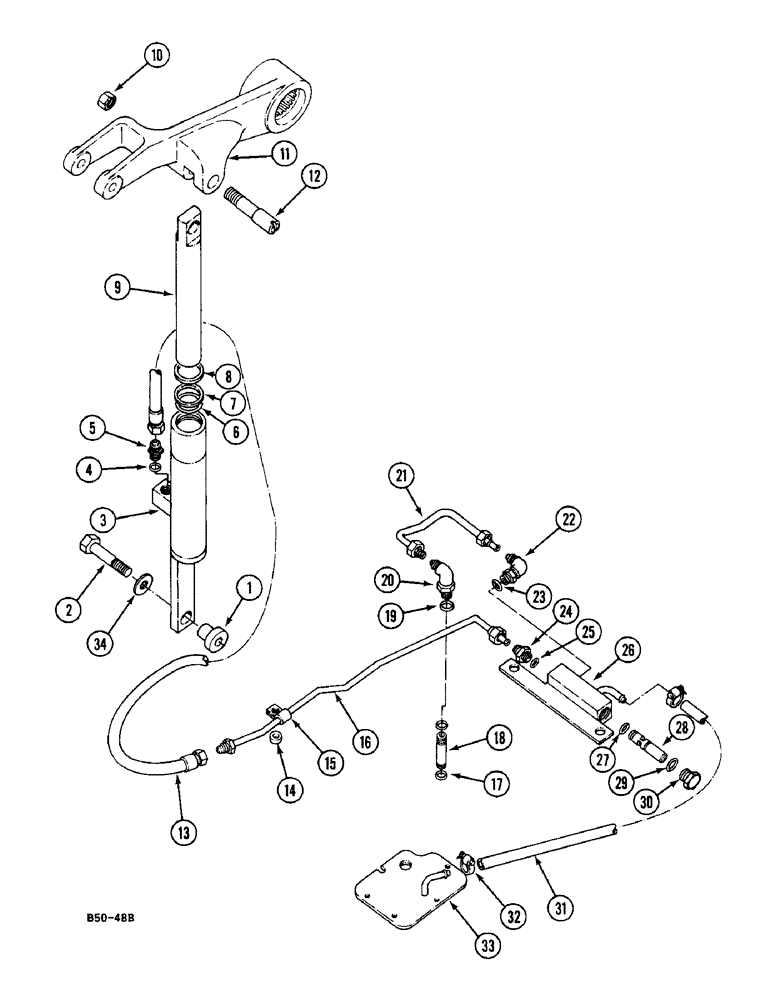

Запчасти Case IH 248 (8-742) - ASSISTOR RAM AND PIPES, 258, 585 (08) - HYDRAULICS

1

742964C1

SLEEVE

1шт.

2

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

(76 mm long)

1шт.

3121734R92

CYLINDER ASSY.

consists of: Ref. 3 thru 9

1шт.

3

3121735R2

CYLINDER

1шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

6

3121742R1

O-RING

1шт.

7

3121743R1

WASHER

RING backup

1шт.

8

3121744R1

SCRAPER RING

1шт.

9

3121741R2

PISTON ROD

ROD

1шт.

10

102639

NUT,5/8"-11, G5

1шт.

11

3121747R1

ROCKER ARM

1шт.

12

3121748R1

BOLT,Step, 5/8" - 11 x 2.28"

1шт.

13

3121754R1

HOSE

1шт.

14

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

1шт.

15(a)

3111750R1

CLAMP

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

15(b)

384891R1

CLAMP

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 inch

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

16(a)

1500584C2

HYD TUBE,9.53 mm OD, 475, 65 mm Length

ASSEMBLY

1шт.

16(b)

1500429C1

TUBE ASSY.,9.525 mm OD, 475, 124 mm Length

1шт.

17

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

2шт.

18

3118053R1

TUBE

1шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20(a)

3121147R1

ELBOW

1шт.

20(b)

1500430C1

UNION

1шт.

21(a)

3121752R2

TUBE ASSY.

1шт.

21(b)

1500428C1

HYD TUBE,9.53 mm OD, 97, 67 mm Length

1шт.

22

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

23

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26(a)

3121749R1

BLOCK ASSY.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

3121756R1

SPACER

2шт.

26(b)

1500426C1

BLOCK ASSY.

1шт.

27

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

28

400095R92

VALVE, CUSHION

1шт.

29

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

536855R1

PLUG

1шт.

31

3121755R1

HOSE

1шт.

32

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

534421R1

HOSE CLAMP

2шт.

3112550R1

CLAMP

hose, optional

2шт.

33

99973C1

COVER

1шт.

34

311699R1

WASHER

1шт.

3129039R1

PLATE

not illustrated

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

auto hitch or swinging drawbar, 5/8 x 1-1/2 inch, not illustrated

1шт.
