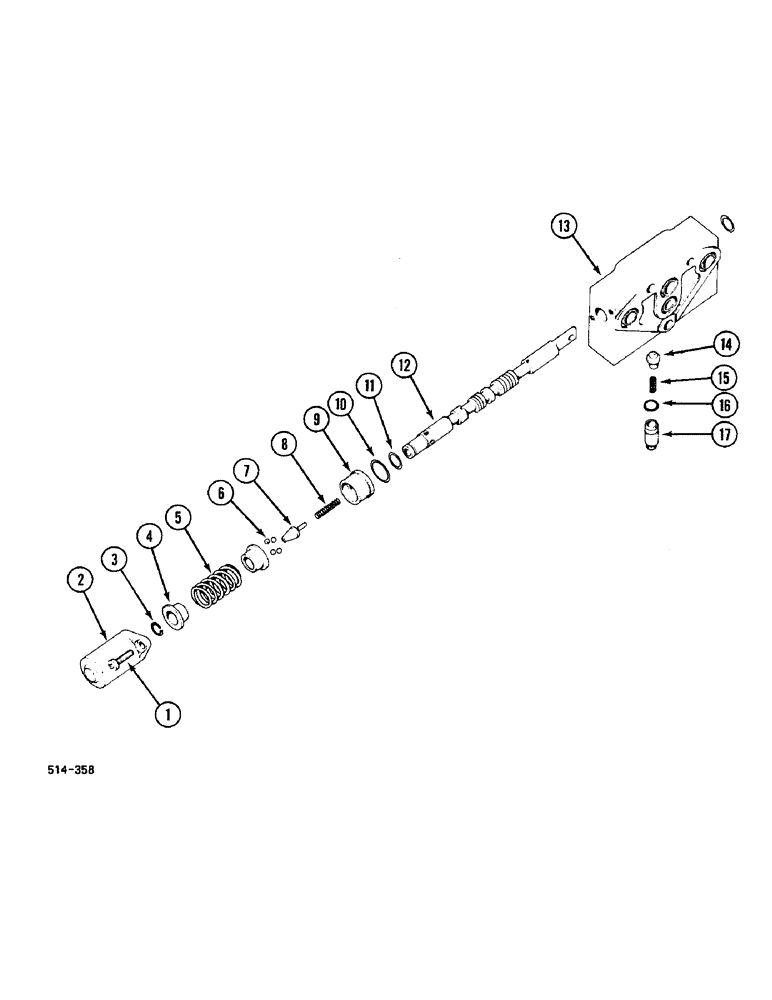

Запчасти Case IH 248 (8-740) - DOUBLE ACTING AUX. HYD. VALVE - "KONTAK" (08) - HYDRAULICS

3116056R93

VALVE

ASSEMBLY, consists of: Ref. 1 thru 17

1шт.

1

3113064R1

SCREW

2шт.

2

3113058R1

CYLINDER END CAP

1шт.

3

3118800R1

RING, SNAP

RING SNAP retaining

1шт.

4

3118795R1

SPRING SEAT

2шт.

5

3113060R1

SPRING

1шт.

6

17007R1

BALL

4шт.

7

3118796R1

PIN

SPARE PART

1шт.

8

3118798R1

SPRING

1шт.

9

742979C1

CAGE

SPARE PART

1шт.

10

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

1шт.

11

379181R1

O-RING,0.614" ID x 0.07" Width

2шт.

12

SPOOL, order: P/N 3116056R93

1шт.

13

BODY, order: P/N 3116056R93

1шт.

14

3113068R1

VALVE POPPET

1шт.

15

3113069R1

SPRING

1шт.

16

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

17

3113070R1

GUIDE

1шт.
