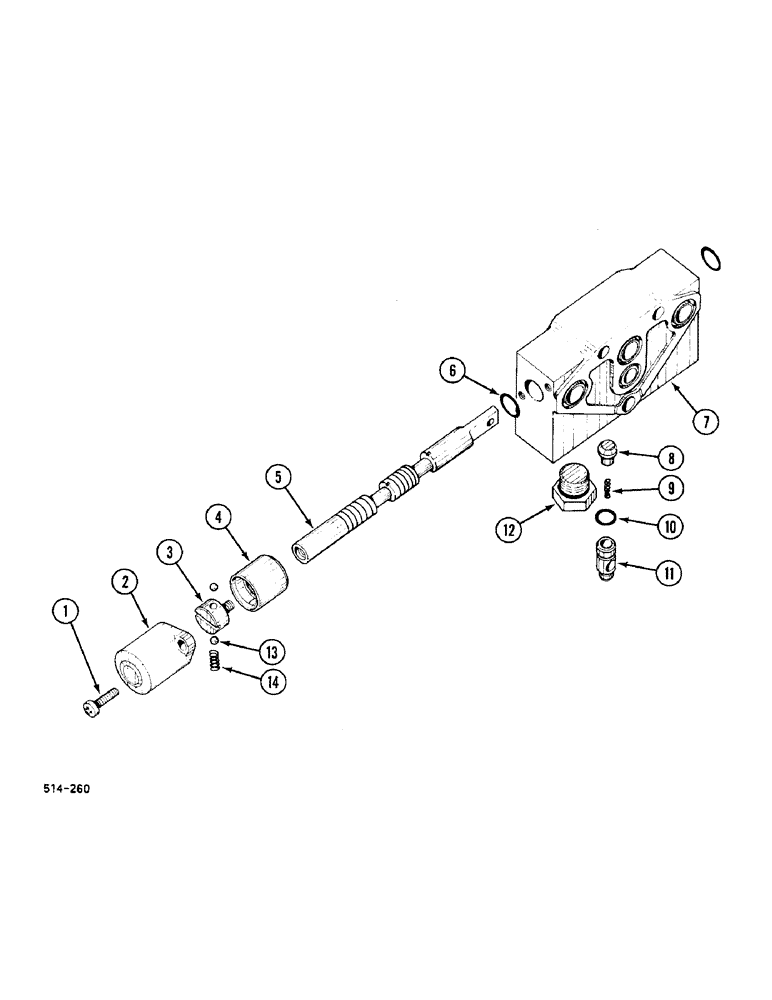

Запчасти Case IH 248 (8-738) - SINGLE ACTING AUX. HYD. VALVE - "KONTAK" (08) - HYDRAULICS

3116055R94

VALVE

ASSEMBLY, consists of: Ref. 1 thru 14

1шт.

1

3113064R1

SCREW

models 248, 385, 485 tractor

2шт.

1

3113064R1

SCREW

model 258 and 585 tractor

1шт.

2

3113059R1

CAP

models 248, 385, 485 tractor

1шт.

2

3113059R1

CAP

model 258 and 585 tractor

2шт.

3

3116057R1

CARRIER

1шт.

4

3116058R1

CAGE

1шт.

5

SPOOL, order: P/N 3116055R94

1шт.

6

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

7

BODY, order: P/N 3116055R94

1шт.

8

3113068R1

VALVE POPPET

1шт.

9

3113069R1

SPRING

1шт.

10

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

11

3113070R1

GUIDE

1шт.

12

3113071R1

PLUG

SPARE PART ASSEMBLY

1шт.

13

17008R1

BALL,1/4" Dia

2шт.

14

3113065R1

SPRING

1шт.
