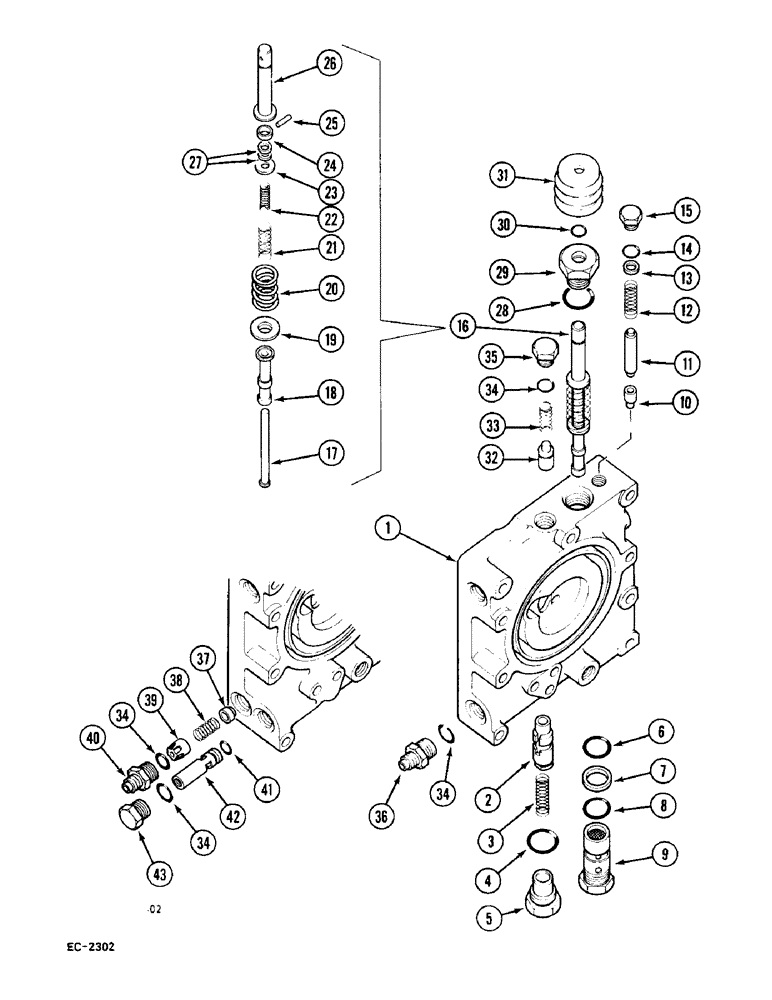

Запчасти Case IH 248 (8-724) - MULTIPLE CONTROL VALVE (08) - HYDRAULICS

(a)

94281C91

VALVE

ASSEMBLY, consists of: Ref. 1 thru 33, 34A, 35 and 36

1шт.

(b)

57714C95

VALVE

ASSEMBLY, consists of: Ref. 1 thru 33, 34A, 35, 36, 37B and 43B

1шт.

1

BODY ASSEMBLY

1шт.

2

SPOOL

1шт.

3

405448R1

SPRING

1шт.

4

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

405447R1

PLUG

ASSEMBLY

1шт.

6

383219R1

O-RING,0.924" ID x 0.103" Width

1шт.

7

378985R2

BACK-UP RING

1шт.

8

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

9

399858R92

VALVE

ASSEMBLY, pilot relief, 2500/2600 psi

1шт.

10

399882R1

POPPET

pressure regulator

1шт.

11

399881R1

PIN

1шт.

12

549850R1

SPRING

1шт.

13

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

1шт.

14

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

573983R1

PLUG

1шт.

16

530775R93

VALVE

control, consists of: Ref. 17 thru 27

1шт.

17

405454R2

PIN

1шт.

18

405452R2

VALVE

1шт.

19

405453R1

RETAINER

1шт.

20

530776R1

SPRING

1шт.

21

381760R1

SPRING

light

1шт.

22

399878R2

SPRING

heavy

1шт.

23

556980R1

WASHER

1шт.

24

530778R1

RETAINER

1шт.

25

405456R1

PIN

1шт.

26

530777R2

STEM

1шт.

27

369107R1

SNAP RING,#21, Ext

#21, Ext

1шт.

28

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

29

530781R2

GUIDE

1шт.

30

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

31

530780R1

BOOT

1шт.

32

527482R1

VALVE,By-Pass

1шт.

33

1502544C1

SPRING

1шт.

34(a)

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

34(b)

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

35

529492R2

PLUG

1шт.

36

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

37(b)

382304R1

CHECK VALVE

1шт.

38(b)

399869R1

SPRING

1шт.

39(b)

399870R2

RETAINER

1шт.

40(b)

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

1шт.

41(b)

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

42(b)

55356C1

VALVE, CUSHION

1500 psi

1шт.

43(b)

536855R1

PLUG

1шт.
