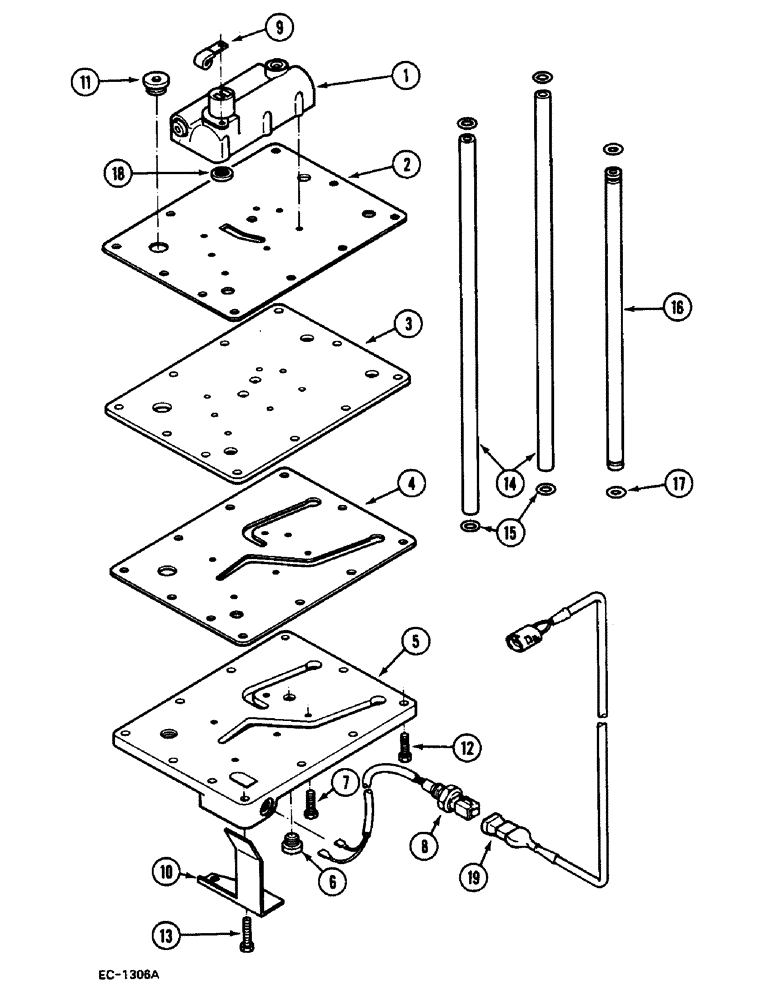

Запчасти Case IH 248 (8-712) - REGULATOR VALVE AND PLATE (08) - HYDRAULICS

1

83006C93

VALVE

ASSEMBLY, see regulator valve

1шт.

2

83009C2

GASKET

1шт.

3

83010C2

PLATE

1шт.

4

83011C2

GASKET,0.79mm Thk

1шт.

5

83013C2

LARGE PLATE

PLATE, LARGE

1шт.

6

86258C1

PLUG,M12 x 1.5

1шт.

7

931405R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

5шт.

8

99990C1

HARNESS

1шт.

9

92071C1

CLAMP

CLIP cable

1шт.

10

99952C2

SHIELD

1шт.

11

87953C1

PLUG

1шт.

12

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 inch

9шт.

13

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

28422R1

WASHER,13/32" x 13/16" x .134", HDN

3/8 inch

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 inch

2шт.

14

402545R1

PRESSURE PIPE

TUBE

2шт.

15

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

16

83401C1

PIPE

1шт.

17

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

386073R91

SCREEN

filter

1шт.

19

99992C1

ELECTRICAL WIRE

WIRE cable

2шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
