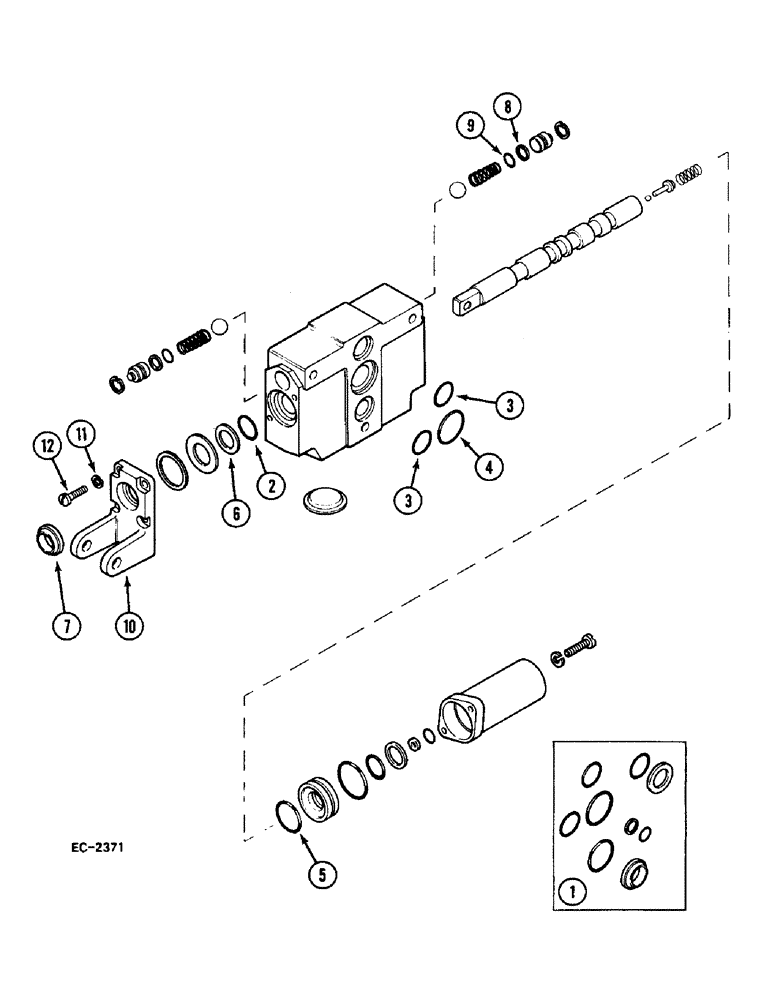

Запчасти Case IH 248 (8-686) - AUXILIARY VALVES ASSEMBLY - "BOSCH" (08) - HYDRAULICS

1287379C91

VALVE

ASSEMBLY, double acting without check valves

1шт.

1287384C91

VALVE

ASSEMBLY, double acting with 1 check valve

1шт.

1287385C91

VALVE

ASSEMBLY, double acting with 2 check valves

1шт.

1

1328394C1

SEAL KIT

PACKAGE seals

1шт.

2

O-RING

2шт.

3

O-RING

2шт.

4

O-RING

2шт.

5

O-RING

2шт.

6

RING back-up

2шт.

7

RING backup

1шт.

8

RING back-up

2шт.

9

O-RING

2шт.

10

1958026C1

BRACKET

1шт.

11

933833R1

LOCK WASHER,M6

2шт.

12

1958025C1

SCREW

2шт.

1958017C1

PACKAGE, REPAIR

not illustrated

1шт.
