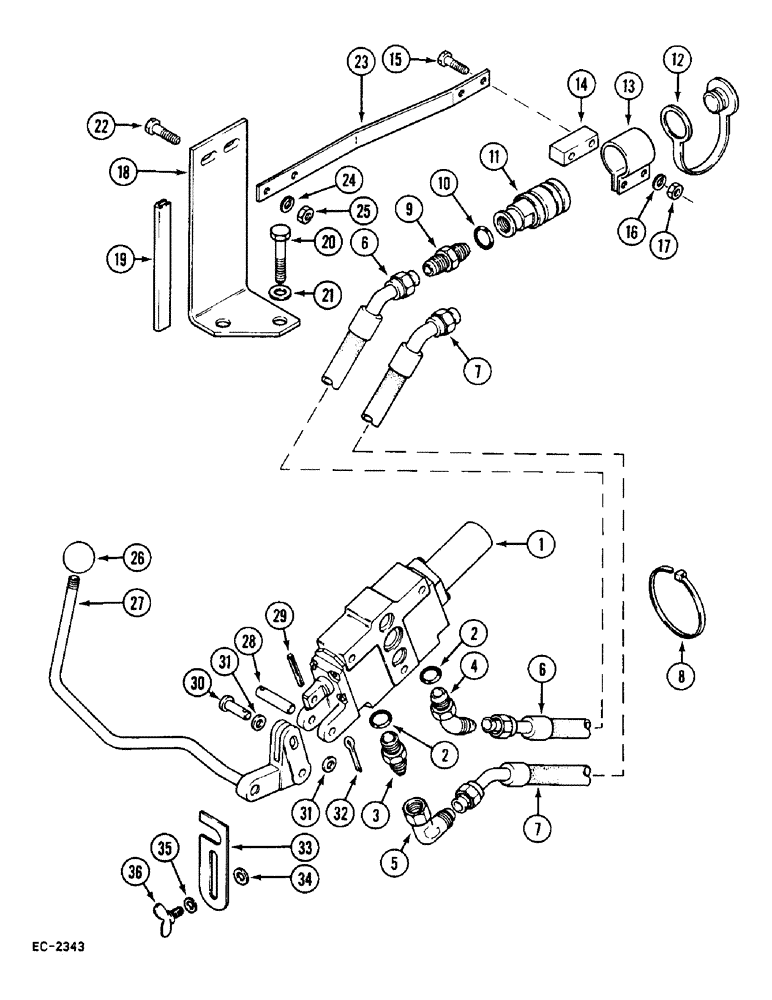

Запчасти Case IH 248 (8-674) - AUXILIARY VALVES "BOSCH" - FIRST BANK (08) - HYDRAULICS

1

VALVE ASSEMBLY, see auxiliary valves, Bosch

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

3

86165C1

FITTING

UNION

1шт.

4

93636C1

ELBOW

1шт.

5

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

6

533142R2

HOSE,12.7mm ID x 610mm L

1шт.

7

533141R2

HOSE

1шт.

8

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

1шт.

9

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

3067993R91

COUPLING, BREAK AWAY

2шт.

12

373220R91

PLUG

2шт.

13

3114106R1

CLAMP

2шт.

14

3123061R1

SPACER

1шт.

15

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

16

80681

LOCK WASHER,5/16"

2шт.

17

120376

NUT,5/16"-18, G5

2шт.

18

3113436R91

SUPPORT

BRACKET ASSEMBLY

1шт.

19

3113437R1

STRIP

1шт.

20

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

21

120384

WASHER,1/2"

2шт.

22

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

23

533143R1

BAR

1шт.

24

103319

LOCK WASHER,1/4"

2шт.

25

109084

NUT,1/4"-20, G5

2шт.

26

3123087R1

BUTTON

KNOB, black

1шт.

27

94134C1

LEVER ASSY.

1шт.

28

99609C1

PIN

1шт.

29

18518R1

LOCK PIN,1/8" x 1", Slotted

1шт.

30

23840R1

CLEVIS PIN,5/16" x 1 3/16"

1шт.

31

31130R1

WASHER,M8 x 17.5 x 2, HT

2шт.

32

103373

COTTER PIN,3/32" x 3/4"

1шт.

33

3125862R1

PLATE

1шт.

34

120394

WASHER,3/8", SAE

1шт.

35

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

36

164603

BOLT, 3/8 inch

1шт.

537080R1

DECAL

GRAPHIC product, English, not illustrated

1шт.

1092881R2

DECAL

GRAPHIC product, Francais, not illustrated

1шт.

1092882R2

DECAL

GRAPHIC product, Espanol, not illustrated

1шт.

1092883R2

DECAL

GRAPHIC product, Deutsch, not illustrated

1шт.

1092884R2

DECAL

GRAPHIC product, Svenskt, not illustrated

1шт.

1092885R2

DECAL

GRAPHIC product, Suomi, not illustrated

1шт.

1092886R2

DECAL

GRAPHIC product, Dansk, not illustrated

1шт.

1092887R2

DECAL

GRAPHIC product, Norge, not illustrated

1шт.
