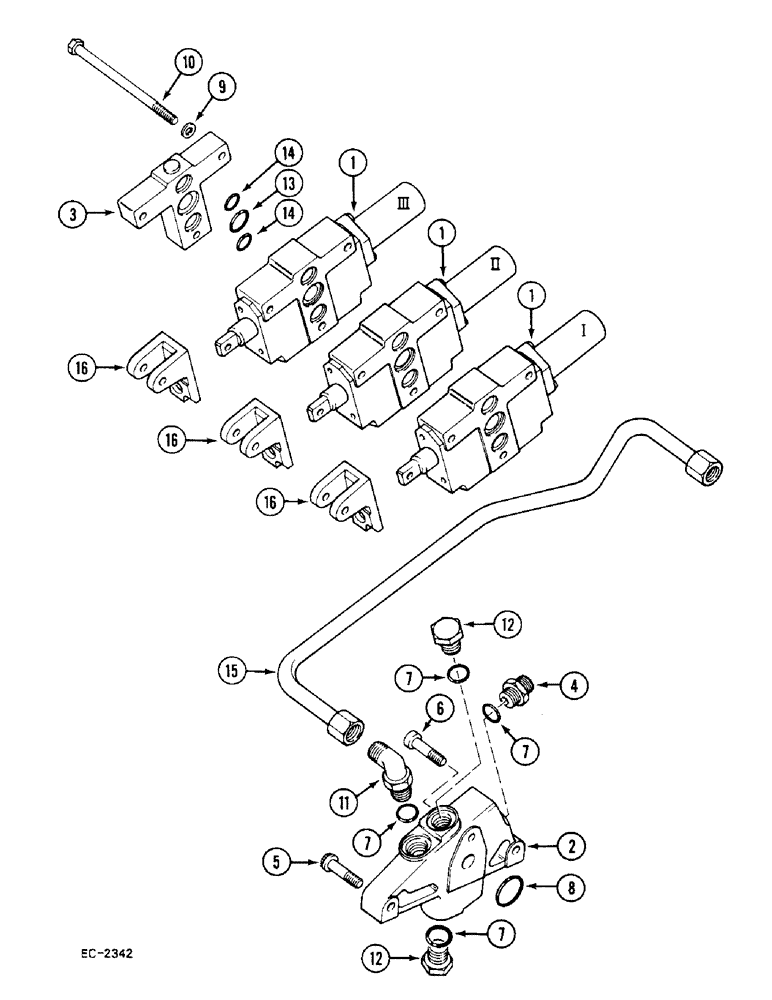

Запчасти Case IH 248 (8-670) - AUXILIARY VALVES - "BOSCH" (08) - HYDRAULICS

1

1287379C91

VALVE

ASSEMBLY, double acting without check valves

1шт.

1

1287384C91

VALVE

ASSEMBLY, double acting with 1 check valve

1шт.

1

1287385C92

VALVE

ASSEMBLY, double acting with 2 check valves, models 385, 485, 585 tractor

1шт.

2

94070C1

PLATE

BLOCK

1шт.

3

89464C91

COVER

ASSEMBLY

1шт.

4

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

5

347756R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

3/8 x 1-3/4 inch

2шт.

6

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

8

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1шт.

9

30175R1

WASHER,M8 x 17.5 x 2, HT

3шт.

10

31291R1

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

BOLT, M8 x 80 mm

3шт.

10

931628R1

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

BOLT, M8 x 120 mm

3шт.

10

31252R1

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

BOLT, M8 x 160 mm

3шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree

1шт.

12

9410360

PLUG

2шт.

13

1328393C1

O-RING,2.5mm Thk x 26mm ID

26 x 2.5 mm

1шт.

14

1328382C1

O-RING,2.5mm Thk x 18mm ID

2шт.

15

1956743C1

HYD TUBE,0.625" OD

TUBE ASSEMBLY

1шт.

16

1958026C1

BRACKET

1шт.

933833R1

LOCK WASHER,M6

2шт.

1958025C1

SCREW

2шт.
