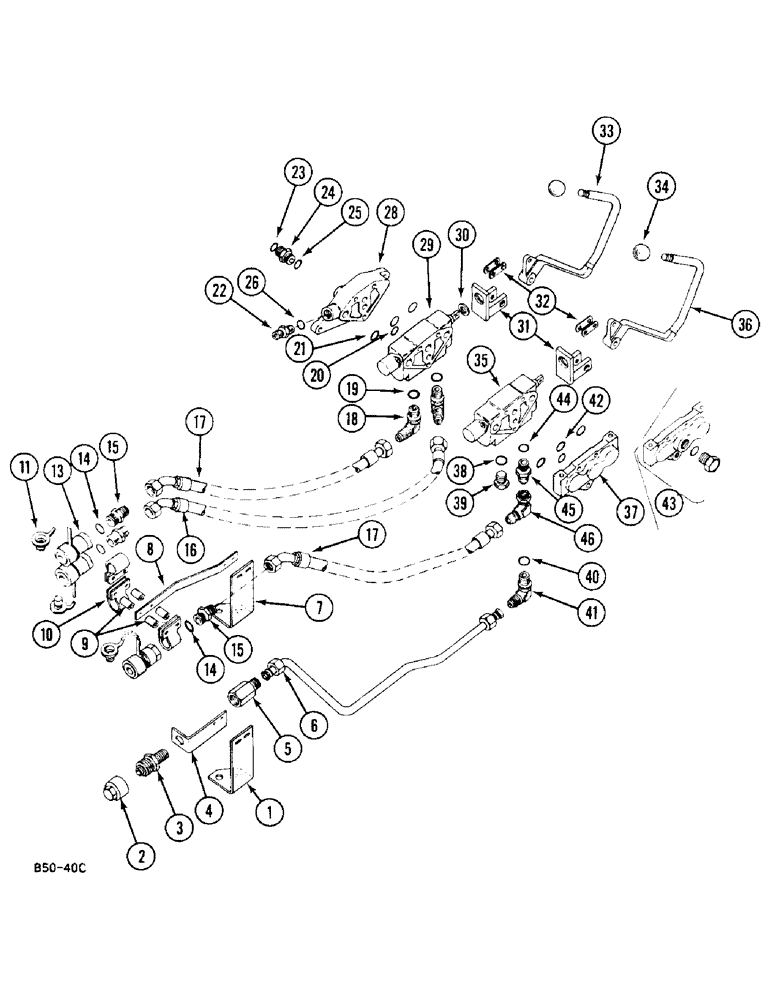

Запчасти Case IH 248 (8-656) - AUXILIARY VALVES - KONTAK/WEST PULLMAN (08) - HYDRAULICS

1(a)

533139R1

BRACKET

ASSEMBLY

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 inch

2шт.

103323

LOCK WASHER,1/2"

2шт.

2(a)

705578R1

CYLINDER END CAP

1шт.

2(a)

3041963R1

CAP

optional

1шт.

3(a)

705579R1

COUPLING

COUPLING

1шт.

3(a)

3041962R91

COUPLING, BREAK AWAY

optional

1шт.

4(a)

533140R1

BRACKET

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

95-11028

WASHER,1/4"

2шт.

5(a)

529708R1

ADAPTER

1шт.

704337R1

SEALING WASHER

2шт.

6(a)

533138R1

TUBE ASSY.

1шт.

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

2шт.

9403451

SLEEVE,37 Degree, 5/8" Tube

2шт.

7

3113436R91

SUPPORT

BRACKET ASSEMBLY, for units B, E, G

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 inch

2шт.

103323

LOCK WASHER,1/2"

2шт.

3113437R1

STRIP

1шт.

8

533143R1

BAR

for units B, E, G

1шт.

NLS

NO LONGER SERVICED

2шт.

103319

LOCK WASHER,1/4"

2шт.

95-11028

WASHER,1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

9(h)

3123061R1

SPACER

4шт.

10

3114106R1

CLAMP

for units B, E, H

1шт.

10(b)

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

For units B,E

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

10(h)

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3/8 inch, models 248, 385, 485 tractor, for units H

2шт.

10

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3/8 inch, model 258 and 585 tractor, for units H

3шт.

11

373220R1

PLUG

1шт.

11

401757R11

PLUG

optional, for units 2, B, E, H

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

12

not used

1шт.

13

3067993R91

COUPLING, BREAK AWAY

quick release, female, for units B, 2, E

1шт.

3115783R1

O-RING

1шт.

3115782R1

BACK-UP RING

1шт.

373220R1

PLUG

1шт.

401757R11

PLUG

optional

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for units B,2, E, G, 2, H

1шт.

15

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

for units B,2, E, G, 2, H

1шт.

16

533141R2

HOSE

for units B, E, G, H

1шт.

17

533142R2

HOSE,12.7mm ID x 610mm L

for units B, G

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90°, for units B,2, E, G, 2

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for units B,2, E, G, 2

1шт.

20

3121945R1

O-RING

for units C, D, H

1шт.

20

3121945R1

O-RING

for units A, B, E, F, G

2шт.

21

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

for units C, D, F

2шт.

21

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

for units A, B, E, F, G

4шт.

22

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

for units A, B, E, F, G

1шт.

23

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

for units A, B, E, F, G

1шт.

24

529705R1

UNION

for units A, B, E, F, G

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for units A, B, E, F, G

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for units A, B, E, F, G

1шт.

27

not used

1шт.

28

3116012R1

BLOCK

for units A, B, E, F, G

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

29

VALVE ASSEMBLY, see single and double acting control valves, for units B, D, G

1шт.

30

529698R1

SEALING RING,15.88mm ID x 23.8mm OD x 7.54mm Thk

1шт.

31

3121840R1

BRACKET

ASSEMBLY

2шт.

186923

HEX SOC SCREW,1/4"-20 x 5/8"

4шт.

3121842R1

SCREW

2шт.

32

529702R1

LINK

4шт.

102776H

CLEVIS PIN,1/4" x 11/16"

4шт.

432-48

COTTER PIN,1/16" x 1/2"

1/16 x 1/2 inch

4шт.

33

3121846R1

LEVER

ASSEMBLY, first bank

1шт.

34

3123087R1

BUTTON

KNOB

1шт.

35

VALVE ASSEMBLY, see single and double acting control valves, for units A, C, E

1шт.

36

3121843R1

LEVER

ASSEMBLY, second bank

1шт.

37

529697R2

PLATE

for units A, B, E, F, G

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

BOLT

2шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2 inch

1шт.

103321

LOCK WASHER,3/8"

For units C, D, H

3шт.

22344R1

BOLT,Hex, 3/8" - 16 x 5 3/4", Gr 5

BOLT

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2 inch

2шт.

103321

LOCK WASHER,3/8"

For units

3шт.

38

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for units C, D, 2, F, G, 2

1шт.

39

9410360

PLUG

for units C, D, 2, F, G, 2

1шт.

40(a)

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41(a)

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree

1шт.

42

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

for units C, D, H

1шт.

42

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

for units A, B, E, F, G

2шт.

43

3123527R91

COVER ASSY

1шт.

3123528R1

PLUG

1шт.

708496R1

SEAL

1шт.

3118797R1

ADAPTER

1шт.

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

44(h)

364885

O-RING

1шт.

45(h)

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

46(h)

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

3067991R91

BREAKER POINTS

ASSEMBLY, consists of: P/N 3067992R91 and P/N 3067993R91, not illustrated

3шт.

3067992R91

COUPLING, BREAK AWAY

quick release, male, not illustrated

3шт.

9410360

PLUG

not illustrated

3шт.

537080R2

PRODUCT GRAPHIC

DECAL, not illustrated

1шт.

1092881R2

DECAL

GRAPHIC product, Francais, not illustrated

1шт.

1092882R2

DECAL

GRAPHIC product, Espanol, not illustrated

1шт.

1092883R2

DECAL

GRAPHIC product, Deutsch, not illustrated

1шт.

1092884R2

DECAL

GRAPHIC product, Svenskt, not illustrated

1шт.

1092885R2

DECAL

GRAPHIC product, Suomi, not illustrated

1шт.

1092886R2

DECAL

GRAPHIC product, Dansk, not illustrated

1шт.

1092887R2

DECAL

GRAPHIC product, Norge, not illustrated

1шт.
