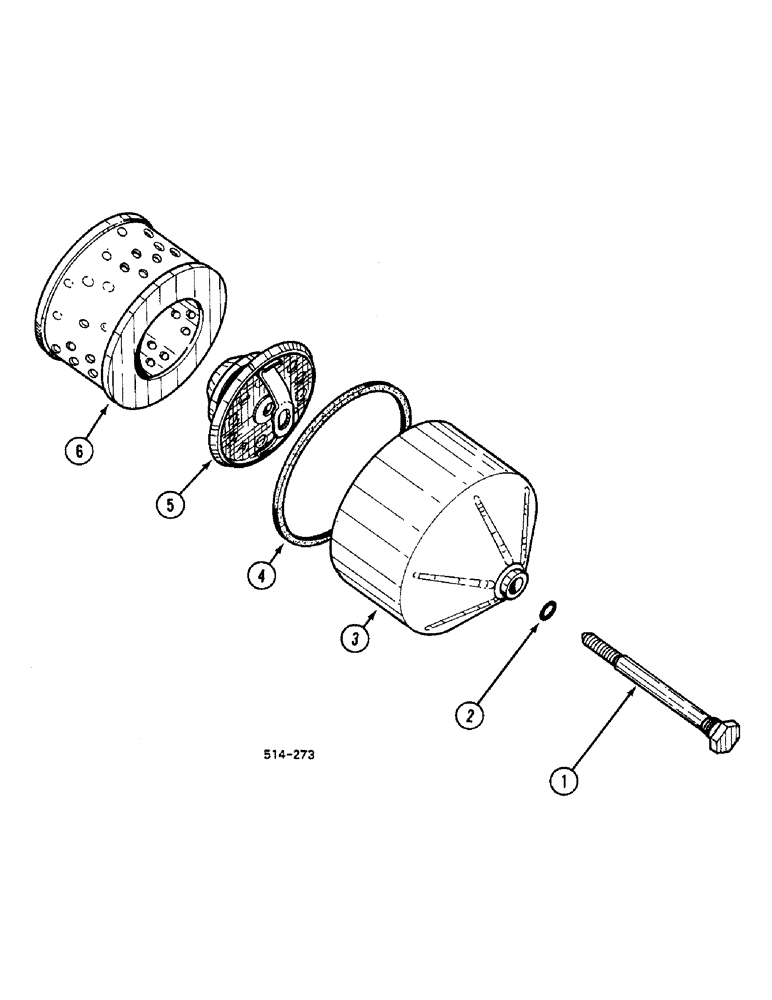

Запчасти Case IH 248 (8-654) - OIL FILTER - HYDRAULIC (08) - HYDRAULICS

1

68202C1

BOLT

BOLT

1шт.

2

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

3

68209C1

CASE

1шт.

4

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

1шт.

5

405464R3

VALVE

ASSEMBLY, bypass with screen

1шт.

6

ELEMENT ASSEMBLY, order: P/N 93413C1

1шт.

93413C1

HYDRAULIC OIL FILTER

PACKAGE, not illustrated

1шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Not Illustrated

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

not illustrated

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

not illustrated

1шт.

ELEMENT ASSEMBLY, not illustrated

1шт.
