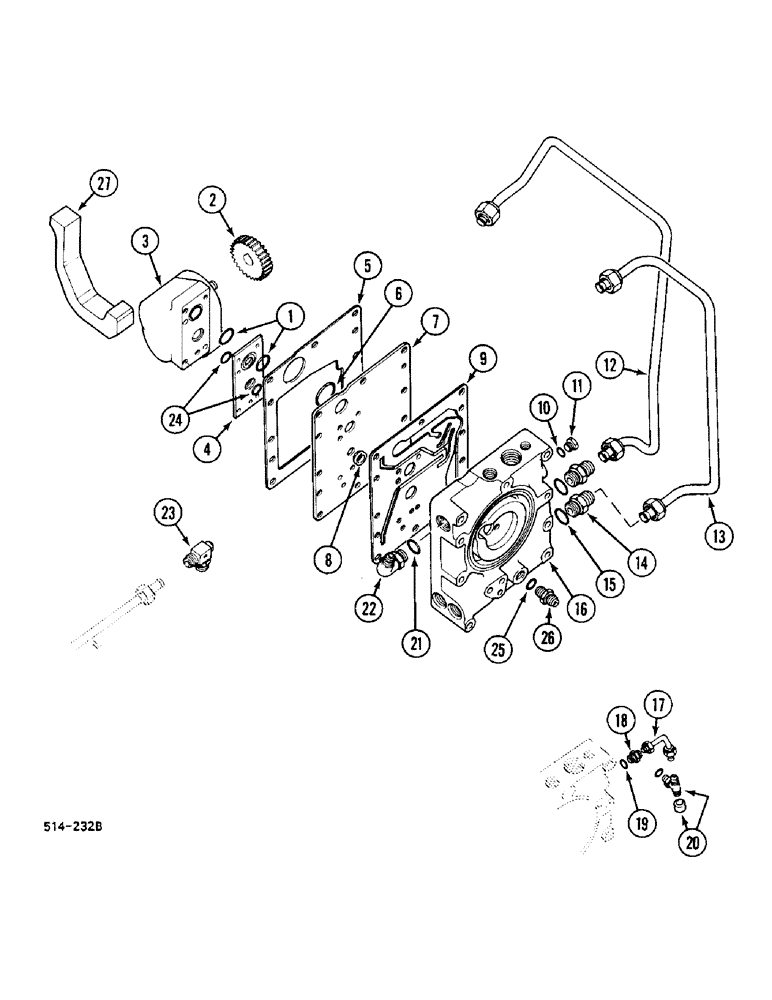

Запчасти Case IH 248 (8-646) - HYDRAULIC POWER SUPPLY AND MULTI-CONTROL VALVE (08) - HYDRAULICS

1

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

pump suction port

1шт.

2

94181C1

GEAR

20 T, model 248 and 258 tractor

1шт.

2

544908R1

GEAR

21 T, models 248, 385, 485, 585 tractor

1шт.

2

406764R1

PINION

GEAR 27 T

1шт.

2

59369C1

GEAR

23 T, driven, models 258, 385, 485, 585 tractor

1шт.

*

19258R1

LOCK NUT,1/2"-20, GB

models 248, 258, 485, 585 tractor

1шт.

2

406793R2

GEAR

20 T, driven, model 385 tractor

1шт.

*

19258R1

LOCK NUT,1/2"-20, GB

model 385 tractor

1шт.

3

93835C91

PUMP, HYDRAULIC

ASSEMBLY, Plessey

1шт.

3

84573150R

REMAN-HYD PUMP

248 CASE IH INDUSTRIAL TRACTOR (S/N 1591 & ON), ASSEMBLY, Plessey (1/86-12/90), Reman for New PN 93835C91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

1502030C1

SEAL KIT

PACKAGE

1шт.

*

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

BOLT, 1/2 x 2 inch

4шт.

*

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

2шт.

*

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

4шт.

*

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

*

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5/16 x 83 mm

4шт.

4

59370C1

LARGE PLATE

PLATE, LARGE

1шт.

4

544909R2

LARGE PLATE

PLATE, LARGE SPACER, models 258, 385, 485, 585 tractor

1шт.

5

401736R3

GASKET

1шт.

6

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1шт.

7

405458R2

LARGE PLATE

PLATE, LARGE

1шт.

8

387926R2

RING

1шт.

9

65000C3

GASKET

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

9410356

PLUG

1шт.

12(a)

1956744C1

HYD TUBE

TUBE ASSEMBLY

1шт.

12(b)

66761C1

TUBE ASSY.

draft control return

1шт.

13

66764C1

PIPE

TUBE ASSEMBLY, MC valve bypass

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

16(a)

94281C91

VALVE

ASSEMBLY

1шт.

16(b)

57714C95

VALVE

ASSEMBLY, see multiple control valve

1шт.

*

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

*

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

1шт.

*

103321

LOCK WASHER,3/8"

10шт.

17(c)

539835R1

TUBE ASSY.

version with IPTO

1шт.

18(c)

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

version with IPTO

1шт.

19(c)

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Version with IPTO

2шт.

20(c)

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

version with IPTO

1шт.

*

9403369

CAP,37 Degree, 7/16"-20

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

90 degree

1шт.

23

1500561C1

ELBOW

1шт.

*

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

pump pressure port

2шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26(a)

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

26(b)

57577C1

CHECK VALVE

1шт.

27

69355C1

SEAL

1шт.

*

69351C1

GLUE

ADHEVSIVE

1шт.

*

537517R1

WASHER

1шт.

*

1502030C1

SEAL KIT

PACKAGE rings, used with P/N 406763R91

1шт.

*

69352C1

SEAL

not illustrated

1шт.

*

RING back-up, not illustrated

1шт.

*

RING pressure loading, not illustrated

2шт.

*

MANUAL, not illustrated

1шт.
