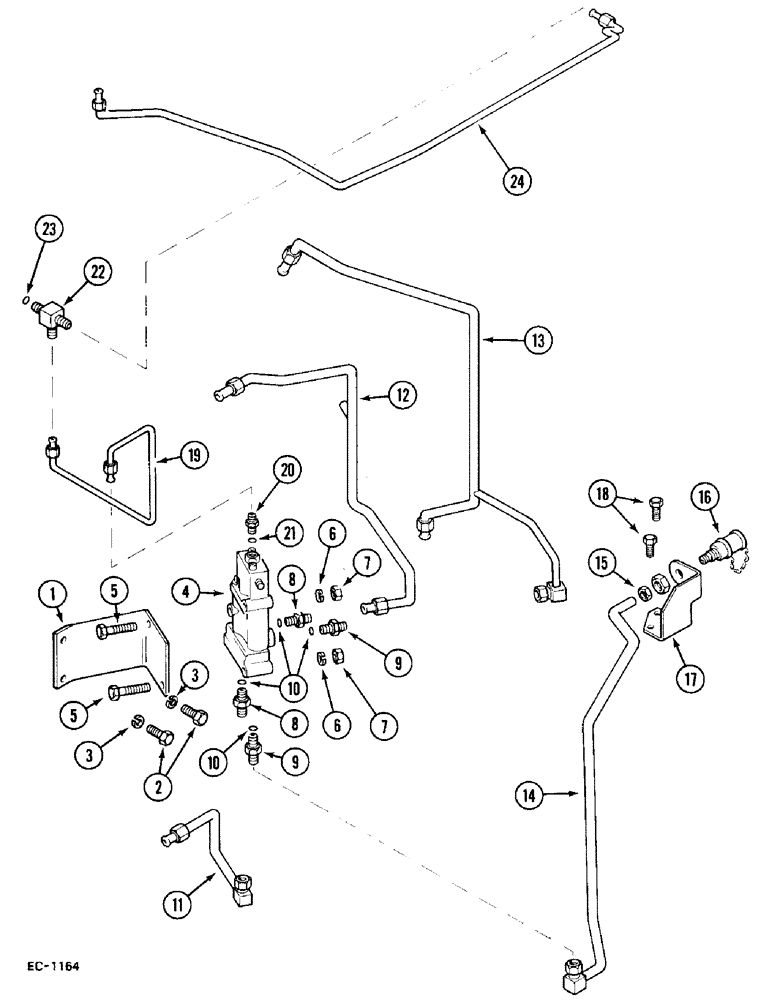

Запчасти Case IH 248 (7-638) - HYDRAULIC TRAILER BRAKE, 248, 258, 385, 485, 585: 18001- (08) - HYDRAULICS

1

99919C1

SUPPORT

BRACKET

1шт.

2

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 inch

2шт.

3

103321

LOCK WASHER,3/8"

2шт.

4

1500659C91

VALVE

ASSEMBLY

1шт.

5

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT, 5/16 x 2-1/2 inch

2шт.

6

80681

LOCK WASHER,5/16"

2шт.

7

120376

NUT,5/16"-18, G5

2шт.

8

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

M18 - 5/8 inch

2шт.

9

1500662C1

ADAPTER,M18 x 1.5 x 3/4"-16, 37 Degree Fl

M18 - 12 mm

2шт.

10

1500663C1

O-RING

4шт.

11

99920C1

PIPE

TUBE

1шт.

12

99921C1

PIPE

TUBE

1шт.

13

1956745C1

HYD TUBE

TUBE

1шт.

14

99925C1

PIPE

TUBE

1шт.

15

1500671C1

NUT

1шт.

1500670C1

SLEEVE

1шт.

16

3131463R91

QUICK MALE COUPLING

ASSEMBLY, Arelco

1шт.

17

99926C1

SUPPORT

BRACKET

1шт.

18

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 inch

2шт.

19

99927C1

TUBE

1шт.

20

1500680C1

ADAPTER,M10 x 1 x 7/16"-20, 37º Fl

1шт.

21

709803R1

SEALING WASHER

1шт.

22

1500687C2

TEE

1шт.

23

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24

99930C1

PIPE

TUBE

1шт.

1135283R1

CAUTION DECAL

PRODUCT graphic, English, not illustrated

1шт.

1135304R1

DECAL

PRODUCT graphic, Norge, not illustrated

1шт.

1135305R1

DECAL

PRODUCT graphic, Suomi, not illustrated

1шт.

1135306R1

DECAL

PRODUCT graphic, Deutsch, not illustrated

1шт.

1135307R1

DECAL

PRODUCT graphic, Espanol, not illustrated

1шт.

1135308R1

DECAL

PRODUCT graphic, Svenskt, not illustrated

1шт.

1135309R1

DECAL

PRODUCT graphic, Dansk, not illustrated

1шт.

1135310R1

DECAL

PRODUCT graphic, Francais, caution, not illustrated

1шт.
