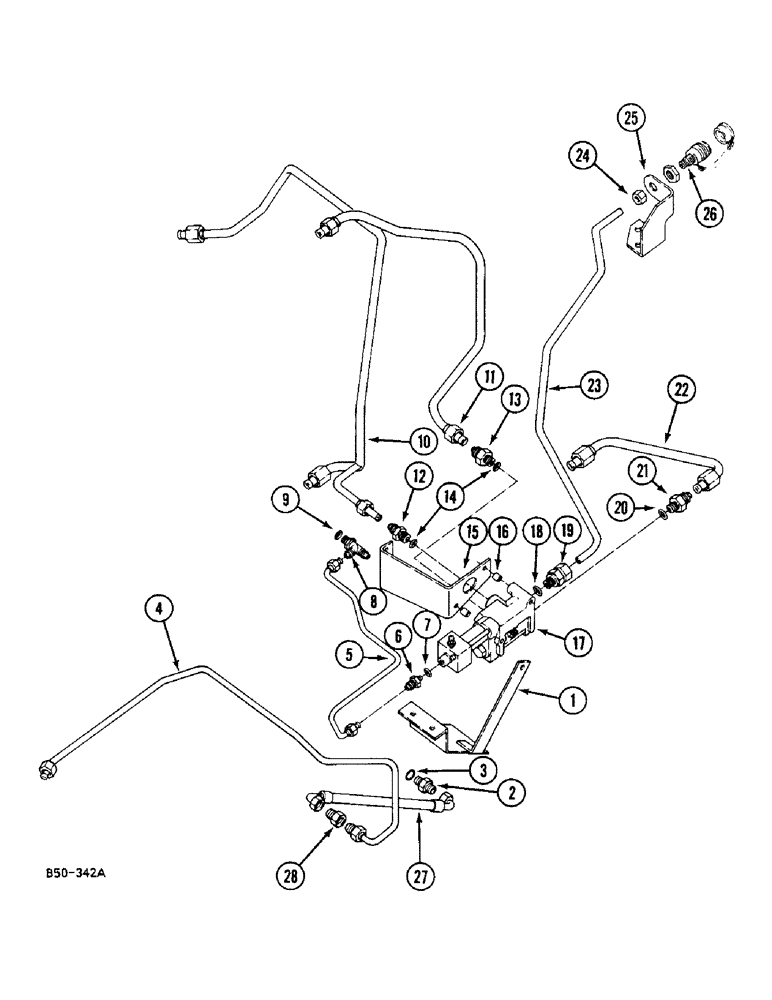

Запчасти Case IH 248 (7-632) - HYDRAULIC TRAILER BRAKE, 485: -9129, 585: -12313 (08) - HYDRAULICS

1

1500676C1

GUARD ASSY.

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, 5/16 x 3/4 inch

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

3шт.

2

1502564C91

VALVE

ASSEMBLY

1шт.

1502565C1

BODY

SPARE PART

1шт.

17010R1

BALL,5/16" Dia

1шт.

1502566C1

SPRING

SPARE PART

1шт.

1502567C1

KIT

RETAINER ASSEMBLY

1шт.

1502568C1

RETAINER

1шт.

17164R1

LOCK PIN,3/32" x 7/16", Slotted

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

1502293C1

TUBE

ASSEMBLY

1шт.

5

1500679C1

TUBE ASSY.,6.35 mm OD, 2049, 205 mm Length

brake to valve

1шт.

6

1500680C1

ADAPTER,M10 x 1 x 7/16"-20, 37º Fl

1шт.

7

709803R1

SEALING WASHER

WASHER

1шт.

8

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

1шт.

9

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

1500669C1

TUBE ASSY.,15.8 mm OD, 325.5, 140.2 mm Length

draft return

1шт.

11

1500667C1

TUBE ASSY.

1шт.

12

1500662C1

ADAPTER,M18 x 1.5 x 3/4"-16, 37 Degree Fl

M18 - 12 mm

1шт.

13

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

M18 - 5/8 inch

1шт.

14

1500663C1

O-RING

2шт.

15

1500658C1

BRACKET

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 inch

2шт.

16

23323H

SPACER,1/4" Pipe x 1/2"

2шт.

17

1500659C91

VALVE

ASSEMBLY, Bosch, 0538008316

1шт.

17

1500660C91

VALVE

ASSEMBLY, Hailwood - Ackroyd, H80641

1шт.

179830

BOLT, 5/16 x 3/8 inch

2шт.

80681

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

1500663C1

O-RING

1шт.

19

1500673C1

ADAPTER,M18 x 1.5 x M12 Tube w/Nut

1шт.

20

1500663C1

O-RING

1шт.

21

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

M18 - 5/8 inch

1шт.

22

1500664C1

TUBE ASSY.,15.88 mm OD, 235, 136 mm Length

SPARE PART

1шт.

23

1500668C1

TUBE,12 mm OD, 397, 316.7 mm Length

SPARE PART valve to coupling

1шт.

24

1500671C1

NUT

1шт.

1500670C1

SLEEVE

1шт.

25

1500675C1

BRACKET

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 inch

2шт.

26

3131463R91

QUICK MALE COUPLING

ASSEMBLY, Arelco

1шт.

27

1502562C1

HYDRAULIC HOSE

1шт.

28

1502561C1

ADAPTER

1шт.

1135283R1

CAUTION DECAL

PRODUCT graphic, caution, English, not illustrated

1шт.

1135304R1

DECAL

PRODUCT graphic, caution, Norge, not illustrated

1шт.

1135306R1

DECAL

PRODUCT graphic, caution, Deutsch, not illustrated

1шт.

1135307R1

DECAL

PRODUCT graphic, caution, Espanol, not illustrated

1шт.

1135308R1

DECAL

PRODUCT graphic, caution, Svenskt, not illustrated

1шт.

1135309R1

DECAL

PRODUCT graphic, caution, Dansk, not illustrated

1шт.

1135309R1

DECAL

PRODUCT graphic, caution, Dansk, not illustrated

1шт.

1135310R1

DECAL

PRODUCT graphic, caution, Francais, caution, not illustrated

1шт.
