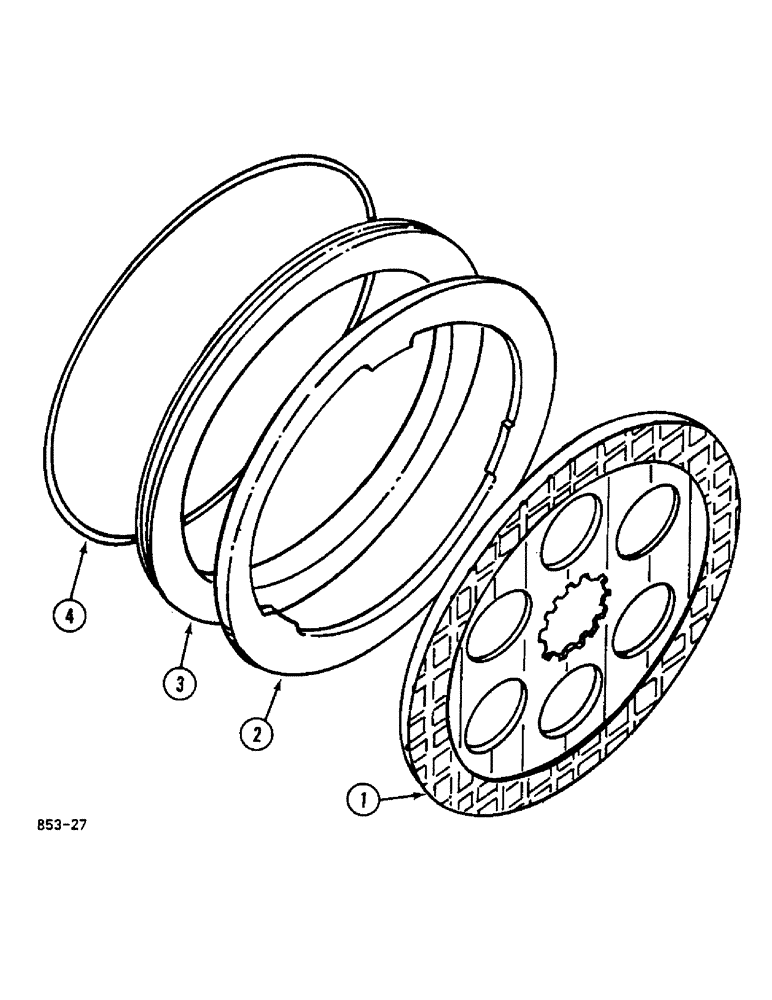

Запчасти Case IH 248 (7-630) - BRAKES (07) - BRAKES

1

114622C1

BRAKE DISC

2шт.

2

399736R3

RING

2шт.

3

114621C1

PISTON

PLATE actuating

2шт.

4

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

2шт.

539535R91

O-RING KIT

PACKAGE, brake "O" ring service, not illustrated

1шт.

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

not illustrated

2шт.

Part of Brake Kit P/N 539535R91

1шт.

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

not illustrated

2шт.

Part of Brake Kit P/N 539535R91

1шт.

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

not illustrated

2шт.

Part of Brake Kit P/N 539535R91

1шт.
