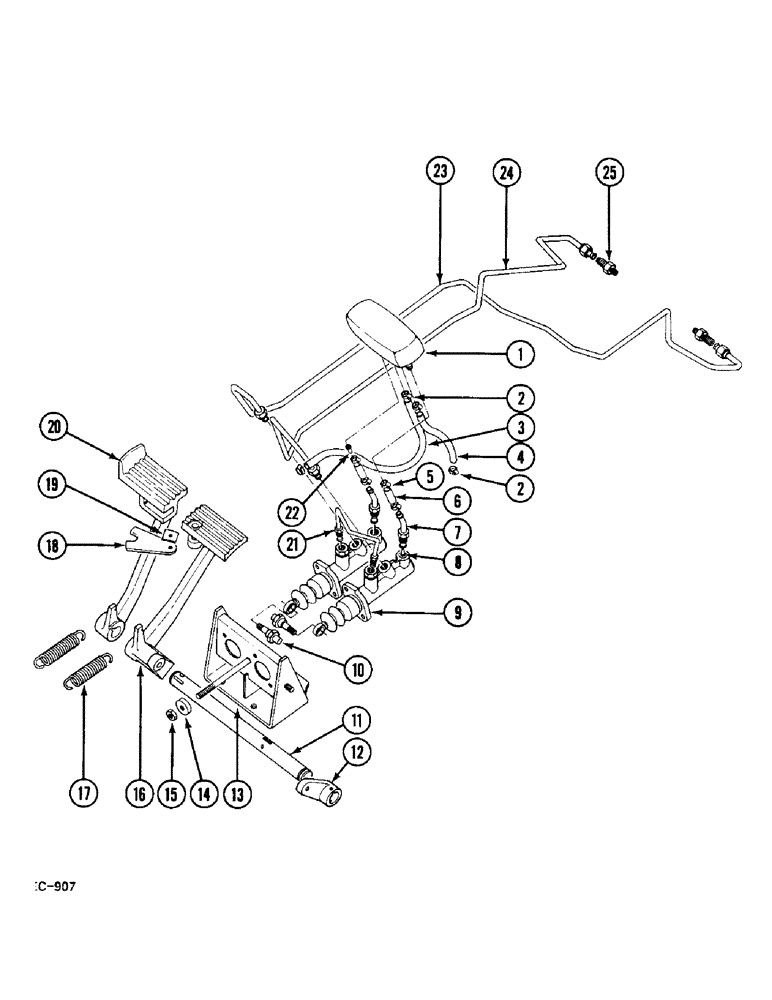

Запчасти Case IH 248 (7-626) - BRAKE CYLINDER AND CONNECTIONS (07) - BRAKES

1

3129644R1

RESERVOIR

1шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

2шт.

3074617R1

CLAMP

hose, optional

2шт.

3

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

1шт.

4

1288340C1

HOSE

dump

1шт.

5

3125239R1

COLLAR

hose

6шт.

60

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

7

98804C1

BRAKE LINE

TUBE ASSEMBLY, right

1шт.

7

98805C1

BRAKE LINE

TUBE ASSEMBLY, left

1шт.

8

537849R2

SCREEN

ASSEMBLY, with orifice

2шт.

9

1287843C91

MASTER CYLINDER

CYLINDER,MASTER

2шт.

1288242C1

BELLOWS

BOOT

2шт.

1288228C1

REPAIR KIT

SEALS

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

10

399744R1

BOLT

BOLT adjusting

2шт.

103321

LOCK WASHER,3/8"

2шт.

103026

NUT,3/8"-24, G5

2шт.

11

1500753C1

SHAFT

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

2шт.

12

1500755C1

ARM

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1/4" x 1 1/2", Coiled

1шт.

13

1970643C1

BRACKET

models 248, 385, 485 tractor

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

14

1970644C1

PLATE

STOP

1шт.

15

894980H1

LOCK NUT

1шт.

16

3125226R91

PEDAL ASSY.

left

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

17

3125230R1

SPRING

2шт.

18

43751DB

LATCH, PEDALS

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1шт.

19

51293D

SPRING

leaf

1шт.

20

1500752C1

PEDAL

right

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

21

1287847C2

BRAKE LINE,4.78 mm OD, 79, 65 mm Length

equalizer

1шт.

22

537518R1

SCREEN

ASSEMBLY, with orifice

1шт.

23

1956753C1

PIPE

ASSEMBLY, Start Serial: 18001

1шт.

1282572C3

PIPE,8" OD, 350, 263 mm Length

TUBE ASSEMBLY, left

1шт.

24

1282573C2

BRAKE LINE

TUBE ASSEMBLY, right

1шт.

25

3129671R1

FITTING

ADAPTOR

2шт.
