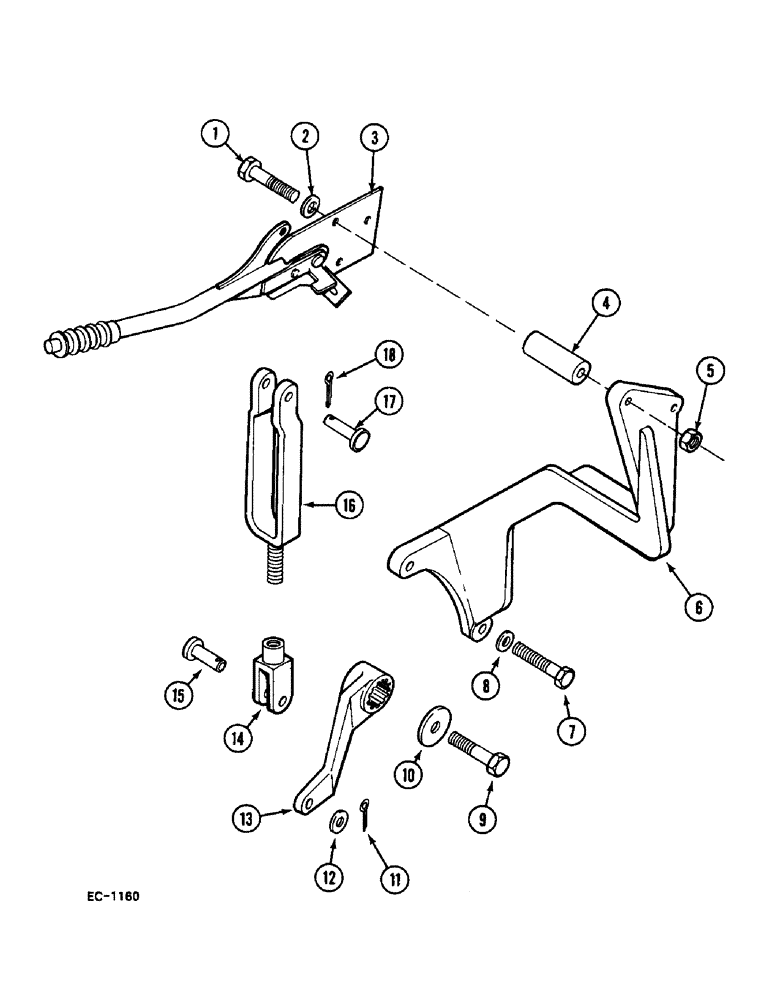

Запчасти Case IH 248 (7-620) - PARK LOCK LINKAGE - HEAVY DUTY, 248, 258, 485, 585: 18001- (07) - BRAKES

1(a)

931431

BOLT

3шт.

1(b)

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 inch, model 485 tractor

1шт.

2

120382

LOCK WASHER,Helical Spring, 3/8"

3шт.

25724R1

WASHER

SPACER, model 485 tractor

3шт.

3

LEVER ASSEMBLY, heavy duty, see park brake hand lever

1шт.

4(b)

99436C1

SPACER

3шт.

5

120377

NUT,3/8" - 16, Gr 5

3шт.

6(a)

99516C1

SUPPORT

1шт.

7(a)

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

BOLT, 3/8 x 3-1/2 inch

3шт.

8(a)

103321

LOCK WASHER,3/8"

3шт.

9

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

BOLT

1шт.

10

3102893R1

WASHER

1шт.

11

934896R1

COTTER PIN,M3.2 x 20

1шт.

12

30176R1

WASHER,M10 x 21.5 x 2.5, HT

1шт.

13

99435C3

ARM

1шт.

14

30791R1

CLEVIS

1шт.

30168R1

NUT,M10, Cl 10

M10, model 248 and 485 tractor

1шт.

15

30387R1

SPLIT PIN/SAFETY PIN

M10 x 30 mm

1шт.

16

1330987C2

CLEVIS

ASSEMBLY

1шт.

17

31248R1

DISC

PIN

1шт.

18

934896R1

COTTER PIN,M3.2 x 20

1шт.
