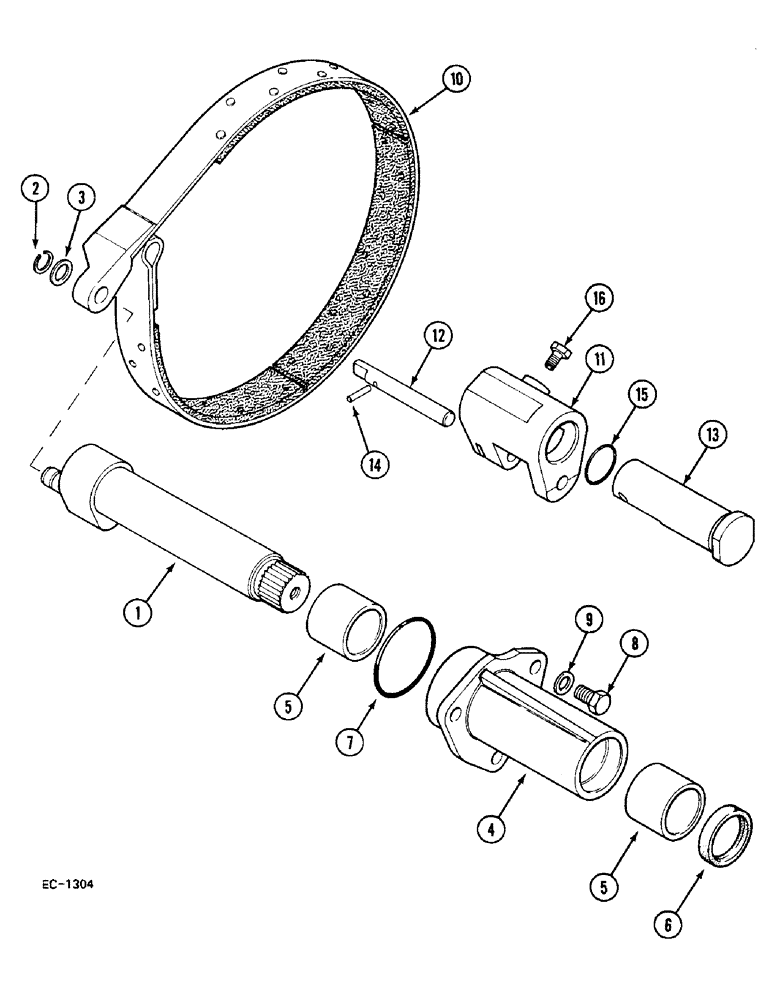

Запчасти Case IH 248 (7-618) - PARK LOCK - HEAVY DUTY, 248, 258, 485, 585: 18001- (07) - BRAKES

1

94328C1

SHAFT

1шт.

2

347425R1

SNAP RING,#62, .586", Ext

retaining

1шт.

3

1335386C1

WASHER

1шт.

4

94329C91

PIVOT

with Ref. 5, 6

1шт.

5

3073285R1

BUSHING

2шт.

6

126214C91

OIL SEAL

1шт.

7

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

8

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

9

103320

LOCK WASHER,5/16"

3шт.

10

86164C1

BAND

ASSEMBLY

1шт.

11

94061C1

PIVOT

HANGER

1шт.

12

30243R1

COTTER PIN,M4 x 25

1шт.

13

94062C1

SHAFT

1шт.

14

88655C1

PIN

1шт.

15

30606R1

O-RING,2.65mm Thk x 30mm ID, Cl 5, 75 Duro

2шт.

16

30020R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

BOLT, M10 x 25 mm

1шт.
