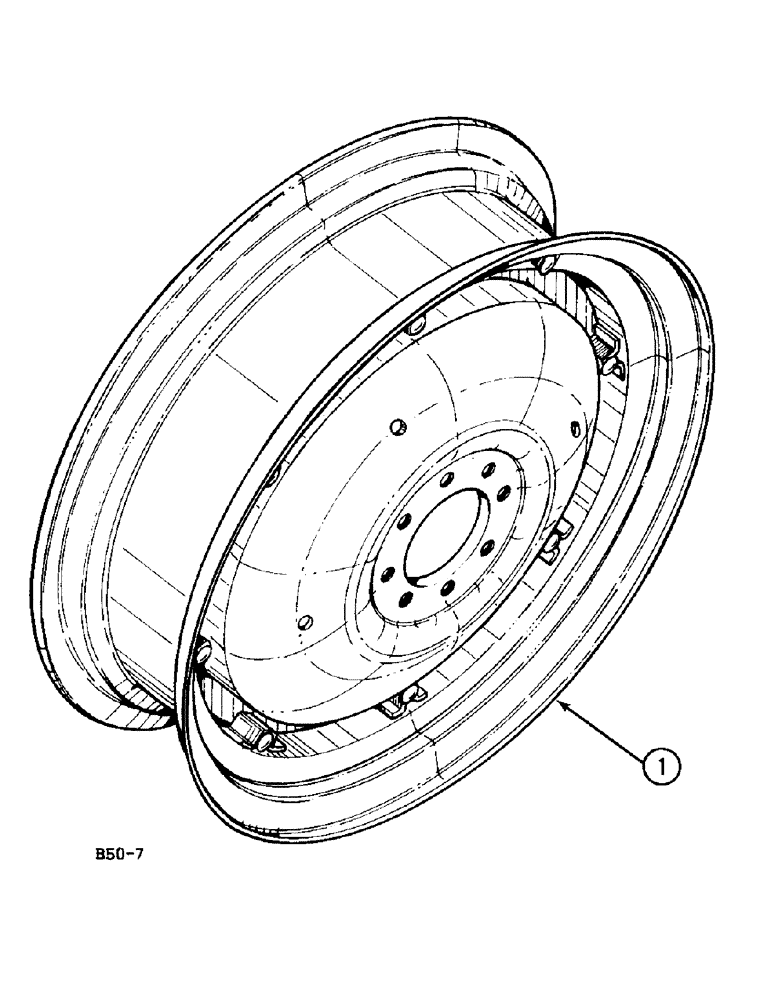

Запчасти Case IH 248 (9-938) - REAR WHEELS (06) - POWER TRAIN

1

1332728C1

WHEEL ASSY.

DW14 x 30, model 485 and 585 tractor

2шт.

1

1502046C92

WHEEL

ASSEMBLY, optional, DW14 x 30, for tires 14-30/16.9 x 30, 15-30/18 x 30, model 485 and 585 tractor

2шт.

1332736C1

RIM

WHEEL models 258, 385, 485, 585 tractor

2шт.

1332734C1

DISC, WHEEL

models 258, 385, 485, 585 tractor

2шт.

1

1332726C1

WHEEL ASSY

W12 x 28, model 248 tractor

2шт.

1

1502045C92

WHEEL ASSEMBLY, tires, W12 x 28, optional, for tires 13.6 x 28, model 248 and 485 tractor

2шт.

1332733C1

RIM

WHEEL model 248 tractor

2шт.

1332734C1

DISC, WHEEL

model 248 tractor

2шт.

1

1332727C1

WHEEL ASSY.

W13 x 28, for tires 14.9 x 28

2шт.

1332735C1

RIM

WHEEL wheel

2шт.

1332734C1

DISC, WHEEL

2шт.

1332730C1

BOLT,M16 x 790mm, Gr 8.8

BOLT

16шт.

1332731C1

WASHER

16шт.

1332732C1

NUT

16шт.

1

1265240C92

WHEEL

ASSEMBLY, W11 x 36, for tires 12.4 x 36/13.6 x 36, models 258, 385, 485, 585 tractor

2шт.

1265241C1

RIM

WHEEL model 258 tractor

2шт.

1265241C1

RIM

WHEEL model 385 tractor

2шт.

1265241C1

RIM

WHEEL model 485 tractor

2шт.

1265241C1

RIM

WHEEL model 585 tractor

2шт.

1265242C1

DISC, WHEEL

model 258 tractor

2шт.

1265242C1

DISC, WHEEL

model 385 tractor

2шт.

1265242C1

DISC, WHEEL

model 485 tractor

2шт.

1265242C1

DISC, WHEEL

model 585 tractor

2шт.

1

1265245C92

WHEEL

ASSEMBLY, W10 x 32, for tires 12.4 x 32, models 248, 385, 485 tractor

2шт.

1265246C1

RIM

WHEEL models 248, 385, 485 tractor

2шт.

1265239C1

DISC, WHEEL

models 248, 385, 485 tractor

2шт.

1265243C92

WHEEL

ASSEMBLY, DW11 x 38, for tires 12.4/13.6 x 38, model 585 tractor

2шт.

1265244C1

RIM

WHEEL model 585 tractor

2шт.

1265242C1

DISC, WHEEL

model 585 tractor

2шт.

1265255C2

BOLT

16шт.

30329R1

WASHER,M17.5 x 30 x 4, HT

16шт.

30583

16шт.

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT

16шт.

1332731C1

WASHER

16шт.

1332732C1

NUT

optional

16шт.

1

1332729C1

WHEEL ASSY.

W15L x 30, model 585 tractor

2шт.

1332737C1

RIM

WHEEL model 585 tractor

2шт.

1332738C1

DISC, WHEEL

model 585 tractor

2шт.

1332730C1

BOLT,M16 x 790mm, Gr 8.8

BOLT, model 585 tractor

16шт.

1332731C1

WASHER

model 585 tractor

16шт.

1

1332942C1

WHEEL ASSEMBLY, W12-24, models 248, 385, 485 tractor

1шт.

1

3113106R91

WHEEL ASSY.

W12-30, model 585 tractor

2шт.

3116539R1

RIM

WHEEL model 585 tractor

2шт.

3116404R1

DISC

model 585 tractor

2шт.

3116403R2

BOLT

model 585 tractor

12шт.

934233R1

LOCK WASHER

model 585 tractor

12шт.

102639

NUT,5/8"-11, G5

Model 585 tractor

12шт.
