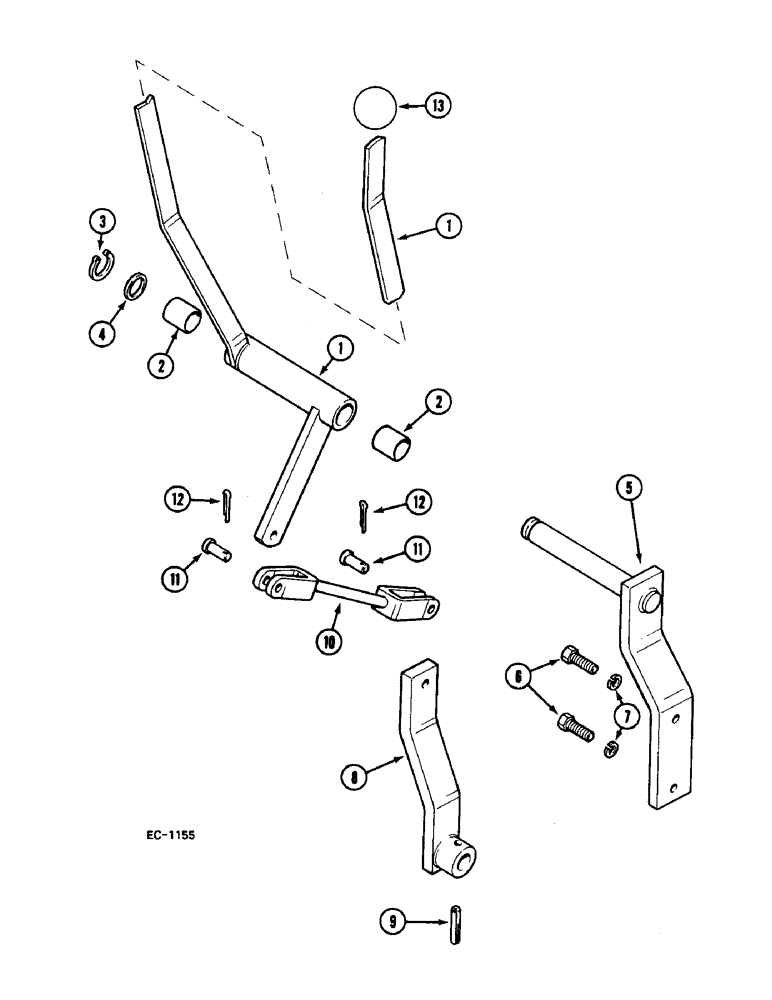

Запчасти Case IH 248 (6-610) - CONTROL LEVER - 4 WHEEL DRIVE, APL 325, 330, 335 (06) - POWER TRAIN

1

82413C1

ARM

with 2, model 258 tractor

1шт.

2

3057214R1

BUSHING

2шт.

3

933128R1

SNAP RING,M25, Ext

retaining

1шт.

4

933585R1

WASHER,Ext Tab, M10.5 ID x 26 OD x 1 Thk

PLATE locking

1шт.

5

82419C1

ARM

1шт.

6

179842

SPACER

BOLT, 3/8 x 35 mm

2шт.

7

103321

LOCK WASHER,3/8"

2шт.

8

82417C1

ARM

1шт.

9

Q2932

LOCK PIN,M8 x 36, Slotted

1шт.

10

82416C1

ROD

1шт.

11

103496

CLEVIS PIN,3/8" x 1.060"

2шт.

12

103373

COTTER PIN,3/32" x 3/4"

2шт.

13

3134919R2

KNOB

KNOB, not illustrated

1шт.

1328614C1

DECAL

PRODUCT graphic, not illustrated

1шт.

99861C1

DECAL

PRODUCT graphic, English, not illustrated

1шт.

99862C1

DECAL

PRODUCT graphic, Francaise, not illustrated

1шт.

99900C1

DECAL

PRODUCT graphic, Espanol, not illustrated

1шт.

99901C1

DECAL

PRODUCT graphic, Deutsch, not illustrated

1шт.

99902C1

DECAL

PRODUCT graphic, Svenskt, not illustrated

1шт.

99903C1

DECAL

PRODUCT graphic, Suomi, not illustrated

1шт.

99904C1

DECAL

PRODUCT graphic, Dansk, not illustrated

1шт.

99905C1

DECAL

PRODUCT graphic, Norge, lubrication, not illustrated

1шт.
