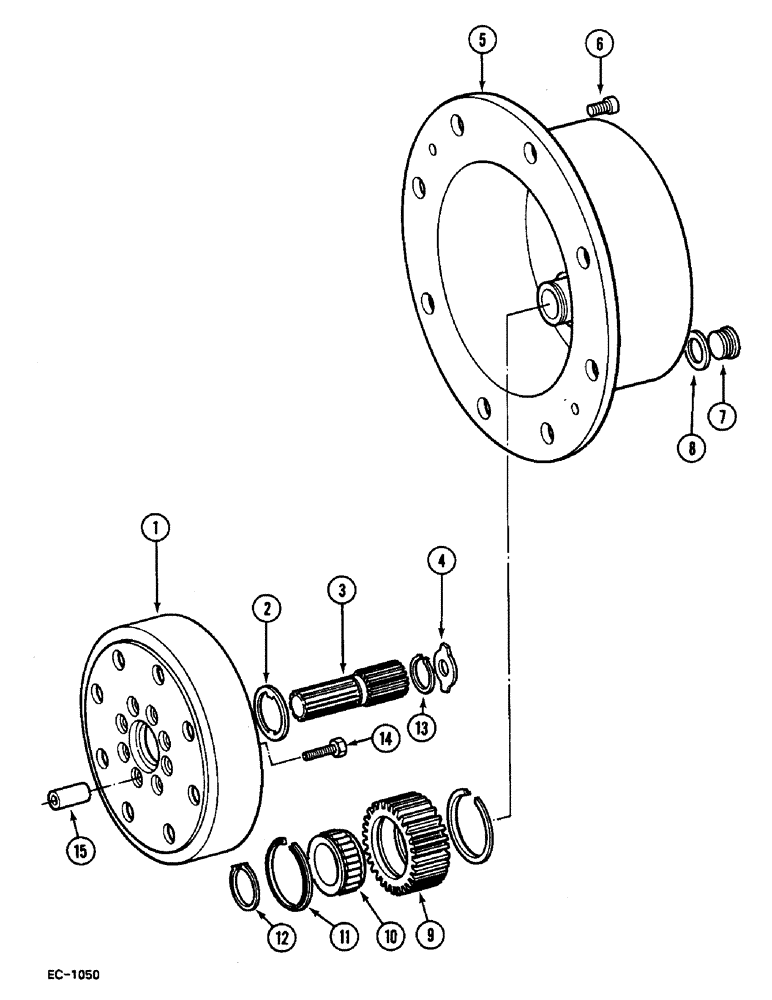

Запчасти Case IH 248 (6-584) - HUB PLANETARY DRIVE - 4 WHEEL DRIVE, 258, 485, 585 (06) - POWER TRAIN

81451C91

GEAR WHEEL

DRIVE ASSEMBLY, APL-325, consists of: Ref. 1A, 2, 3A, 4, 5A, 6 thru 8, 9A, and 10 thru 15, model 485 and 585 tractor

1шт.

81445C91

GEAR WHEEL

DRIVE ASSEMBLY, APL-325, consists of: Ref. 1B, 2, 3B, 4, 5B, 6 thru 8, 9B, and 10 thru 15, model 258 tractor

1шт.

81433C91

GEAR WHEEL

DRIVE ASSEMBLY, APL-325, consists of: Ref. 1B, 2, 3B, 4, 5B, 6 thru 8, 9B, and 10 thru 15, model 485 tractor

1шт.

1(a)

81452C1

GEAR, RING

RING, GEAR APL 325, model 485 tractor

2шт.

1(b)

81434C1

HUB

APL 330

2шт.

2

81436C1

THRUST WASHER

2шт.

3(a)

81453C1

SUN GEAR

SHAFT, APL 325, model 258 and 485 tractor

2шт.

3(b)

81435C1

SUN GEAR

SHAFT, APL 330

2шт.

4

81328C1

THRUST WASHER

1.5 mm

2шт.

81329C1

THRUST WASHER

2.0 mm

2шт.

81330C1

THRUST WASHER

2.5 mm

2шт.

81331C1

THRUST WASHER

1.0 mm

2шт.

81332C1

THRUST WASHER

1.7 mm

2шт.

81333C1

THRUST WASHER

2.2 mm

2шт.

5(a)

81454C1

PINION CARRIER

GEAR CARRIER APL 325, model 485 tractor

2шт.

5(b)

81437C1

PINION CARRIER

GEAR CARRIER APL 330, model 258 tractor

2шт.

6

81334C1

HEX SOC SCREW,M10 x 20mm

model 258 tractor

4шт.

7

933799R1

PLUG,Hex Soc, M24 x 1.5

Model 258 tractor

2шт.

8

A52097

O-RING,2mm Thk x 21mm ID

model 258 tractor

2шт.

8

A52097

O-RING,2mm Thk x 21mm ID

model 585 tractor

2шт.

9(a)

81455C1

GEAR, PLANETARY

GEAR, PLANET APL 325, model 485 tractor

6шт.

9(b)

81325C1

GEAR

APL 330, model 258 tractor

6шт.

10

81326C1

BEARING, ROLLER,36mm ID x 56.3mm OD x 20mm W

model 485 and 585 tractor

6шт.

11

81327C1

RING

12шт.

12

933086R1

SNAP RING,M30, Ext

Retaining

6шт.

13

933113R1

SNAP RING,M35, Ext, Hvy

retaining

2шт.

14

81432C1

BOLT,Lock, M10 x 45mm

16шт.

15

81431C1

BUSHING

16шт.
