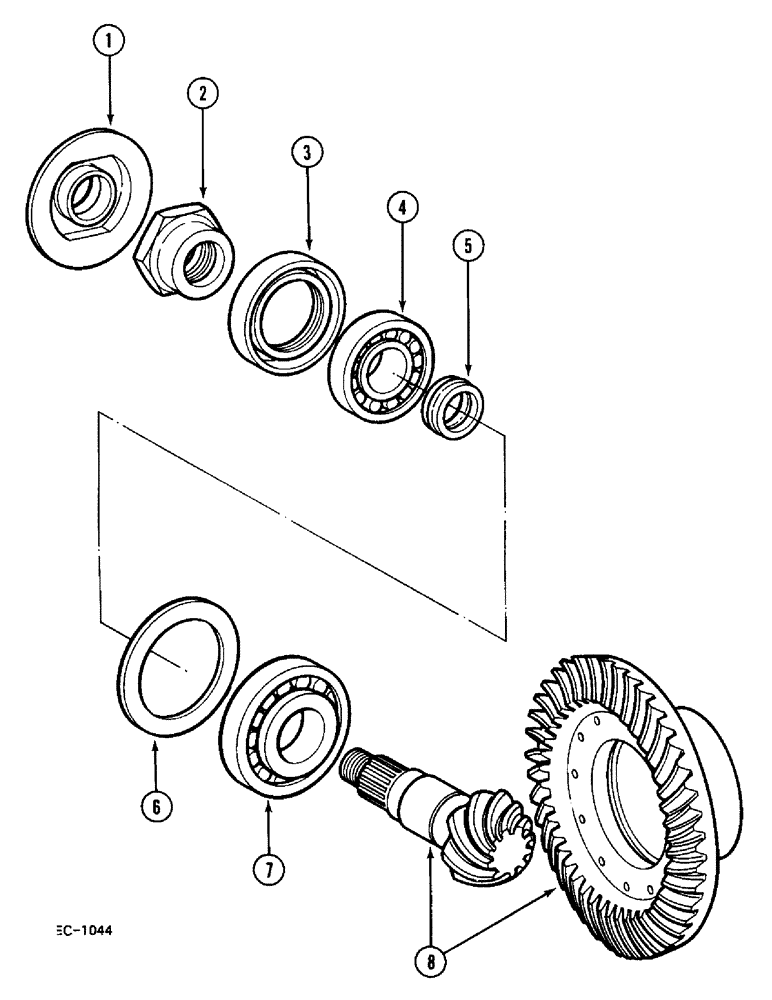

Запчасти Case IH 248 (6-558) - DRIVE ASSEMBLY - 4 WHEEL DRIVE, 248, 485, 585 (06) - POWER TRAIN

81447C91

HOUSING ASSY.

DRIVE APL 325, model 485 and 585 tractor

1шт.

81439C91

HOUSING ASSY.

DRIVE APL 330, model 258 and 585 tractor

1шт.

81364C91

DRIVE ASSY.

APL 330, model 485 tractor

1шт.

81195C91

DRIVE

APL 335, model 258 tractor

1шт.

1(a)

81398C1

PLATE, LOCKING

APL 325, 330

1шт.

1(b)

81235C1

PLATE

locking, APL-335

1шт.

2(a)

81397C1

NUT

APL 325, 330

1шт.

2(b)

81234C1

NUT

APL 335, model 258 tractor

1шт.

3(a)

81396C1

SEAL

APL 325, 330

1шт.

3(b)

81233C1

SEAL,45mm ID x 70mm OD x 10mm Thk

APL 335, model 258 tractor

1шт.

4(a)

3404470R1

BEARING

cup, APL 325, 330

1шт.

81395C1

BEARING, ROLLER

cone, APL 325, 330

1шт.

4(b)

81231C1

RACE

cup, APL 335, model 258 tractor

1шт.

81232C1

RACE

cone, APL 335, model 258 tractor

1шт.

5(a)

81380C1

RING

11.0 mm, APL 325, 330

1шт.

81381C1

RING

11.1 mm, APL 325, 330

1шт.

81382C1

RING

11.2 mm, APL 325, 330

1шт.

81383C1

RING

11.3 mm, APL 325, 330

1шт.

81384C1

RING

11.4 mm, APL 325, 330

1шт.

81385C1

RING

11.5 mm, APL 325, 330

1шт.

81386C1

RING

11.6 mm, APL 325, 330

1шт.

81387C1

RING

11.7 mm, APL 325, 330

1шт.

81388C1

RING

11.8 mm, APL 325, 330

1шт.

81389C1

RING

11.9 mm, APL 325, 330

1шт.

81390C1

RING

12.0 mm, APL 325, 330

1шт.

81391C1

RING

12.1 mm, APL 325, 330

1шт.

81392C1

RING

12.2 mm, APL 325, 330

1шт.

81393C1

RING

12.3 mm, APL 325, 330

1шт.

81394C1

RING

12.4 mm, APL 325, 330

1шт.

5(b)

81216C1

RING

11.0 mm, APL 335, model 258 tractor

1шт.

81217C1

RING

11.1 mm, APL 335, model 258 tractor

1шт.

81218C1

RING

11.2 mm, APL 335, model 258 tractor

1шт.

81219C1

RING

11.3 mm, APL 335, model 258 tractor

1шт.

81220C1

RING

11.4 mm, APL 335, model 258 tractor

1шт.

81221C1

RING

11.5 mm, APL 335, model 258 tractor

1шт.

81222C1

RING

11.6 mm, APL 335, model 258 tractor

1шт.

81223C1

RING

11.7 mm, APL 335, model 258 tractor

1шт.

81224C1

RING

11.8 mm, APL 335, model 258 tractor

1шт.

81225C1

RING

11.9 mm, APL 335, model 258 tractor

1шт.

81226C1

RING

12.0 mm, APL 335, model 258 tractor

1шт.

81227C1

RING

12.1 mm, APL 335, model 258 tractor

1шт.

81228C1

RING

12.2 mm, APL 335, model 258 tractor

1шт.

81229C1

RING

12.3 mm, APL 335, model 258 tractor

1шт.

81230C1

RING

12.4 mm, APL 335, model 258 tractor

1шт.

6(a)

81366C1

WASHER

DISK, 1.50 mm, APL 325, 330

1шт.

81367C1

SHIM

DISK, 0.90 mm, APL 325, 330

1шт.

81368C1

WASHER

DISK, 0.95 mm, APL 325, 330

1шт.

81369C1

SHIM

DISK, 1.00 mm, APL 325, 330

1шт.

81370C1

SHIM

DISK, 1.05 mm, APL 325, 330

1шт.

81371C1

SHIM

DISK, 1.10 mm, APL 325, 330

1шт.

81372C1

SHIM

DISK, 1.15 mm, APL 325, 330

1шт.

81373C1

SHIM

DISK, 1.20 mm, APL 325, 330

1шт.

81374C1

SHIM

DISK, 1.25 mm, APL 325, 330

1шт.

81375C1

SHIM

DISK, 1.30 mm, APL 325, 330

1шт.

81376C1

SHIM

DISK, 1.35 mm, APL 325, 330

1шт.

81377C1

SHIM

DISK, 1.40 mm, APL 325, 330

1шт.

81378C1

SHIM

DISK, 1.45 mm, APL 325, 330

1шт.

6(b)

81197C1

SHIM

DISK, 1.20 mm, APL 335, model 258 tractor

1шт.

81198C1

DISC

DISK, 0.50 mm, APL 335, model 258 tractor

1шт.

81199C1

DISC

DISK, 0.60 mm, APL 335, model 258 tractor

1шт.

81200C1

DISC

DISK, 0.70 mm, APL 335, model 258 tractor

1шт.

81201C1

DISC

DISK, 0.80 mm, APL 335, model 258 tractor

1шт.

81202C1

DISC

DISK, 0.90 mm, APL 335, model 258 tractor

1шт.

81203C1

SHIM

DISK, 1.00 mm, APL 335, model 258 tractor

1шт.

81204C1

SHIM

DISK, 1.10 mm, APL 335, model 258 tractor

1шт.

81205C1

SHIM

DISK, 1.30 mm, APL 335, model 258 tractor

1шт.

81206C1

ADJUSTING PLATE

DISK, 1.40 mm, APL 335, model 258 tractor

1шт.

81207C1

SHIM

DISK, 1.50 mm, APL 335, model 258 tractor

1шт.

81208C1

SHIM

DISK, 0.65 mm, APL 335, model 258 tractor

1шт.

81209C1

SHIM

DISK, 0.75 mm, APL 335, model 258 tractor

1шт.

81210C1

SHIM

DISK, 0.85 mm, APL 335, model 258 tractor

1шт.

81211C1

SHIM

DISK, 0.95 mm, APL 335, model 258 tractor

1шт.

81212C1

SHIM

DISK, 1.05 mm, APL 335, model 258 tractor

1шт.

81213C1

SHIM

DISK, 1.15 mm, APL 335, model 258 tractor

1шт.

7(a)

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

APL 325, 330

1шт.

7(a)

81379R1

SCREEN

APL 325, 330, BEARING cone

1шт.

7(b)

81214C1

RACE

BEARING cup, APL 335, model 258 tractor

1шт.

7(b)

81215C1

RACE

BEARING cone, APL 335, model 258 tractor

1шт.

8(a)

81365C1

GEAR SET

with drive bevel gear, APL 325, 330

1шт.

8(b)

81196C1

GEAR, BEVEL

BEVEL GEAR SHAFT, with drive bevel gear, APL 335, model 258 tractor

1шт.
