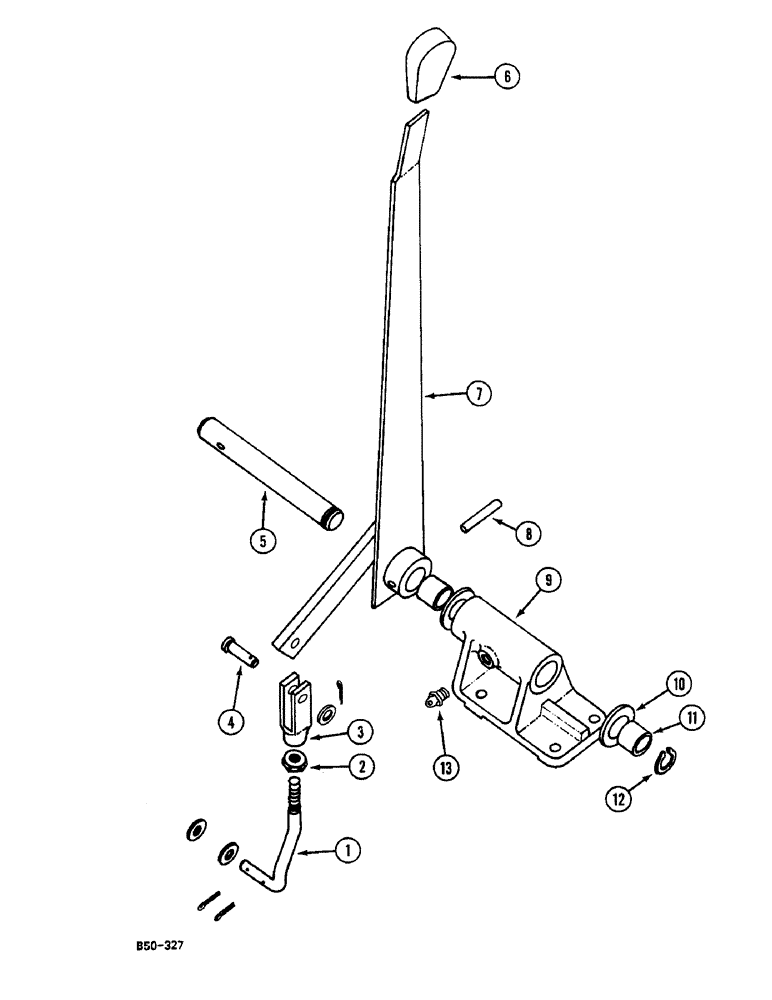

Запчасти Case IH 248 (6-554) - CONTROL LEVER - 4 WHEEL DRIVE -, FOR AXLE "ZF", 258, 585 (06) - POWER TRAIN

1

1500011C1

ROD

1шт.

30282R1

WASHER,M10 x 20 x 2

10 mm

2шт.

934792R1

COTTER PIN,M3.2 x 20

3.2 x 20 mm

2шт.

2

30168R1

NUT,M10, Cl 10

M10

1шт.

3

3129369R1

CLEVIS

1шт.

4

30387R1

SPLIT PIN/SAFETY PIN

M10 x 30 mm

1шт.

30282R1

WASHER,M10 x 20 x 2

10 mm

1шт.

934792R1

COTTER PIN,M3.2 x 20

3.2 x 20 mm

1шт.

5

1500008C1

SHAFT

1шт.

6

3129746R1

BUTTON

KNOB

1шт.

7

1500000C1

LEVER

1шт.

8

Q2935

LOCK PIN,M8 x 45, Slotted

1шт.

9

1500004C91

BRACKET

ASSEMBLY, with 11

1шт.

30284R1

NUT,M10, Cl 10

M10

2шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

M10 x 25 mm

2шт.

933965R1

LOCK WASHER,M10

2шт.

1500763C1

STUD

2шт.

10

1500009C1

SPACER

2шт.

11

405574R1

BUSHING

2шт.

12

545417R1

RING

retaining

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

1шт.

1093130R1

PRODUCT GRAPHIC

SPARE PART caution, not illustrated

1шт.

1093120R1

control, not illustrated

1шт.

1093136R1

PRODUCT GRAPHIC

lubrication, not illustrated

1шт.
