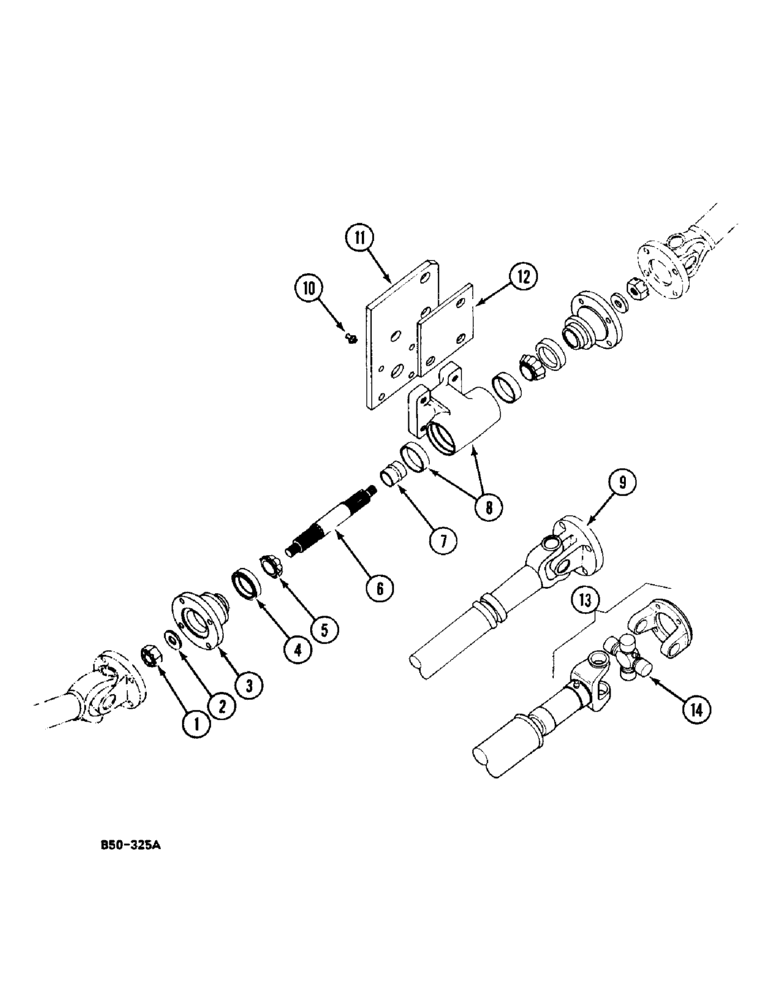

Запчасти Case IH 248 (6-544) - PROPELLER SHAFT - 4 WHEEL DRIVE, 258, 585 (06) - POWER TRAIN

1

1003759C1

NUT,5/8"-18

2шт.

2

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

2шт.

3

3129941R1

FLANGE

2шт.

4

1004318C1

OIL SEAL

2шт.

4

3129946R1

OIL SEAL

SEAL oil, optional

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

6

3129944R1

SHAFT

1шт.

7

3129945R1

SPACER

1шт.

8

3129942R91

BLOCK ASSY.

with P/N 651817R1

1шт.

651817R1

BEARING CUP

2шт.

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

9

3129940R92

SHAFT

SHAFT

2шт.

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

12шт.

9418646

NUT,7/16"-14, G8

16шт.

115314

LOCK WASHER,7/16"

16шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

1шт.

11

3129947R1

SUPPORT

SPARE PART BRACKET

1шт.

25274R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 8

BOLT

4шт.

12

3121579R1

SPACER

PLATE

1шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3шт.

651484R1

SPACER,1" Tube x 13/16"

1шт.

131142

LOCK WASHER,3/4"

3шт.

13

82474C91

SHAFT ASSY.

with 14

2шт.

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

14

82475C91

U-JOINT SPIDER

4шт.

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.
