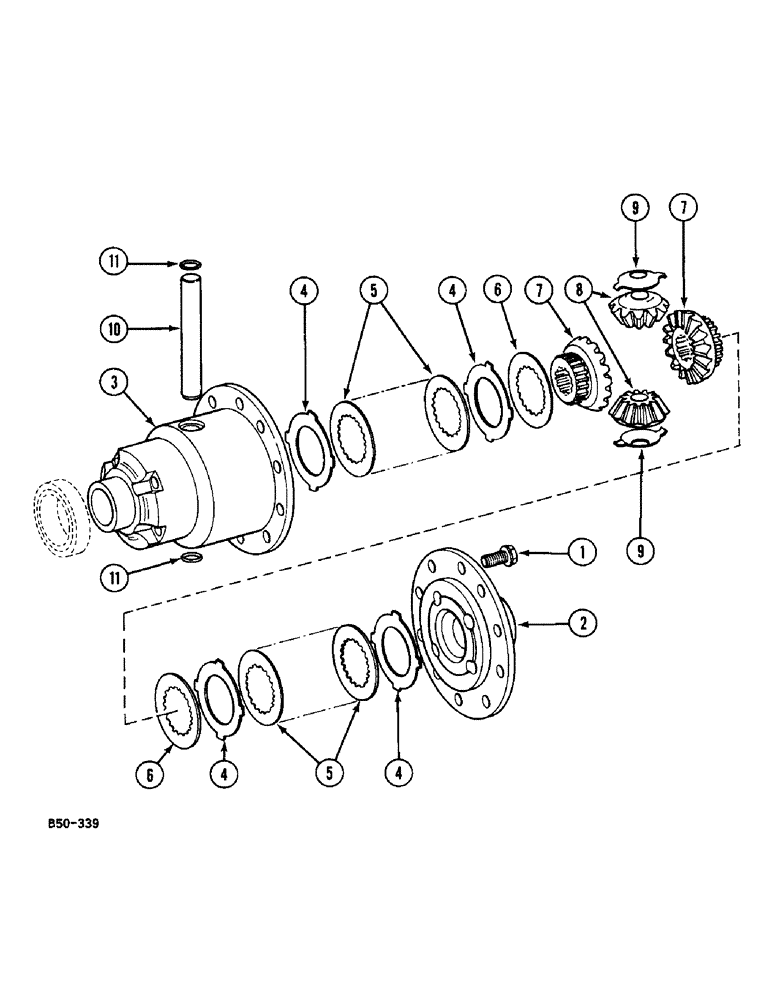

Запчасти Case IH 248 (6-542) - DIFFERENTIAL - 4 WHEEL DRIVE, FOR AXLE "ZF", 258, 585 (06) - POWER TRAIN

1

3230285R1

BOLT

10шт.

2

PLATE, order: P/N 3230282R1

1шт.

3

3230282R1

HOUSING

1шт.

4

3223459R1

SHIM

DISK, 1.3 mm

10шт.

5

3223460R1

DRIVE PLATE

8шт.

6

3223463R1

FIN

PLATE thrust, 2.80 mm

2шт.

6

3223462R1

PLATE, THRUST

PLATE thrust, 2.90 mm

2шт.

6

3223461R1

WASHER

PLATE thrust, 3.00 mm

2шт.

7

3230283R1

GEAR

2шт.

8

3230284R1

GEAR

2шт.

9

3147204R1

WASHER, THRUST

2шт.

10

3216569R1

LARGE PIN

PIN, LARGE AXLE diff.

1шт.

11

3139039R1

RING, SNAP

RING SNAP retaining

2шт.
