(6-526) - AXLE HOUSING UNIVERSAL SHAFT - 4 WHEEL DRIVE, ZF, 258, 585

Запчасти Case IH 248 (6-526) - AXLE HOUSING UNIVERSAL SHAFT - 4 WHEEL DRIVE, ZF, 258, 585 (06) - POWER TRAIN

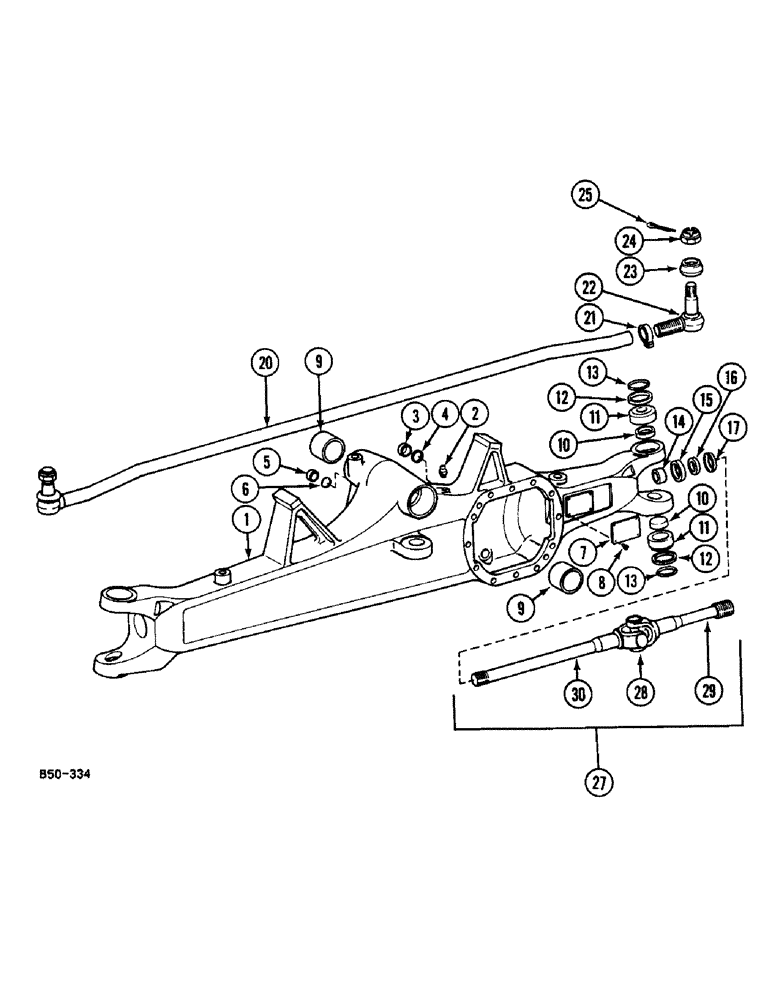

Схема запчастей Case IH 248 - (6-526) - AXLE HOUSING UNIVERSAL SHAFT - 4 WHEEL DRIVE, ZF, 258, 585 (06) - POWER TRAIN
8
1
7
10
12
11
25
4
27
17
22
14
29
24
13
9
20
11
6
2
10
13
16
28
15
30
5
3
21
12
23
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1500229C91

4WD AXLE ASSY

with self locking differential and planetary drive

1шт.

3219939R91

4WD AXLE ASSY

APL 1351

1шт.

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

4шт.

1

1502262C91

HOUSING

1шт.

2

898138H1

BREATHER

1шт.

3

933799R1

PLUG,Hex Soc, M24 x 1.5

1шт.

4

933709

RING

3шт.

5

3216584R1

PLUG

1шт.

6

933222R1

SEALING WASHER,M18 x 22 x 1.5

3шт.

7

PLATE

1шт.

8

PIN

1шт.

9

1502263C1

BUSHING

2шт.

10

3147245R1

PLUG

4шт.

11

3147241R1

BEARING, CUP

4шт.

11

3147242R91

ROLLER BEARING

4шт.

12

3147243R1

CUP WASHER

4шт.

13

3147244R1

O-RING

4шт.

14

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

4шт.

15

3226006R1

OIL SEAL

4шт.

16

3226009R1

SEALING RING

4шт.

17

3226008R1

HOLDER

RETAINER

4шт.

18

not used

1шт.

20

1502268C1

TIE-ROD

TIE ROD with Ref. 21, 22

1шт.

21

CLIP

1шт.

22

1502269C1

BALL JOINT

with Ref. 23

2шт.

1502270C1

NUT

2шт.

23

GASKET

2шт.

24

934683R1

NUT,M18 x 1.5

2шт.

25

923956R1

PIN

cotter

2шт.

26

not used

1шт.

27

SHAFT ASSEMBLY

1шт.

28

3230277R1

SPIDER ASSY.

with bearings

2шт.

3223197R1

RING, SNAP

RING SNAP retaining

8шт.

29

3216599R91

SHAFT

2шт.

30

1502267C1

SHAFT

right

1шт.

30

1502265C1

DRIVE SHAFT

left

1шт.
