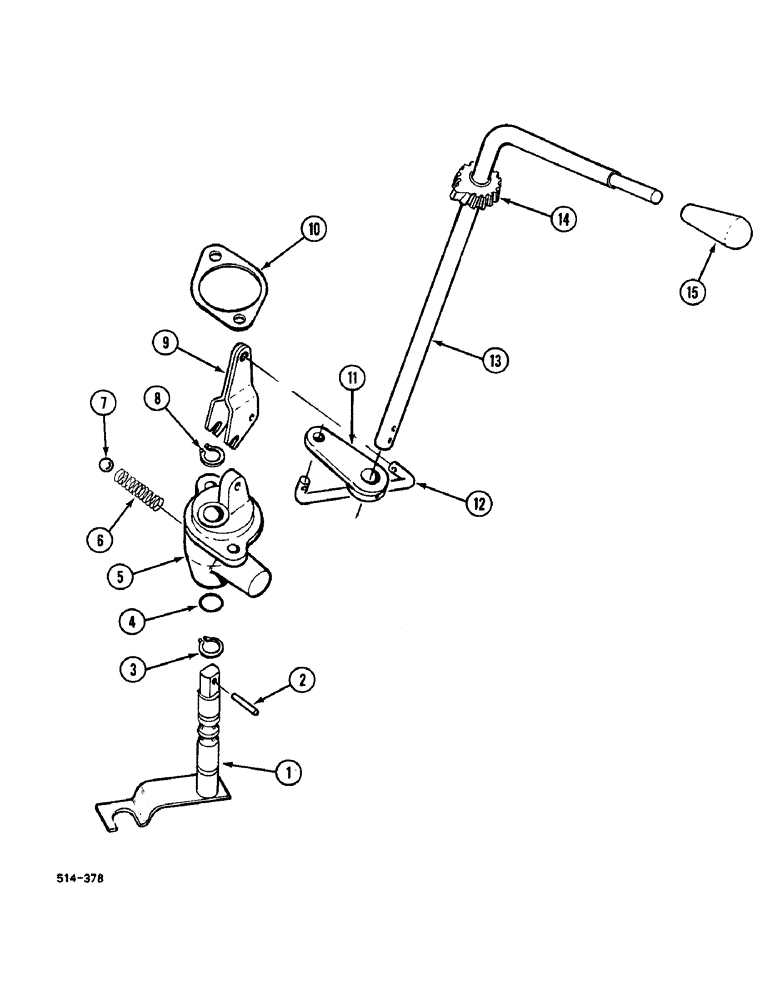

Запчасти Case IH 248 (6-522) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (06) - POWER TRAIN

1

531553R1

LEVER ASSY.

1шт.

2

20702R1

DOWEL,3/16" x 3/4"

1шт.

3

309032R1

SNAP RING,#62, Ext

#62, Ext

1шт.

4

370920R1

O-RING,1/2" ID

1шт.

5

402595R2

SUPPORT

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

2шт.

6

402596R1

SPRING

1шт.

7

17014R1

BALL

1шт.

8

309032R1

SNAP RING,#62, Ext

#62, Ext

1шт.

9

402589R1

LEVER ASSY.

1шт.

22731D

SPLIT PIN/SAFETY PIN

1шт.

16558R1

WASHER

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

10

401623R1

GASKET

1шт.

11

402585R1

ARM

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

12

402588R1

ROD

1шт.

95-11028

WASHER,1/4"

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

13

3121402R1

ROD

1шт.

14

528290R1

GUIDE RING

COLLAR

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

1шт.

15

402584R1

BUTTON

KNOB

1шт.

Q5035

WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

533594R1

DECAL

GRAPHIC product, torque amplifier control, not illustrated

1шт.
