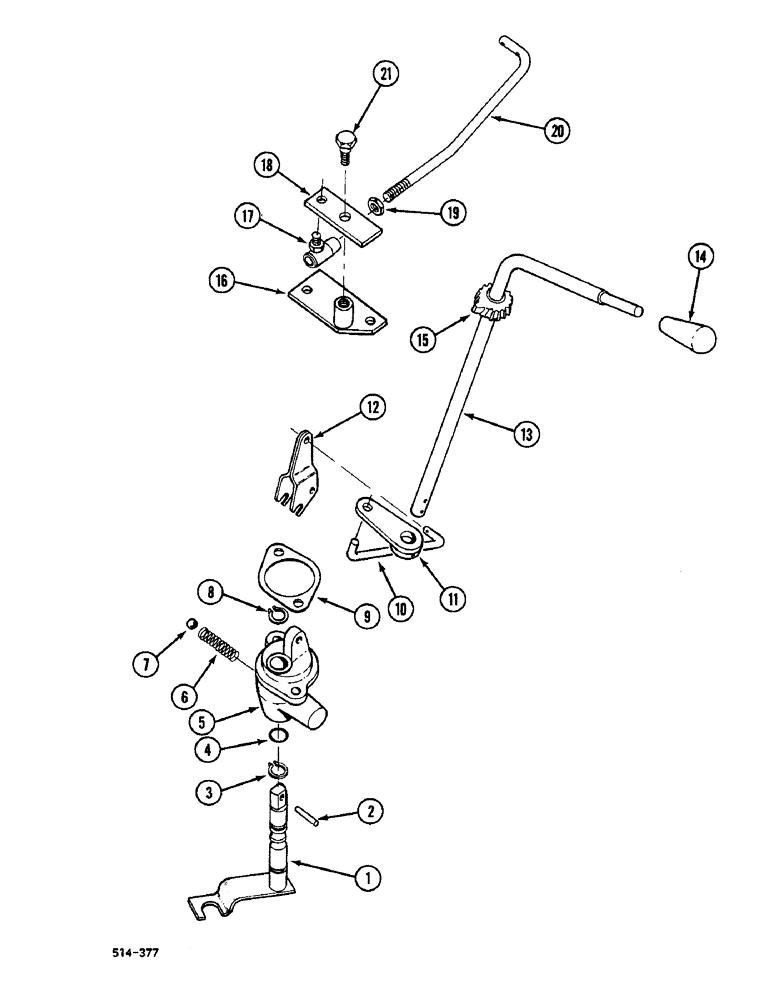

Запчасти Case IH 248 (6-514) - FORWARD AND REVERSE CONTROLS, 248, 258 (06) - POWER TRAIN

1

531553R1

LEVER ASSY.

1шт.

2

19878R1

DOWEL,3/16" x 1"

1шт.

3

309032R1

SNAP RING,#62, Ext

#62, Ext

1шт.

4

370920R1

O-RING,1/2" ID

1шт.

5

402595R2

SUPPORT

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

2шт.

6

402596R1

SPRING

1шт.

7

17014R1

BALL

1шт.

8

309032R1

SNAP RING,#62, Ext

#62, Ext

1шт.

9

401623R1

GASKET

1шт.

10(a)

98803C1

ROD

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

10(b)

402588R1

ROD

1шт.

95-11028

WASHER,1/4"

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

11(a)

98858C1

ARM ASSY.

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

11(b)

402585R1

ARM

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

12

1282951C1

LEVER

BELLCRANK

1шт.

22731D

SPLIT PIN/SAFETY PIN

1шт.

16558R1

WASHER

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

13

3121402R1

ROD

1шт.

14

402584R1

BUTTON

KNOB

1шт.

Q5035

WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

15

528290R1

GUIDE RING

COLLAR

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

1шт.

16

528942R1

PLATE ASSY.

1шт.

17

442720

BALL JOINT

JOINT ball

1шт.

17

310673R1

BALL JOINT

1шт.

17

310673R91

BALL JOINT

optional

1шт.

18

1282952C1

STRIP

1шт.

19

425-115

NUT,5/16"-24, G5

2шт.

20

528946R1

ROD

ROD

1шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

21

399509R1

BOLT,Shldr, Hex, 3/8" - 16 x 1", W/ Wshr

BOLT

1шт.

23408R1

WASHER

1шт.

21756R1

WASHER

1шт.
