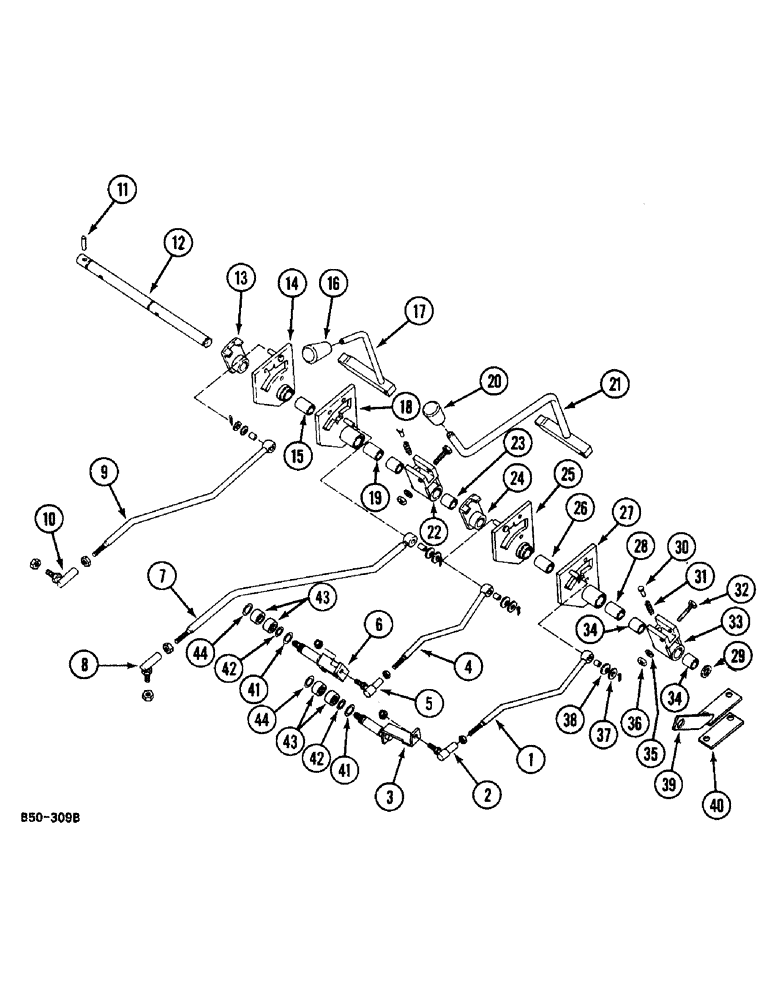

Запчасти Case IH 248 (6-506) - TRANSMISSION CONTROL - EXTERNAL (06) - POWER TRAIN

1

3129228R91

ROD ASSY.

range shift front

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

2

1500497C1

BALL JOINT

1шт.

1500536C1

JAM NUT

1шт.

231-4617

LOCK NUT,7/16"-20, GB

1шт.

702455

NUT

optional

1шт.

3

1289946C1

ARM

1шт.

19605R1

LOCK NUT,1/2"-13, GB

1шт.

4

3129232R91

ROD ASSY.

range shift rear

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

5

1500497C1

BALL JOINT

1шт.

1500536C1

JAM NUT

1шт.

231-4617

LOCK NUT,7/16"-20, GB

1шт.

702455R1

LOCK NUT

lock, optional

1шт.

6

1289948C1

ARM

1шт.

19605R1

LOCK NUT,1/2"-13, GB

1шт.

7(a)

3129226R91

ROD ASSY.

3rd and 4th speed, speed train type B and E

1шт.

7(b)

3129224R91

ROD

ASSEMBLY, 3rd and 4th speed, speed train type A and D

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

8

653867C1

BALL JOINT

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

Q3641

WASHER

2шт.

3048059R91

LOCK NUT

1шт.

9

3129222R91

ROD ASSY.

1st and 2nd speed

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

10

653867C1

BALL JOINT

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

Q3641

WASHER

2шт.

3048059R91

LOCK NUT

1шт.

11

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

3шт.

12

3129155R2

SHAFT

SHAFT

1шт.

13

3129218R2

PLATE

GATE ASSEMBLY

1шт.

14

3129211R91

LEVER ASSY.

1st and 2nd speed, with 15

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

15

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

16

3129267R1

BALL KNOB

models 385, 485, 585 tractor

1шт.

16

3129420R3

BUTTON

KNOB speed lever, model 485 and 585 tractor

1шт.

17

3129265R2

LEVER

speed, models 385, 485, 585 tractor

1шт.

17

1283431C1

LEVER

speed, model 248 and 258 tractor

1шт.

18(a)

3129217R91

LEVER ASSY.

3rd and 4th speed, speed train type B and E, with 19

1шт.

18(b)

3129216R91

LEVER ASSY.

3rd and 4th speed, speed train type A and D

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

19

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

20

3129267R1

BALL KNOB

models 385, 485, 585 tractor

1шт.

20

3129412R2

HANDLE

KNOB range lever, model 248 and 258 tractor

1шт.

21

3129268R2

LEVER ASSY.

range, models 385, 485, 585 tractor

1шт.

21

1283429C2

LEVER ASSY.

range, model 248 and 258 tractor

1шт.

22

3129214R91

HOUSING

HOUSING ASSEMBLY, with 23

1шт.

23

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

24

98573C1

LEVER

GATE ASSEMBLY

1шт.

25

3129210R92

LEVER

ASSEMBLY, range rear, with 26

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

26

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

27

3129209R91

LEVER ASSY.

range front, with 28

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

28

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

29

454331R1

SNAP RING,#87, Ext

2шт.

615192R1

WASHER

1шт.

30

22938R1

HEADED PIN,5/16" x 1/2"

2шт.

31

71486C1

SPRING

2шт.

32

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

2шт.

33

3129214R92

HOUSING ASSY.

with Ref. 34

1шт.

34

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

35

95-11041

WASHER,3/8"

2шт.

36

9413979

LOCK NUT,3/8"-16, GC

lock

2шт.

37

Q3641

WASHER

4шт.

38

83723R1

WAVE WASHER

4шт.

39

1287659C1

SUPPORT

BRACKET

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

BOLT

2шт.

492-11062

BEARING WASHER,5/8"

2шт.

40

1287660C1

PLATE

1шт.

41

21018R1

WASHER

SHIM, 0.030 inch

2шт.

42

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

43

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

4шт.

44

21018R1

WASHER

SHIM, 0.030 inch

1шт.

44

16066R1

WASHER

SHIM, 0.060 inch

1шт.
