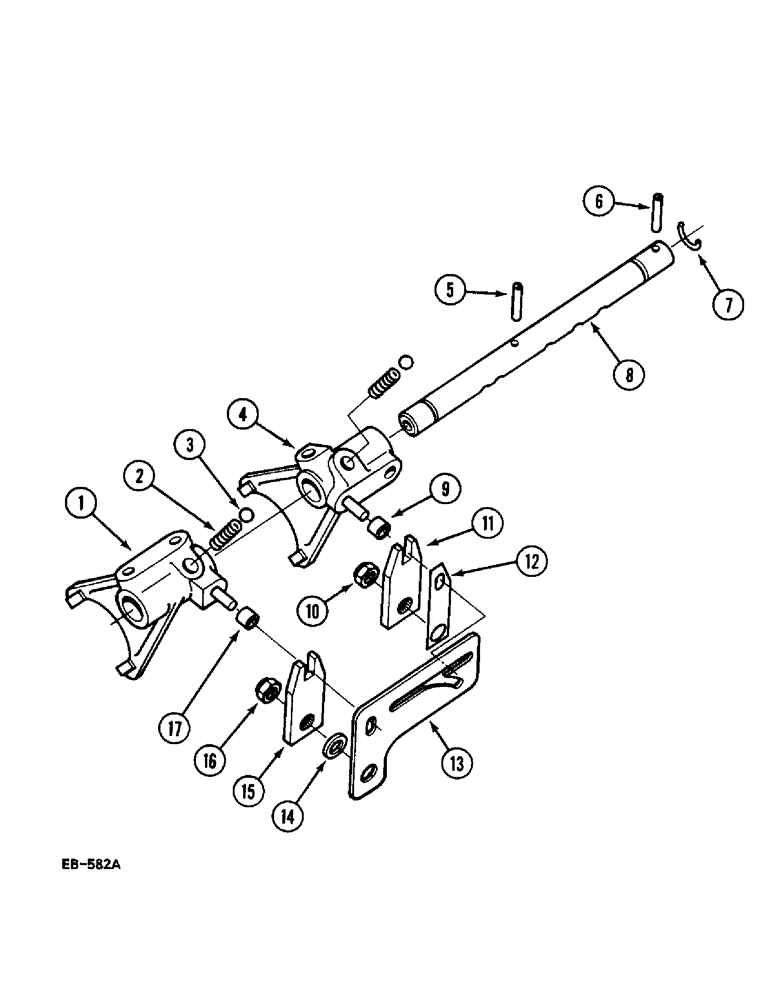

Запчасти Case IH 248 (6-496) - GEAR SHIFT MECHANISM - RANGE TRANSMISSION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1286428C1
FORK
1шт.
2
103062C1
SPRING
2шт.
3
17013R1
BALL,13/32" Dia
2шт.
4
1286416C1
FORK
1шт.
5
20122R1
PIN,1/4" x 1 1/2", Coiled
1шт.
6
19885R1
PIN,1/4" x 1 3/8", Coiled
1шт.
7
148501C1
RING, SNAP
RING SNAP retaining
2шт.
8
1286415C1
RAIL
1шт.
9
1286423C1
BUSHING
1шт.
10
19605R1
LOCK NUT,1/2"-13, GB
1шт.
11
1286421R1
ARM
1шт.
12
1286444C2
STRIP
1шт.
13
1286419C1
PLATE, LOCKING
1шт.
14
21018R1
WASHER
.030 inch
1шт.
16066R1
WASHER
.060 inch, optional
1шт.
15
1286421C1
ARM
1шт.
16
19605R1
LOCK NUT,1/2"-13, GB
1шт.
17
1286423C1
BUSHING
1шт.
1288283C1
PACKAGE,SERVICE
models 385: -635, 485: -8037 and 585: -11178 tractor, consists of: P/N 1286428C1 thru 377952R1, not illustrated
1шт.
1286428C1
FORK
models 385, 485, 585 tractor, not illustrated
1шт.
1286416C1
FORK
rear, models 385, 485, 585 tractor, not illustrated
1шт.
1286415C1
RAIL
models 385, 485, 585 tractor, not illustrated
1шт.
148501C1
RING, SNAP
RING SNAP retaining, models 385, 485, 585 tractor, not illustrated
2шт.
19885R1
PIN,1/4" x 1 3/8", Coiled
Models 385, 485, 585 tractor, Not Illustrated
1шт.
20122R1
PIN,1/4" x 1 1/2", Coiled
Models 385, 485, 585 tractor, Not illustrated
1шт.
103062C1
SPRING
models 385, 485, 585 tractor, not illustrated
2шт.
17013R1
BALL,13/32" Dia
Models 385, 485, 585 tractor, Not illustrated
2шт.
1286421C1
ARM
models 385, 485, 585 tractor, not illustrated
2шт.
1286423C1
BUSHING
models 385, 485, 585 tractor, not illustrated
2шт.
1286419C1
PLATE, LOCKING
models 385, 485, 585 tractor, not illustrated
1шт.
1286444C2
STRIP
models 385, 485, 585 tractor, not illustrated
1шт.
21018R1
WASHER
SHIM, .030 inch, models 385, 485, 585 tractor, not illustrated
10шт.
19605R1
LOCK NUT,1/2"-13, GB
models 385, 485, 585 tractor, not illustrated
2шт.
377952R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
models 385, 485, 585 tractor, not illustrated
2шт.
Выбрано товаров: 36
