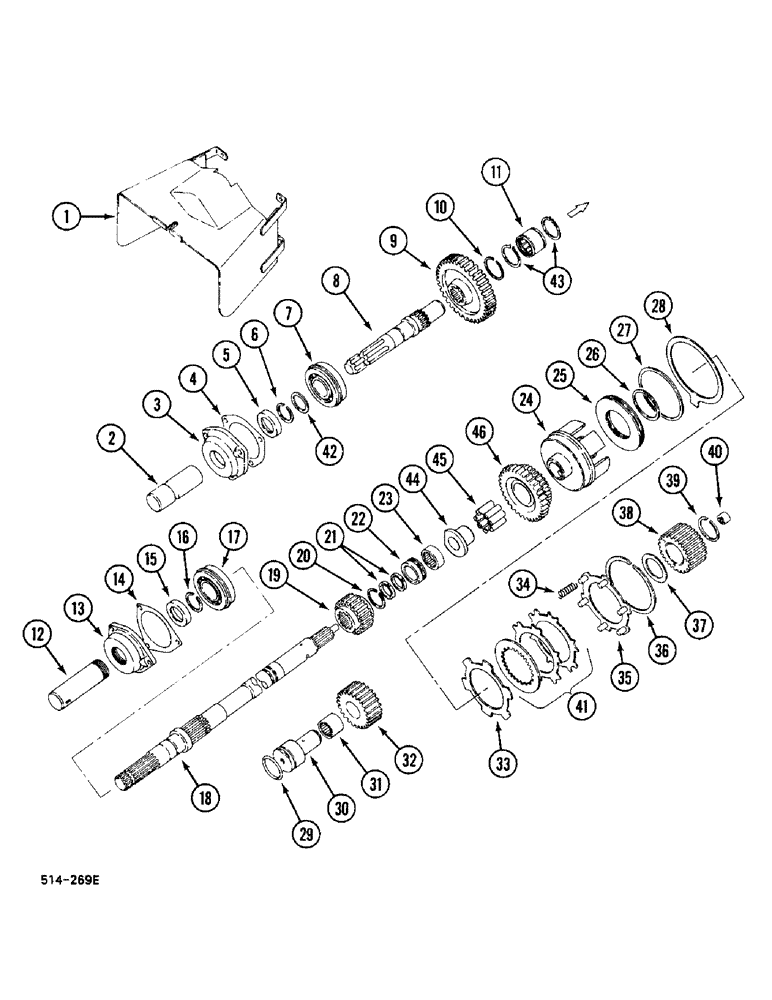

Запчасти Case IH 248 (6-472) - INDEPENDENT POWER TAKE OFF - DUAL SPEED (06) - POWER TRAIN

1

401734R1

GUARD ASSY.

SHIELD

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3054841R2

TUBE

CAP

1шт.

3

1500086C1

FLANGED BEARING

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R3

GASKET

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

1шт.

6

607186R1

SNAP RING,#156, Ext

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

ball, models 258, 385, 485, 585 tractor

1шт.

7

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

models 258, 385, 485, 585 tractor

1шт.

7

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

ball, models 258, 385, 485, 585 tractor

1шт.

7

67648C91

BEARING

ball, models 258, 385, 485, 585 tractor

1шт.

7

842469R91

BALL BEARING

ball, models 258, 385, 485, 585 tractor

1шт.

7

93167C1

BALL BEARING,40 mm ID x 96.5 mm OD x 23 mm

ball, optional, used with P/N 66192C1, models 258, 385, 485, 585 tractor

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

models 248, 385, 485 tractor

1шт.

7

533615R91

BALL BEARING

bearing ball, models 248, 385, 485 tractor

1шт.

7

71268C91

BALL BEARING

bearing ball, models 248, 385, 485 tractor

1шт.

7

67655C91

BALL BEARING

bearing ball, models 248, 385, 485 tractor

1шт.

7

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

models 248, 385, 485 tractor

1шт.

7

85657H

BEARING, BALL

optional, used with 404237R1, models 248, 385, 485 tractor

1шт.

8

1500087C1

SHAFT

upper

1шт.

9

404237R1

PINION

GEAR, 36 T, models 248, 385, 485 tractor

1шт.

9

66192C1

GEAR

driven, 38 T, models 248, 385, 485 tractor

1шт.

9

66192C1

GEAR

driven, 38 T, driven, model 585 tractor

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

retaining

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

caged

1шт.

12

406808R1

TUBE

ASSEMBLY, lower

1шт.

13

1500086C1

FLANGED BEARING

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

14

399843R3

GASKET

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

1шт.

16

607186R1

SNAP RING,#156, Ext

1шт.

17

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

models 248, 385, 485 tractor

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

models 248, 385, 485 tractor

1шт.

17

533615R91

BALL BEARING

BEARING ball, models 248, 385, 485 tractor

1шт.

17

71268C91

BALL BEARING

BEARING ball, models 248, 385, 485 tractor

1шт.

17

67655C91

BALL BEARING

BEARING ball, models 248, 385, 485 tractor

1шт.

17

85657H

BEARING, BALL

optional, used with P/N 404233R1, models 248, 385, 485 tractor

1шт.

17

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

ball, models 258, 385, 485, 585 tractor

1шт.

17

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

models 258, 385, 485, 585 tractor

1шт.

17

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

ball, models 258, 385, 485, 585 tractor

1шт.

17

67648C91

BEARING

ball, models 258, 385, 485, 585 tractor

1шт.

17

842469R91

BALL BEARING

ball, models 258, 385, 485, 585 tractor

1шт.

17

93167C1

BALL BEARING,40 mm ID x 96.5 mm OD x 23 mm

ball, optional, used with P/N 404232R1, models 258, 385, 485, 585 tractor

1шт.

18(a)

99466C1

SHAFT

ASSEMBLY 6 spline, 1000 rpm

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

18(a)

99462C1

SHAFT

ASSEMBLY 21 spline, 1000 rpm

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

18(b)

66180C2

SHAFT ASSY.

21 spline, 1000 rpm

1шт.

18(b)

66485C1

SHAFT ASSY.

6 spline, 1000 rpm

1шт.

19

404233R1

PINION

GEAR, 22 T, models 248, 385, 485 tractor

1шт.

19

404232R1

GEAR

21 T, models 258, 385, 485, 585 tractor

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

retaining

1шт.

21(a)

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

sealing

2шт.

For single acting with self sealing screwed coupling, first bank

1шт.

21(b)

166972R1

RING

sealing

2шт.

22(a)

93506C1

BUSHING

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

22(b)

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

1шт.

23(a)

93500C91

NEEDLE BEARING,37.033 mm ID x 52.0065 mm OD x 22.06 mm

needle

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

93501C1

BEARING needle

1шт.

23(b)

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

1шт.

24(a)

1335402C1

CUP

2 wheel drive tractors

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

24

82609C1

CUP

4 wheel drive tractors, models 258, 485, 585 tractor

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

24(b)

3125149R1

CUP

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

25

401722R1

PISTON

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

sealing, inner

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

sealing, outer

1шт.

28(a)

82349C1

RING

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

28(b)

404490R1

RING,140.25mm ID x 4.5mm Thk

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

30

401726R1

SHAFT

idler

1шт.

31

570450R1

BEARING

needle

1шт.

31

528105R91

BEARING, NEEDLE

optional

1шт.

32

401727R1

PINION

GEAR idler, 24 T

1шт.

33

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

1шт.

34

66182C1

SPRING

6шт.

35

66186C92

PLATE ASSY.

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

36

401720R1

CIRCLIP

retaining

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

66183C2

HUB ASSY.,45T

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

retaining

1шт.

40(a)

82351C91

NEEDLE BEARING

needle

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

40(b)

535325R91

BEARING needle

1шт.

40(b)

538467R91

BEARING, NEEDLE

optional

1шт.

41

66193C91

PACKAGE

clutch plate service, consists of: 5 discs, 8 plates

1шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

sealing

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

sealing

1шт.

66182C1

SPRING

6шт.

42

1500085C1

WASHER

1шт.

43

202307R1

SNAP RING,#206, Ext

2шт.

44

82499C1

BUSHING

1шт.

45

82667C91

NEEDLE BEARING,44.99mm ID x 59.01mm OD x 31.63mm W

needle

1шт.

46

82666C1

GEAR

1шт.

1093096R1

PRODUCT GRAPHIC

540/1000, models 248, 385, 485 tractor, not illustrated

1шт.

1093098R1

PRODUCT GRAPHIC

540/1000, model 258 and 585 tractor, not illustrated

1шт.

1093230R1

PRODUCT GRAPHIC

speed warning, model 248 and 258 tractor, not illustrated

1шт.
