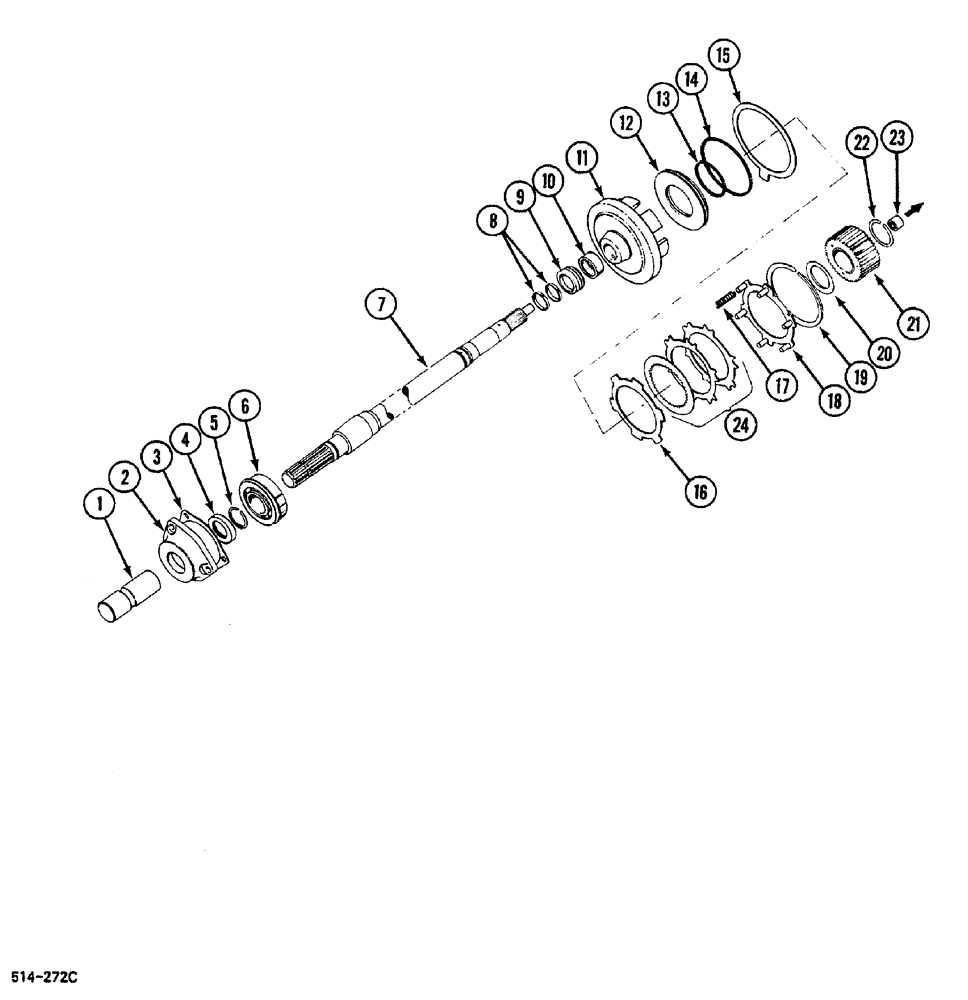

Запчасти Case IH 248 (6-456) - INDEPENDENT POWER TAKE OFF - SINGLE SPEED -, LOWER OUTPUT SHAFT, 248 (06) - POWER TRAIN

1

not used

1шт.

2

1500086C1

FLANGED BEARING

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

3

399843R3

GASKET

1шт.

4

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

1шт.

5

607186R1

SNAP RING,#156, Ext

1шт.

6

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

1шт.

6

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

1шт.

6

533615R91

BALL BEARING

BEARING ball

1шт.

6

71268C91

BALL BEARING

BEARING ball

1шт.

6

67655C91

BALL BEARING

BEARING ball

1шт.

6

85657H

BEARING, BALL

optional

1шт.

7(a)

99467C1

SHAFT

ASSEMBLY

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

7(b)

66458C1

SHAFT ASSY.

1шт.

8(a)

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

sealing

2шт.

8(b)

166972R1

RING

sealing

2шт.

9(a)

93506C1

BUSHING

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

9(b)

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

1шт.

10(a)

93500C91

NEEDLE BEARING,37.033 mm ID x 52.0065 mm OD x 22.06 mm

needle

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

10(b)

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

1шт.

11(a)

1335402C1

CUP

2 wheel drive tractors

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

82609C1

CUP

4 wheel drive tractors

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

11(b)

3125149R1

CUP

version without side drive PTO

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

12

401722R1

PISTON

1шт.

13

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

sealing, inner

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

outer

1шт.

15(a)

82349C1

RING

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

15(b)

404490R1

RING,140.25mm ID x 4.5mm Thk

1шт.

16

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

1шт.

17

66182C1

SPRING

6шт.

18

66186C91

PLATE ASSY.

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

19

401720R1

CIRCLIP

retaining

1шт.

20

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

21

66183C2

HUB ASSY.,45T

1шт.

22

401756R1

SNAP RING,#206, 1.936", Ext

retaining

1шт.

23(a)

82351C91

NEEDLE BEARING

needle

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

23(b)

538467R91

BEARING, NEEDLE

1шт.

23(b)

533325R91

BEARING, NEEDLE

optional

1шт.

24

66193C91

PACKAGE

clutch plate service, consists of: 5 discs, 8 plates

1шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

sealing

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

sealing

1шт.

66182C1

SPRING

6шт.

1093230R1

PRODUCT GRAPHIC

speed warning, not illustrated

1шт.
