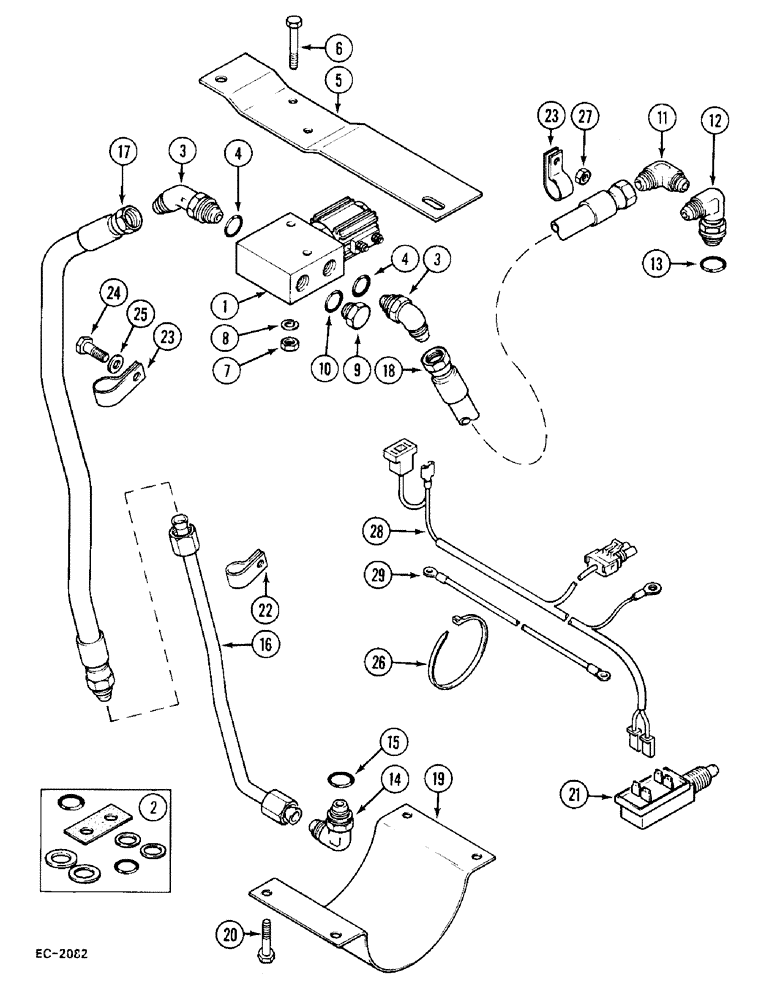

Запчасти Case IH 248 (6-452) - TORQUE AMPLIFIER DUMP VALVE (06) - POWER TRAIN

98808C91

KIT

PACKAGE

1шт.

1

1272538C91

VALVE

ASSEMBLY

1шт.

2

1272698C1

PACKAGE

seals

1шт.

3

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

45°

2шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

1288489C1

BRACKET

SUPPORT

1шт.

6

30365R1

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

Hex, M6 x 40, 8.8

2шт.

7

30208R1

NUT,M6, Cl 10

2шт.

8

933833R1

LOCK WASHER,M6

2шт.

9

9410358

PLUG

1шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

585694R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

12

1288414C1

ELBOW

ELBOW

1шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

3120107R1

ELBOW

1шт.

15

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

98840C1

PIPE

TUBE

1шт.

17

98839C1

HOSE,9.65 mm ID x 560.00 mm, SAE 100 R6

1шт.

18

99833C1

HOSE

1шт.

19

1288413C1

GUARD

SHIELD

1шт.

20

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

21

91905C1

SWITCH

1шт.

22

299609C1

CLAMP

1шт.

23

299615C1

CLAMP

2шт.

24

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

1шт.

25

95-11041

WASHER,3/8"

2шт.

26

306132C1

CABLE TIE,14.5" L

CABLE STRAP

6шт.

27

425-115

NUT,5/16"-24, G5

1шт.

28

91914C1

HARNESS

1шт.

29

91970C1

ELECTRICAL WIRE

WIRE CABLE

1шт.
