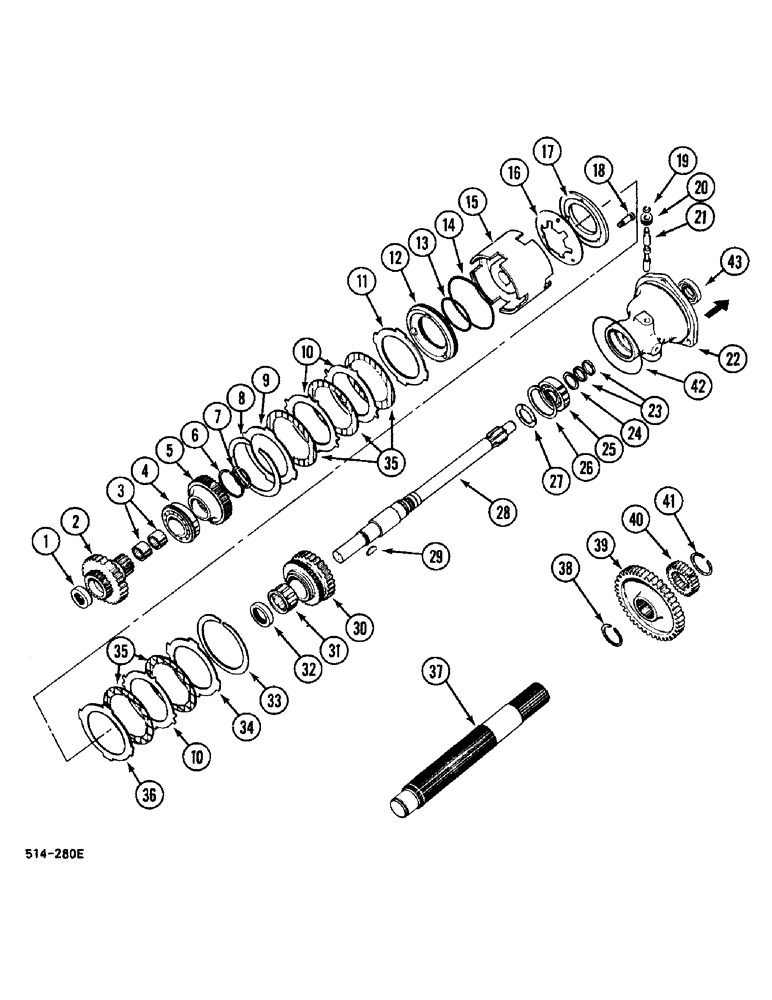

Запчасти Case IH 248 (6-442) - TWO SPEED POWER SHIFT (06) - POWER TRAIN

1

3118322R91

BEARING, NEEDLE

models 385, 485, 585 tractor

1шт.

2

3118321R2

PINION

GEAR 28 T

1шт.

3

550839R91

BEARING, NEEDLE

2шт.

3

531436R91

NEEDLE BEARING

BEARING needle, clutch shaft, optional

2шт.

4

70126C91

BALL BEARING

BEARING ball

1шт.

4

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

4

42347D

BALL BEARING

BEARING ball

1шт.

4

398323R91

BALL BEARING

BEARING ball

1шт.

4

3066862R91

BALL BEARING

BEARING ball

1шт.

4

3067617R91

BEARING, BALL

1шт.

4

3066860R91

BALL BEARING

BEARING ball, drive gear, optional

1шт.

5

404199R3

SPROCKET ASSY.

CARRIER

1шт.

6

336000R1

SNAP RING,#175, 1.640", Ext

retaining

1шт.

7

583976R1

SNAP RING,#125, 1.179", Ext

RING retaining

1шт.

8

401720R1

CIRCLIP

retaining, models 385, 485, 585 tractor

1шт.

9

1502340C1

PLATE

clutch backing

1шт.

10

534936R93

KIT

PACKAGE repair, field, consists of: 6 plates and 4 plates

1шт.

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

sealing

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

sealing

1шт.

11

402572R1

PLATE

piston backing

1шт.

12

402570R1

PISTON

1шт.

13

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

sealing, inner

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

sealing, outer

1шт.

15

1502339C1

HOUSING

CUP

1шт.

16

402574R1

BELLEVILLE WASHER

Belleville

3шт.

17

402573R1

PLATE

pressure

1шт.

18

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT

3шт.

65240C1

SQUARE NUT

3шт.

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

3шт.

19

896045R1

SNAP RING,#37, Ext

1шт.

20

531539R1

COLLAR

1шт.

21

536975R1

STEM

torque amplifier control

1шт.

22(a)

98555C1

HOUSING

CAGE

1шт.

22

531540R5

CAGE

models 385, 485, 585 tractor

1шт.

23(a)

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

2шт.

For single acting with self sealing screwed coupling, first bank

1шт.

23(b)

406275R1

RING

models 385, 485, 585 tractor

2шт.

23

406275R1

RING

model 485 tractor

2шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

25

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

1шт.

25

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

1шт.

25

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

25

71270C91

BEARING, BALL

clutch shaft, optional

1шт.

26

377911R1

RING, SNAP

RING SNAP retaining

1шт.

27

402562R1

THRUST WASHER

1шт.

28(a)

92757C91

SHAFT

1шт.

28(b)

1502173C91

SHAFT ASSY.

clutch, models 385, 485, 585 tractor

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

optional

1шт.

29

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

30

402563R2

PINION

GEAR ASSEMBLY, drive

1шт.

31

402566R1

BEARING ASSY

CLUTCH ASSEMBLY

1шт.

32

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

1шт.

33

401720R1

CIRCLIP

retaining

1шт.

34

402569R1

PLATE

clutch backing

1шт.

35

534936R93

KIT

PACKAGE repair, models 385, 485, 585 tractor

1шт.

36

402572R1

PLATE

piston backing

1шт.

37

404104R2

COUNTERSHAFT

1шт.

38

381486R1

SNAP RING,#187, 1.759", Ext

retaining

1шт.

39

404105R1

PINION

GEAR driven, 42 T, models 385, 485, 585 tractor

1шт.

40

404106R1

GEAR

pump driven, 27 T, models 385, 485, 585 tractor

1шт.

41

381486R1

SNAP RING,#187, 1.759", Ext

retaining

1шт.

42

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

43

SEAL oil, order: 1277488C2

1шт.

1502338C91

SHIM KIT

not illustrated

1шт.

70021C1

SHIM

0.356 mm, not illustrated

2шт.

70022C1

SHIM,98.6mm ID x 125.98mm OD x 0.64mm Thk

0.610 mm, not illustrated

2шт.

70023C1

SHIM,98.6mm ID x 125.98mm OD x 0.89mm Thk

0.914 mm, not illustrated

2шт.

1277488C2

SEAL KIT

PACKAGE seals, consists of: 2 sleeves, 1 clutch shaft oil seal, not illustrated

1шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

not illustrated

1шт.

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

not illustrated

1шт.
